User Manual for Meade LX850 GoTo EQ Mount with Starlock Click to enlarge the picture
Contents of the user manual for the Meade LX850 GoTo EQ Mount with
- Product category: Mounts Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Mounts
 |
User manual for the Meade LX850 GoTo EQ Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|

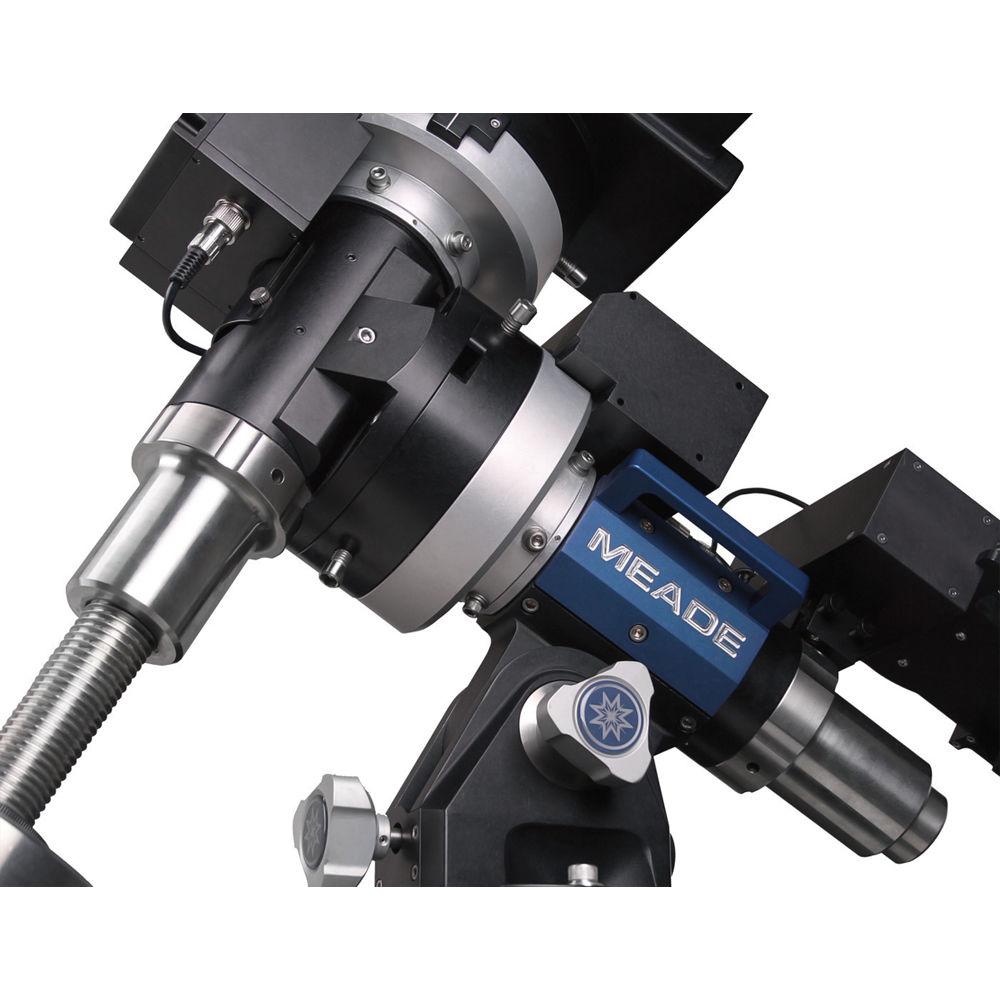

Product description Meade Instruments designed and engineered the LX850 GoTo EQ Mount to be a precise platform for long-duration observation or astrophotography sessions. Built to handle their heaviest optical tube assemblies (OTAs) and gear, the mount is made of stainless steel and aluminum with a total payload capacity of 90 pounds. A 26-pound counterweight is included, with the capability to add more if it's required, and a large Losmandy-style dovetail saddle specifically designed for heavy OTAs. The LX850 is offered here without a tripod for users who already have large tripods or permanent piers and are interested in upgrading their mount.Multiple technologies work together to put this mounting system above the standard GoTo mount. Meade outfitted it with a built-in GPS receiver and a time chip, so the mount can automatically determine its location, date, and time when it's turned on. This information is sent to the StarLock system, which uses two digital cameras built into an 80mm f/5 refractor OTA. The cameras take wide-field photos of the night sky and compare them with an internal database to automatically align the scope. During observation or imaging sessions, the StarLock system continuously checks its tracking and adjusts as needed, sending the data to the Smart Mount system, which learns the tracking errors and adjusts itself for the future.The brain of the mount is Meade's iconic AutoStar II computer controller. This handheld unit has an internal database of over 144,000 objects from the Moon and planets, to galaxies and nebulae. Coupled with the StarLock system, the AutoStar's tracking accuracy is an impressive ±1 arcsecond. It can calculate future events like sunrises and meteor showers, and predict solar and lunar eclipses for the next 100 years. Once set up and running, the AutoStar II can take you on guided tours of the best objects visible above, including audio tours that can be heard from the internal speaker. - Mount
-
- Motorized German equatorial
- 90-pound payload capacity
- Made of machined stainless steel and aluminum
- Dual-axis fine manual adjustment controls when not using motors
- Internal GPS receiver and time chip
- Automatically obtains position, day, date, and time
- Requires no user input during setup
- Motors and Gears
- Roller bearings on each axis for smooth tracking and reduced vibrations
- 1.75" stainless steel right ascension shaft
- 5.8" main gears

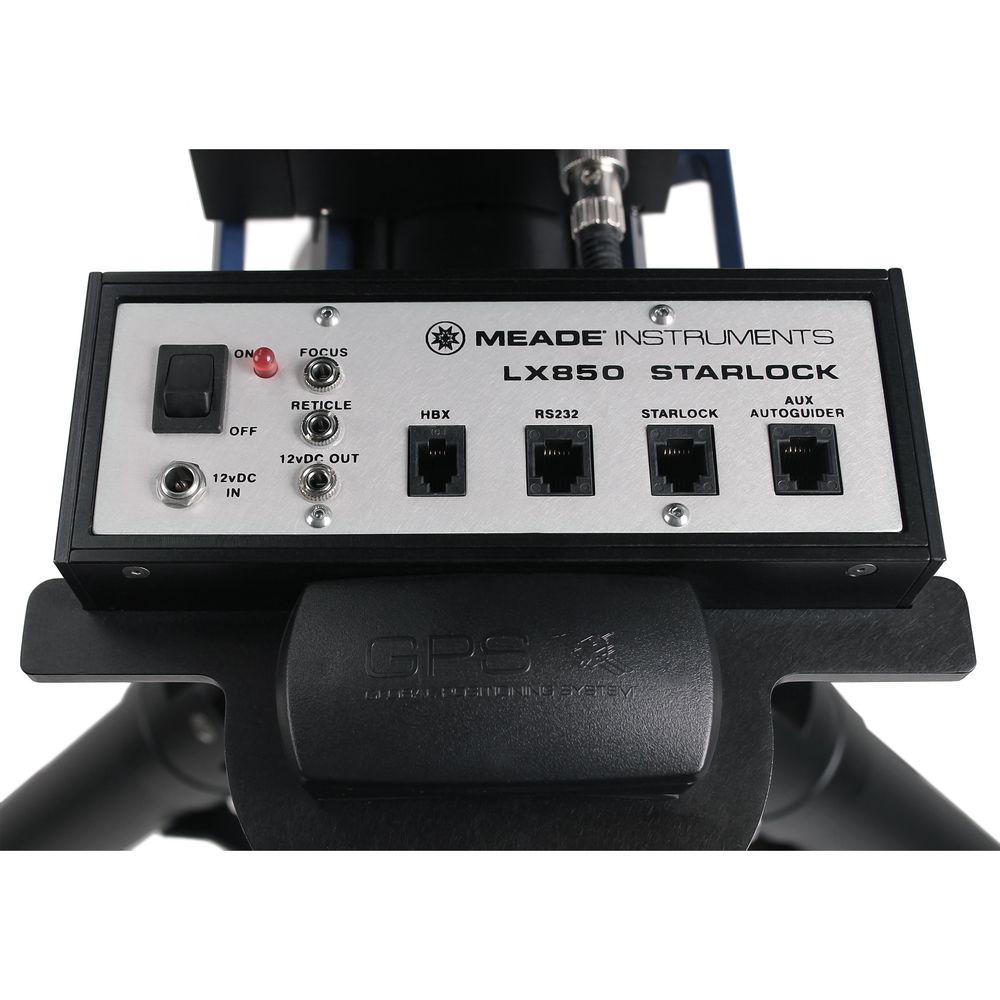

- Interface panel
- 12 VDC power in
- 12 VDC power out
Power On/Off - Electric focuser power port
- Illuminated reticle power port
- Controller RJ-45 connection port
- RS232 computer connection port
- StarLock connection port
- Secondary autoguider connection port
- Includes a 26-pound stainless steel counterweight
- Large Losmandy-style dovetail saddle designed to handle heavier OTAs and gear
- Advanced Technology
-
- StarLock system
- Dual digital cameras built into an 80mm f/5 refractor telescope
- Integrated alignment and guiding system
- Uses the GPS and time chip to determine location and time
- Takes a picture of the night sky and compares it to internal database
- Determines alignment by taking multiple pictures and aligning to multiple stars
- During long observation or astrophotography sessions it continuously checks tracking and alignment and automatically corrects tracking errors
- Smart Mount
- Improves the pointing accuracy of the computer controller
- Enables the AutoStar II to automatically identify and correct systematic pointing errors
- AutoStar II Computer Controller
-
- Full GoTo capabilities
- Intuitive menu-driven interface
- 144,000-object database
- Planets
- Stars
- Galaxies
- Nebulae
- Comets
- Satellites
- Common constellations
- Moon features like landing points, mountains, craters, and lakes
- User-defined objects
- Tracking accuracy: ±1 arcsec
- Periodic Error Correction (PEC) and Permanent Periodic Error Correction (PPEC) train out tracking errors for more precision
- Multiple slew speeds:
- 1x
- 2x
- 8x
- 16x
- 64x, sidereal
- 0.25°/sec
- 0.5°/sec
- 1°/sec
- 3°/sec (max)
- Tracking Rates:
- Sidereal
- Lunar
- Custom: select from 2000 incremental rates
- Calculate future dates and times for events like:
- Sunrises and sunsets
- Moonrises, moonsets, and Moon phases
- Solar and lunar eclipses for the next 100 years
- Meteor showers
- Equinoxes and solstices
- Guided tours available based on when and where it is set up
- Guided audio tours via built-in speaker
- Physical properties
- Two-line display with red backlight
- Red backlit control buttons
- Built-in speaker
- Tripod Required
-
- The mount is offered here without a tripod
- Intended for users who wish to upgrade their mount and still use their own tripod or pier
UPC: 709942600674 In the Box Meade LX850 GoTo EQ Mount with Starlock (Mount Only) StarLock Autoguider System AutoStar II Hand Controller 12VDC Power Supply 26 lb Stainless Steel Counterweight for LX850 Telescope yztarzuvdedxedce Vibration Isolation Pads AutoStar Suite Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX850 GoTo EQ Mount with Starlock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade LX850 Specs | Mount Type | German equatorial | | Load Capacity | 90.0 lb / 40.8 kg | | Motor | 2 x DC servos, one per axis | | GO-TO Capability | Yes. AutoStar II computer hand controller | | Altitude / Latitude Adjustment | Not specified by manufacturer | | Mounting | Losmandy-style dovetail saddle | | Polar Axis Scope | None | | Includes Tripod/Pier | No | | Power Source | 12 VDC power supply | | Weight | Mount: 55.0 lb / 24.9 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
