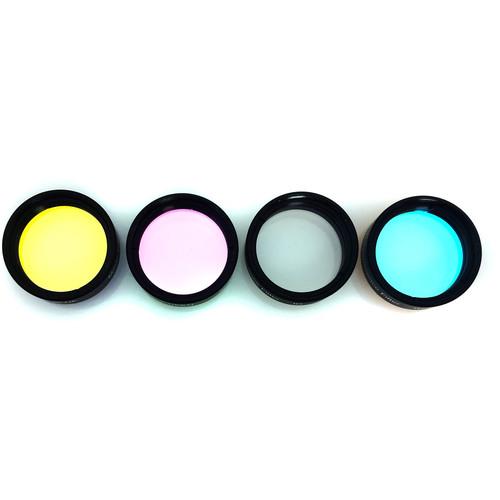

User Manual for Meade RGB IR Imaging Filter Set Click to enlarge the picture
Contents of the user manual for the Meade RGB IR Imaging Filter Set
- Product category: Astrophotography Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Astrophotography
|
User manual for the Meade RGB IR Imaging Filter Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Designed and engineered specifically for use with monochrome imaging cameras, the Meade Instruments RGB/IR Imaging Filter Set gives you three 1.25" filters: one in each of the three primary colors, plus an infrared (IR) blocking filter. This filter set enables tri-color imaging using the individual red, green, and blue filters; and the three resulting images, when stacked via image processing software, form a color image of your subject. The IR filter prevents infrared light from reaching the camera's sensor resulting in clearer and sharper images. Each filter is parfocal with each other, eliminating the need to adjust the focus after switching colors, and can fit on most standard 1.25" eyepiece cameras, or filter wheels or bars to facilitate quick changes. The rings are aluminum with a matte-black anodized finish, and the filter lenses are made of 3mm-thick optical glass with high-transmission broad-band multi-coatings. - Red Filter
-
- Blocks the transmission of blue and green wavelengths
- Produces sharply defined contrast between the cloud formations and the lighter toned surface features on Jupiter
- Increases definition of the Martian polar ice caps and maria
- Reduces the light glare when viewing Venus
- Green Filter
-
- Reduces glare while transmitting light uniformly across the entire visible spectrum
- Helps to split double stars, especially when one member of the pair is significantly brighter than the other
- Blue Filter
-
- Popular for the study of detail on Jupiter and Saturn
- Enhances the contrast of rills and festoons in Jupiter's cloud belts, and details of the Great Red Spot
- Brings out detail in Saturn's belts and polar features
- Useful for lunar observing
- IR Blocking Filter
-
- Blocks infrared light from reaching sensitive imaging sensor, without modifying the visual part of the spectrum
- Increases contrast and overall image sharpness
- Eliminates bright halos around objects
UPC: 709942900132 In the Box Meade RGB/IR Imaging Filter Set (1.25") Red Filter Green Filter Blue Filter IR Block Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade RGB IR Imaging Filter Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 04530 Specs | Type | Eyepiece | | Size | 1.25" | | Multi-Coated | Yes | | Rotating | No | | Construction | Housing: Aluminum alloy
Lens: 3 mm thick optical glass | | Front Filter Thread Size | 1.25" | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 2.95 x 2.2 x 1.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
