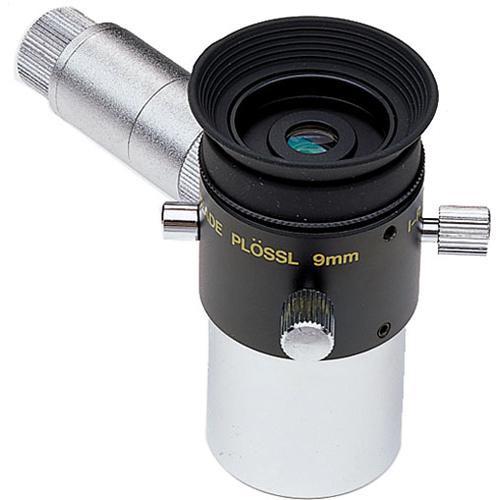

User Manual for Meade Series 4000 9mm Plossl Wireless Illuminated Reticle Eyepiece Click to enlarge the picture
Contents of the user manual for the Meade Series 4000 9mm Plossl Wireless
- Product category: Eyepieces Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Eyepieces
|
User manual for the Meade Series 4000 9mm Plossl Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description The Meade Instruments Series 4000 9mm Plossl Wireless Illuminated Reticle Eyepiece is ideal for use with an off-axis guider to more accurately detect and correct tracking errors during long-exposure astrophotography sessions.It is outfitted with an illuminated concentric-circle/double-crosshair reticle that presents a clearly-defined center aiming area that allows users to center a guide star of virtually any size and closely monitor its location for drift. The reticle has dual micrometric X-Y axis positioning controls to position the reticle just about anywhere in the field of view, and is illuminated by an integrated red LED that is easy to see while preserving night-adjusted vision. Unlike wired models that suffer from cord-wrap and snagging, this eyepiece is a standalone unit that runs on two included LR44 batteries to power the LED, and has a rheostat to set the appropriate brightness for the ambient light or the user's preference. This model is built with a 4-element lens and has a 9mm focal length that produces moderate-to-high magnifications on most OTAs, anti-reflection multi-coated optics to improve views, and a dioptric correction dial for precision focusing. The eyepiece also features a comfortable 16mm eye relief and a fold-down rubber eyecup for easy use with or without eyewear. UPC: 709942002539 In the Box Meade Series 4000 9mm Plossl Wireless Illuminated Reticle Eyepiece (1.25") Barrel Cap 2 x LR44 Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade Series 4000 9mm Plossl Wireless Illuminated Reticle Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 07068 Specs | Focal Length | 9mm | | Apparent Field of View | Not Specified by Manufacturer | | Eye Relief | 16.0 mm | | Eyepiece Barrel Diameter | 1.25" | | Battery Type | 2 x LR44 | | Field Stop Diameter | 9.9 mm | | Dimensions |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
