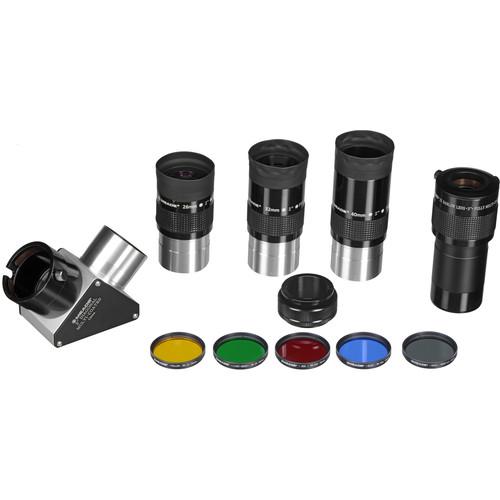

Product description The Meade Series 4000 Plossl Eyepiece & Filter Set gives you three anti-reflection fully multi-coated eyepieces with large 2" barrels for a range of magnifications. Each eyepiece has a textured collar for safe handling, standard 2" filter threads, and fold-down eyecups. A 2x Barlow lens doubles the magnification potential of the eyepieces, adding even more versatility.A 90°-star diagonal is included for comfortable viewing with catadioptric or refractor-style OTAs that are aimed at or near the zenith, as are slip-fit and screw-on visual back adapters to allow the use of the kit components in most styles of focusing systems. A 1.25" reducer adapter is provided to enable you to use the smaller, more popular-sized eyepieces and accessories with 2" focusers, diagonals, and Barlows.Complementing the eyepieces are five colored filters for planetary and lunar viewing. These are the most common and useful that Meade make, including an ND96 Moon filter. The filter housings are made of anodized aluminum and the filters themselves are made of optical glass.To safely carry and store the eyepieces, Barlow, diagonal, and filters is a hard aluminum case. The case has reinforced edges and corners with a sturdy hinged handle and dual lockable draw latches. The interior has egg-crate foam on the lid, and custom-cut foam for all the set components. There are also three pre-cut spaces for user-supplied eyepieces. - Eyepieces
-
- 2" diameter barrel
- Fully anti-reflection coated
- Fold-down rubber eyecups
- Textured rubber collar for safe handling
- Apparent angle of view: 56° (26mm & 32mm), 50° (40mm)
- 26mm focal length produces the highest (but still relatively low) magnification
- 32mm focal length strikes a balance between power and field of view
- 40mm focal length yields the lowest power with the longest eye relief and widest field of view
- Filters
- General:
- Fits most 2" eyepieces and accessories
- Stackable to create color filter combinations for improved performance
- Anodized aluminum frame is lightweight and scratch-resistant
- Optical glass filter is colored during production, for greater filter performance and longevity
#12 Deep Yellow:- 74% transmission
- Use for areas of Jupiter, Saturn, and Mars
- Enhanced lunar contrast on scopes smaller than 6" aperture
#25 Red:- 14% transmission
- Blocks the transmission of blue and green wavelengths
- Use to sharply define the contrast between cloud formations and the surface features on Jupiter
- Improves the definition of the Martian polar ice caps and maria
- Reduces glare and highlights in the Venusian atmosphere
- Recommended for OTAs of 8" aperture or more
#56 Light Green:- 53% transmission
- Use to view Martian polar ice caps, and its yellow tinted dust storms
- Increases contrast of the red and blue regions in Jupiter's atmosphere and cloud belts
- Can be used for lunar observing
#80A Blue:- 30% transmission
- Enhances the contrast in Jupiter's cloud belts, and details in the Great Red Spot
- Highlights detail in Saturn's belts and polar features
- Can be used for lunar viewing
- Useful for splitting Antares
Neutral Density ND96:- 0.9 density
- 13% transmission
- Neutral color transmits evenly across the entire visible spectrum for accurate color transmission
- Ideal for viewing the moon (especially during half to full phases) or for splitting double stars
- Barlow Lens
-
- 2x magnification effectively doubles the power of any eyepiece put in it
- Makes the set of three eyepieces perform like six
- Doubles the power without significantly affecting the eye relief, so using short focal length/high magnification eyepieces is easier
- Fully multi-coated optics
- Accessories
-
- 2" slip-fit focuser adapter allows eyepieces and accessories to be used on standard focuser drawtubes
- Screw-on visual back adapter for use on catadioptric OTAs like Schmidt-Cassegrains
- 90°-star diagonal with 2" snout and holder, places head in comfortable viewing position when catadioptric or refractor-style OTAs are aimed at or near the zenith
- 1.25" eyepiece adapter allows the use of smaller, more common, eyepieces and accessories to be used in the diagonal, Barlow, or drawtubes
- Case
-
- Aluminum with reinforced corners and edges
- Dual locking draw latches, two keys included
- Sturdy hinged handle
- Egg-crate foam lid insert
- Custom-cut foam for each eyepiece and the Barlow lens
- Three cut-outs for additional user-supplied eyepieces
- Large section to stack filter cases
- Lid-stop keeps lid in 90° open position
UPC: 709942997217 In the Box Meade Series 4000 Plossl Eyepiece & Filter Set (2") 26mm Eyepiece 32mm Eyepiece 40mm Eyepiece Deep Yellow Eyepiece Filter Red Eyepiece Filter Light Green Eyepiece Filter Blue Eyepiece Filter ND96 Moon Filter 2x Barlow Lens 90°-Star Diagonal 1.25" Eyepiece Reducer Adapter Hard Aluminum Carry Case Limited 1-Year Warranty Table of Contents
|
