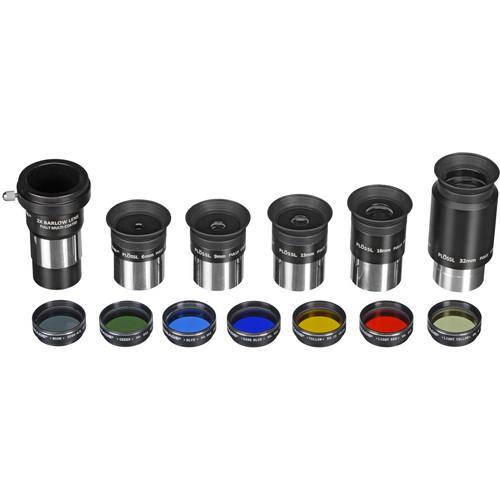

User Manual for Meade Series 4000 Plossl Eyepiece & Filter Set Click to enlarge the picture
Contents of the user manual for the Meade Series 4000 Plossl Eyepiece &
- Product category: Eyepieces Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Eyepieces
|
User manual for the Meade Series 4000 Plossl Eyepiece & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description The Meade Series 4000 1.25" Plossl Eyepiece & Filter Set gives you five anti-reflection multicoated eyepieces with focal lengths from 6mm to 32mm for a wide range of magnifications. Each eyepiece has standard filter threads and fold-down eyecups. A 2x Barlow lens doubles the magnification potential of the eyepieces adding even more versatility.Complementing the eyepieces are six colored filters for planetary and lunar viewing. These are the most common and useful that Meade makes. The set also includes an ND96 Moon filter. The filter housings are anodized aluminum and the filters themselves are optical glass.To safely carry and store the eyepieces, the Barlow lens, and the filters, a hard aluminum case is included. The case has reinforced edges and corners with a sturdy hinged handle and dual lockable draw latches. The interior has egg-crate foam on the lid, and custom-cut foam for all the set components. There are also three pre-cut spaces for user-supplied eyepiece. - Eyepieces
-
- 1.25" diameter barrel
- Fully anti-reflection coated
- Fold-down rubber eyecups
- 52° apparent field of view
- Four-element lens configuration
- 6mm focal length produces the highest magnification in the set - ideal for lunar and planetary viewing
- 9mm focal length offers a comfortable combination of power, field of view, and longer eye relief
- 13mm focal length produces a moderate magnification with a wider field of view and longer eye relief than short focal length eyepieces
- 18mm focal length yields a lower magnification than the 13mm model, but higher than the much longer 32mm
- 32mm focal length offers the lowest power, widest field of view, and longest eye relief
- Filters
- General:
- Fits most 1.25" eyepieces and accessories
- Stackable to create color filter colors to improve performance
- Anodized aluminum frame is lightweight and scratch-resistant
- Optical glass filter is colored during production, for greater filter performance and longevity
#8 Light Yellow:- 83% transmission
- Use for areas of Jupiter and Mars
- Enhanced resolution of Uranus and Neptune with 10"+ aperture scopes
- Enhanced lunar filters on scopes less than 8" aperture
#12 Dark Yellow:- 74% transmission
- Use for areas of Jupiter, Saturn, and Mars
- Enhanced lunar contrast on scopes smaller than 6" aperture
#23A Light Red:- 25% transmission
- Use for Jupiter, Saturn, and Mars
- Enhanced contrast of Mercury against blue sky/twilight during daytime observation
#38A Dark Blue:- 17% transmission
- Use for areas of Jupiter; Martian polar regions
- Use with scopes of 8"+ aperture
#58 Green:- 24% transmission
- Use for Jupiter, Saturn, Martian polar regions on scopes over 8" diameter
#80A Light Blue:- 30% transmission
- Most popular for Jupiter and Saturn
- Enhances contrast on lunar surface
Neutral Density ND96:- 0.9 density
- 13% transmission
- Neutral color transmits evenly across the entire visible spectrum for accurate color transmission
- Ideal for viewing the moon (especially during half to full phases) or for splitting double stars
- Barlow Lens
-
- 2x magnification effectively doubles the power of any eyepiece put in it
- Makes the set of five eyepieces perform like ten
- Doubles the power without significantly affecting the eye relief, so using short focal length/high magnification eyepieces is easier
- Fully multi-coated optics
- Case
-
- Aluminum with reinforced corners and edges
- Dual locking draw latches, two keys included
- Sturdy hinged handle
- Egg-crate foam lid insert
- Custom-cut foam for each eyepiece and the Barlow lens
- Three cut-outs for additional user-supplied eyepieces
- Large section to stack filter cases
- Lid-stop keeps lid in 90° open position
- Two sets of four foot-pads
UPC: 709942997200 In the Box Meade Series 4000 Plossl Eyepiece & Filter Set (1.25") 6mm Eyepiece 9mm Eyepiece 13mm Eyepiece 18mm Eyepiece 32mm Eyepiece Light Red Eyepiece Filter Dark Yellow Eyepiece Filter Light Yellow Eyepiece Filter Dark Blue Eyepiece Filter Light Blue Eyepiece Filter Green Eyepiece Filter ND96 Moon Filter 2x Barlow Lens Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade Series 4000 Plossl Eyepiece & Filter Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 607001 Specs | | | Package Weight | 4.665 lb | | Box Dimensions (LxWxH) | 12.7 x 11.5 x 5.1" |
