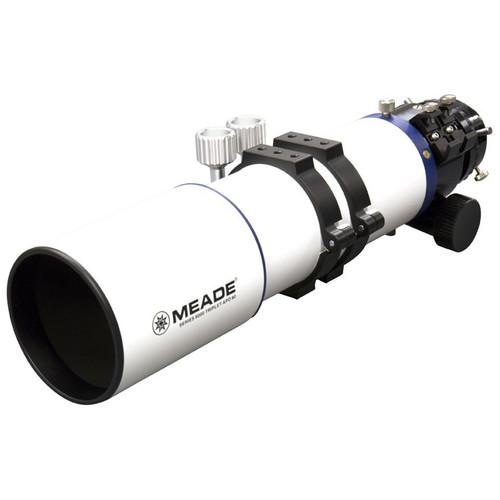

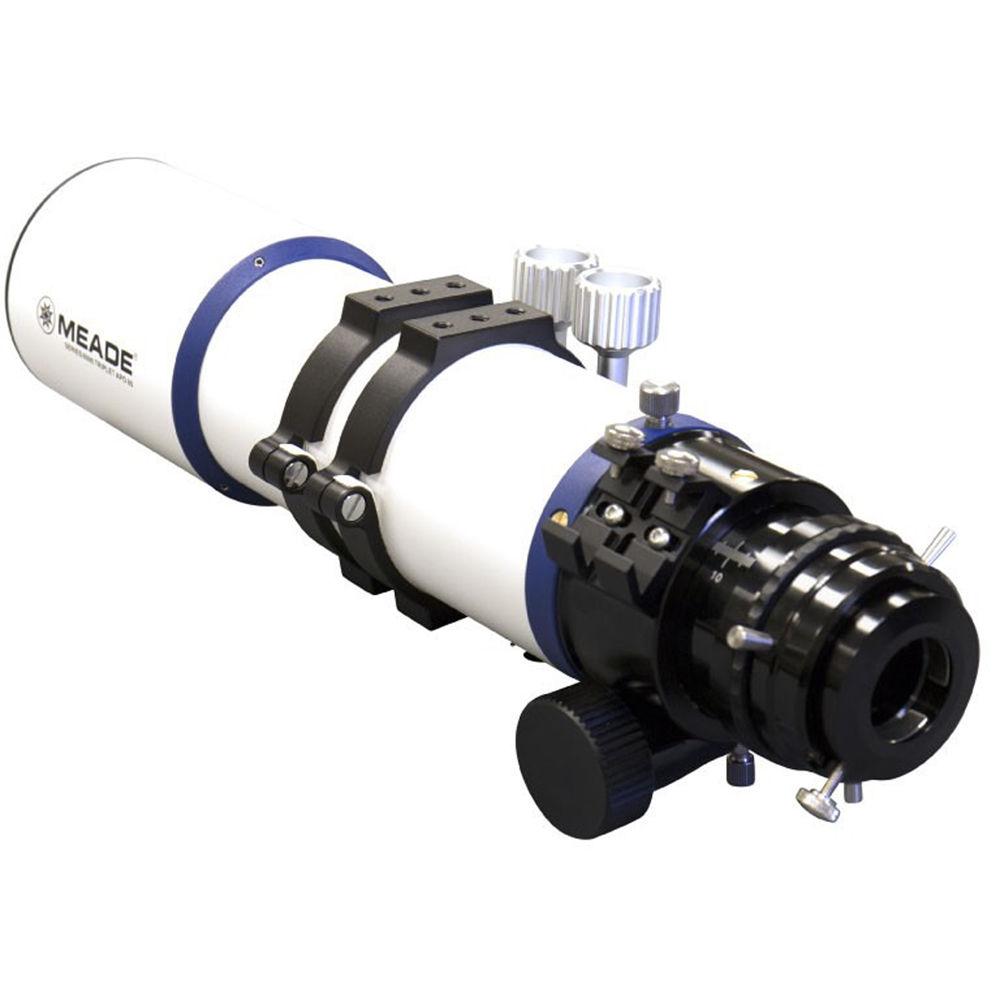

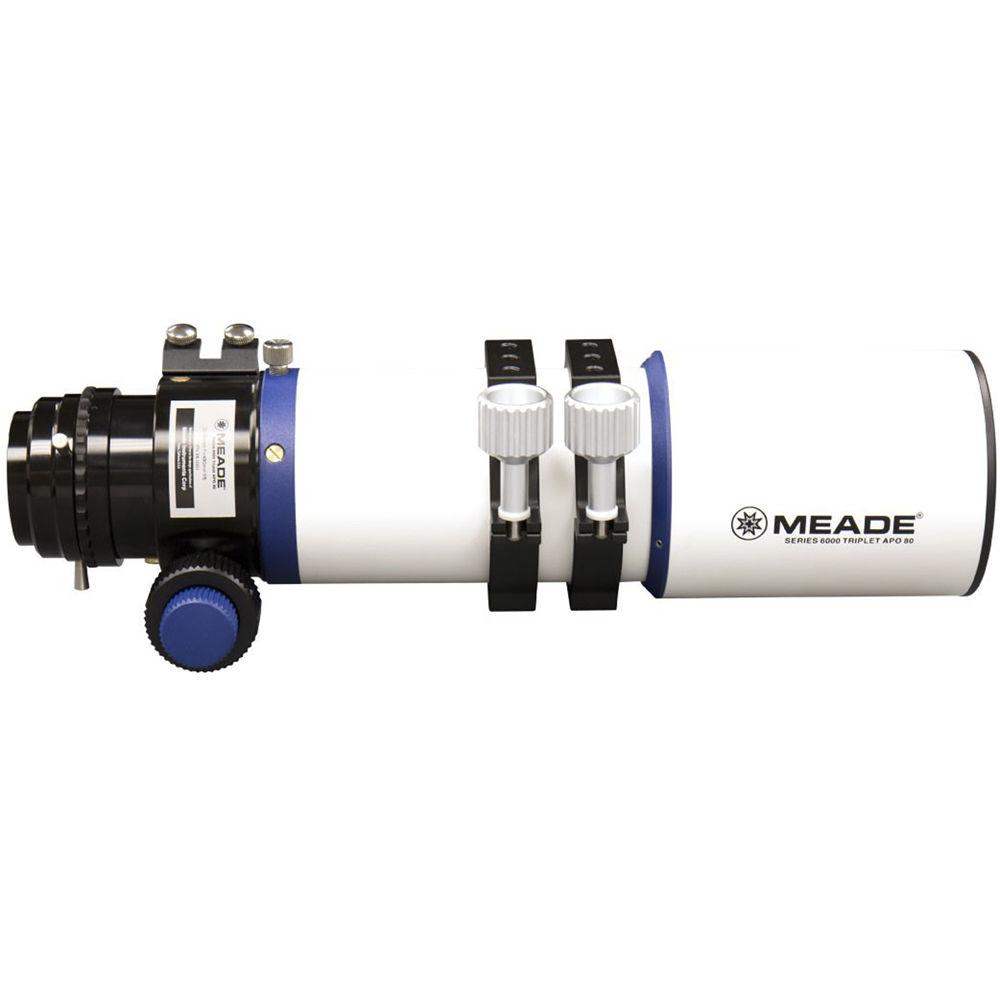

User Manual for Meade Series 6000 80mm f 6 ED Triplet APO Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Meade Series 6000 80mm f 6
- Product category: Refractors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Refractors
 |
User manual for the Meade Series 6000 80mm f 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description The Series 6000 80mm f/6 ED Triplet APO Refractor Telescope from Meade Instruments features a triplet apochromatic lens system with FPL53 extra-low dispersion (ED) glass and Meade's proprietary fully multi-coated optics. This combination of glass, lenses, and coatings virtually eliminates chromatic and spherical aberrations for clear and bright high-contrast images without distortion across the entire field of view, with true color rendition. This is a versatile optical tube assembly that can be used to image or observe detailed views of the Moon and planets, plus bright deep-sky objects. It is also portable enough to be used as a grab-and-go option over larger and heavier scopes; to be set up on a dual-mount rig for astrophotography/astroimaging, or used as a guide-scope on larger rigs.A mounting cradle-ring clamps over the optical tube assembly (OTA) and allows the user to adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and balance, while avoiding interference with other equipment. The scope is offered here without a mount or tripod, but a Vixen-style dovetail plate makes it compatible with any alt-az, EQ, or GoTo mount with a Vixen-style saddle. Its two-speed rack-and-pinion focuser helps make fine-focusing fast and precise. The focuser is equipped with an over-sized 2.5" drawtube to transmit enough light to cover today's camera sensors, and to be able to carry heavier loads like DSLRs and imaging rigs without flexing. - Optical Performance
-
- 80mm objective lens
- 480mm focal length
- Fast focal ratio of f/6 is ideal for astrophotography or imaging
- Refractor-style optical design
- Extra-low Dispersion (ED) FPL53 glass corrects chromatic aberration to improve color rendition
- Triplet apochromatic lens system eliminates chromatic and spherical aberrations, eliminating off-axis comas and astigmatism, and providing true color rendition without distortion across the entire field of view
- Fully multi-coated optics maximize light transmission, while improving color, clarity, and contrast
- Resolution: 1.4478 arcsec, Dawes' Limit
- Retractable dew shield resists condensation build-up on the objective lens
- Focusing System
-
- Optimized for imaging
- Rack-and-pinion design can carry more weight without flexing than similarly sized Crayford styles
- 10:1 two-speed mechanism allows for precise focusing
- 2.5" drawtube ensures full coverage of larger camera sensors without vignetting
- 2" holder accepts common large accessories and eyepieces
- Self-center locking ring that allows diagonals or cameras to be properly centered to the optical path every time the locking ring is engaged
- Focuser lock knob locks the focuser in place for long-exposure astrophotography
- Etched millimeter markings on the drawtube enable repeatable results
- Mounting
-
- Optical tube assembly only - mount and tripod required for proper use
- Vixen-style dovetail plate
- Cradle-ring assembly allows the scope orientation to be adjusted to avoid interference with gear or accessories, or on mount configuration
- Weight: 6.6 pounds
- Case
-
- Hard aluminum exterior with reinforced edges and corners
- Hinged carry handles
- Over-center latches pulls the lid down for maximum security
- Custom-cut foam-lining protects OTA and accessories
UPC: 709942999075 In the Box Meade Series 6000 80mm f/6 ED Triplet APO Refractor Telescope (OTA Only) Mounting Rings with Vixen-Style Dovetail Hard Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade Series 6000 80mm f 6 ED Triplet APO Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade Series 6000 Specs | | | Optical Design | Apochromatic Triplet Refractor | | Aperture | 80 mm / 3.1" | | Focal Length | 480 mm | | Focal Ratio | f/6 | | Resolution | 1.44 Arcsec (Dawes) | | Focuser | Dual-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | None | | Mounting System | Vixen Style | | Optical Tube Dimensions | 15.5 x 4.5 x 6" / 39.4 x 11.4 x 15.2 cm | | | | Batteries | None | | Adapter | None | | GPS | None | | Wi-Fi | None | | Weight | 6.9 lb / 3.1 kg | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 22.4 x 13.6 x 11.0" |
