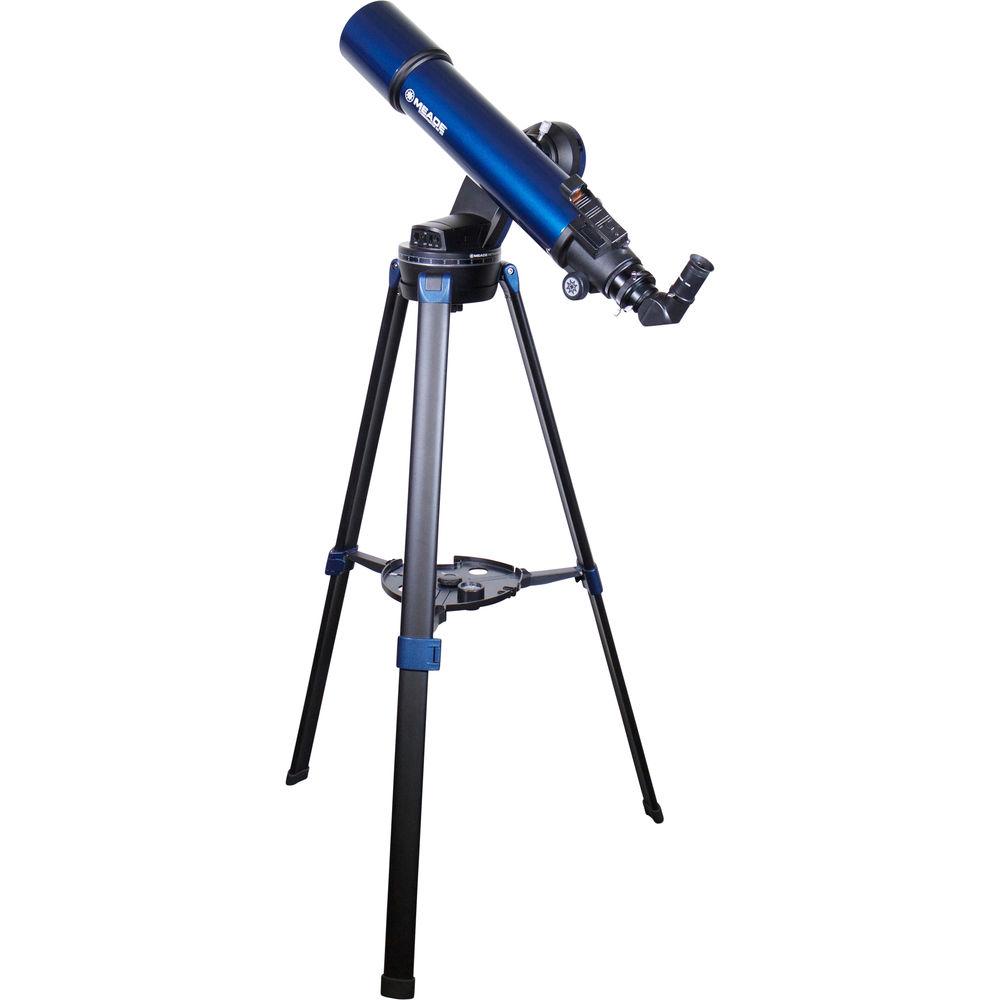

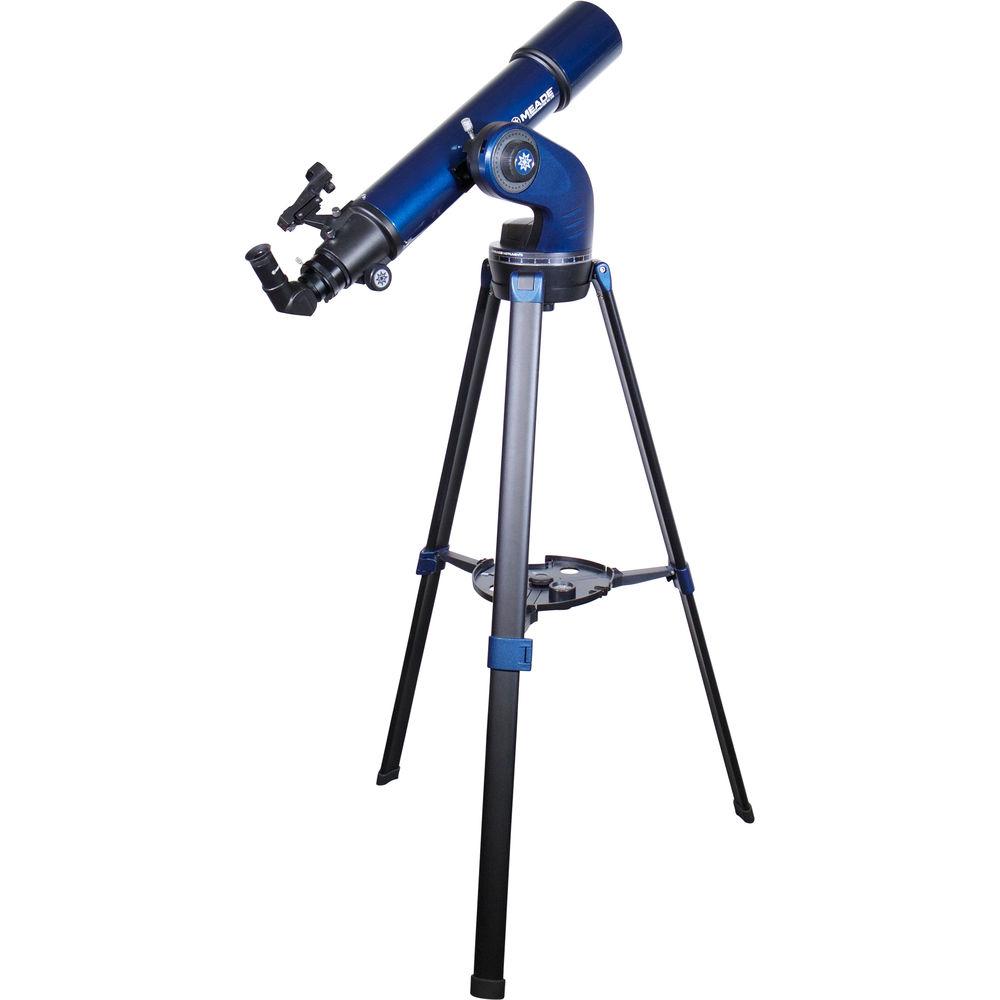

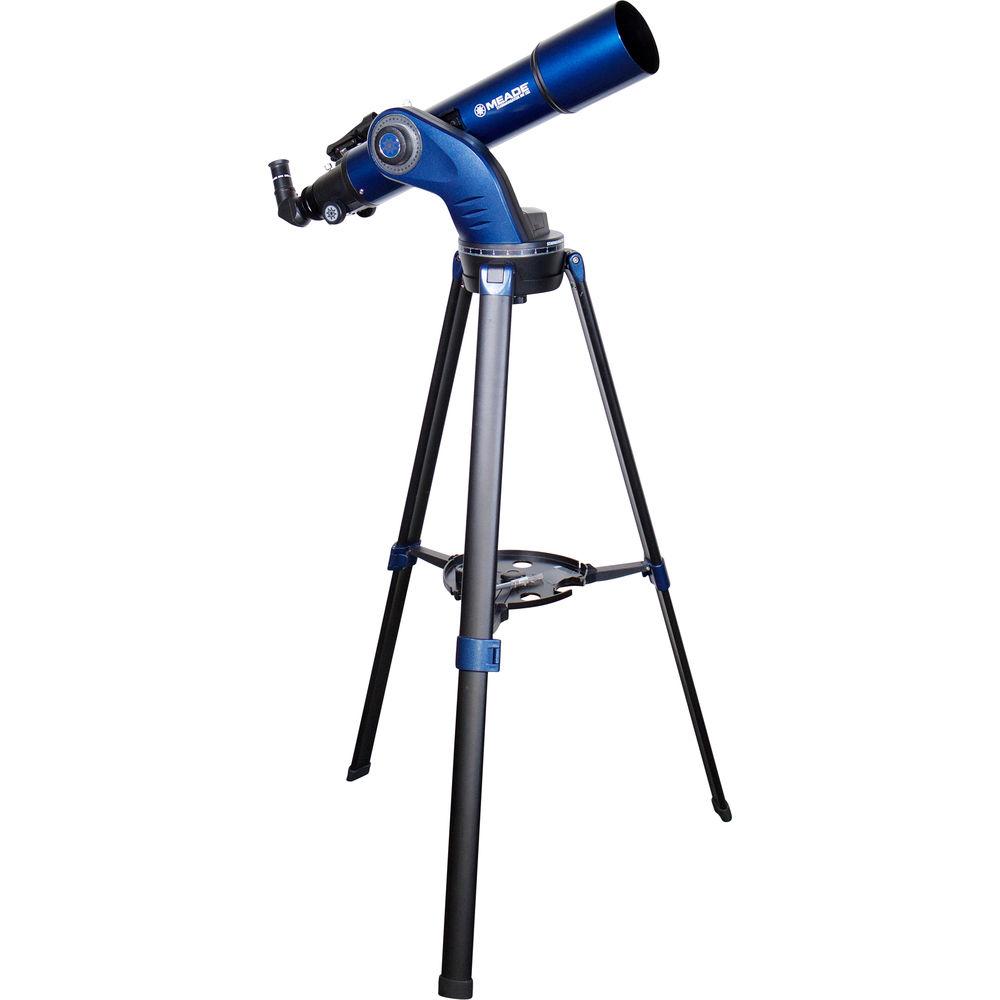

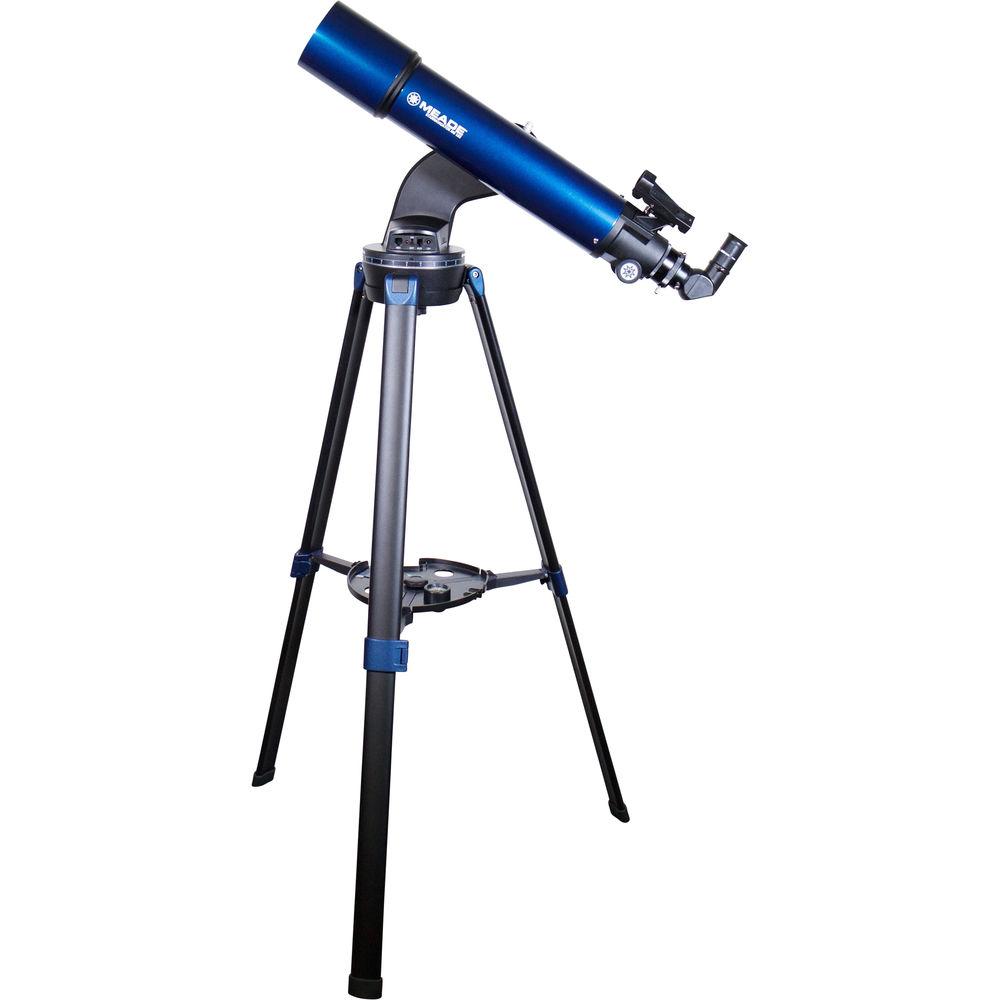

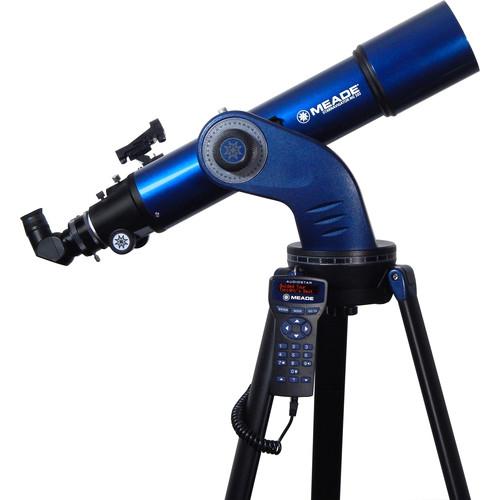

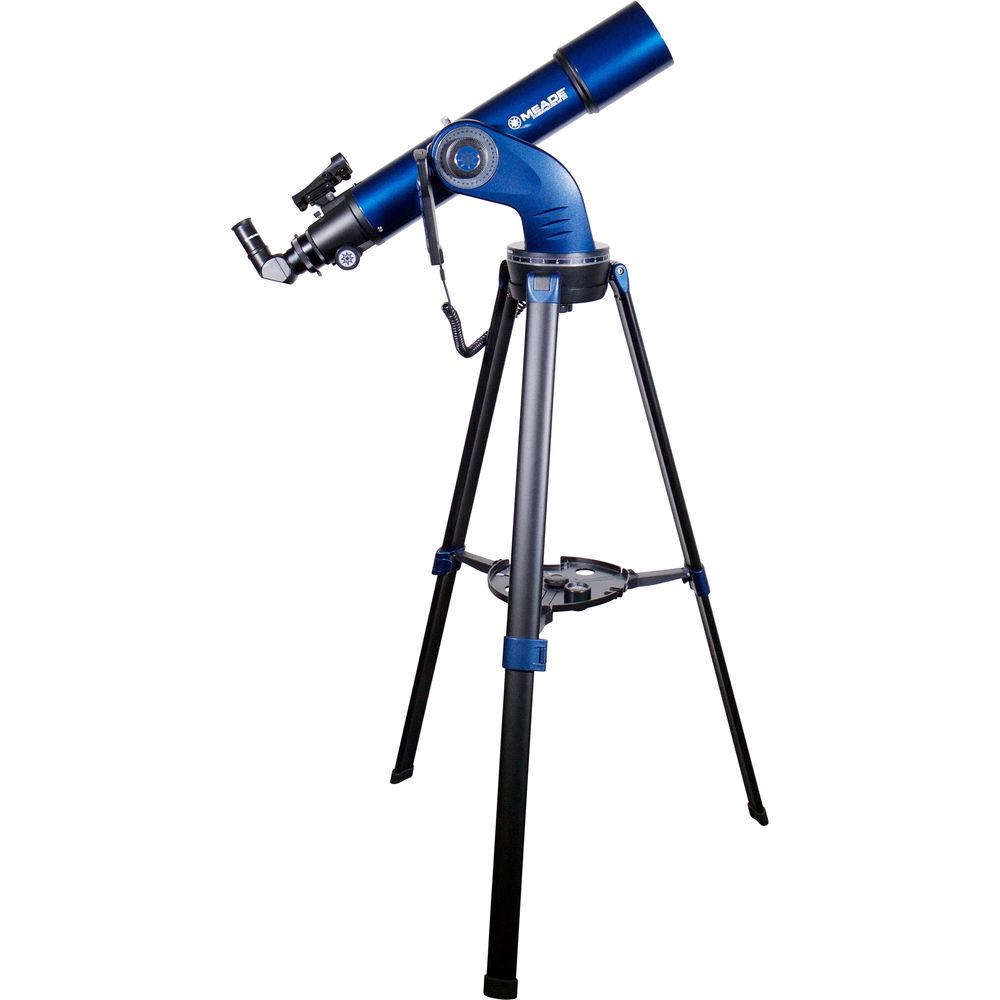

User Manual for Meade StarNavigator NG 102mm f 6.5 GoTo Achro Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Meade StarNavigator NG 102mm f 6.5
- Product category: Refractors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Refractors
 |
User manual for the Meade StarNavigator NG 102mm f 6.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Meade Instruments' provides a complete observational platform that is ideal for astrophotography or imaging with the StarNavigator NG 102mm f/6.5 GoTo Achro Refractor Telescope. Outfitted with an achromatic refractor lens system, views within our solar system as well as deep-sky objects are bright and clear with minimal distortion and accurate color representation across the entire field of view. This iteration of the refractor-style StarNavigator employs a large objective and relatively short focal length to produce a fast 6.5 focal ratio, making it well-suited for long-exposure imaging of the Moon, Sun (with proper optional filters), planets, and general wide-field photos.Driving the dual-axis DC servo motors in the single-arm fork mount is the AudioStar hand controller. This update to their iconic AutoStar enables quick and easy set up and alignment to get you observing faster, while offering guided tours and audio commentary on 500 of its over 30,000 objects in the internal database. Capable of multiple tracking speeds, the mount and controller function together to provide smooth and precise tracking of fast-moving objects like the Moon and slower deep-sky subjects like nebulae.A full-sized adjustable-height aluminum tripod provides solid support for the mount and OTA while still being lightweight and portable. Two eyepieces are included that provide 25x and 73x magnifications, and the 1.25" drawtube will accept any 1.25" eyepieces and accessories that are widely available (sold separately). A 90° prism is also provided that not only puts the observer's head in a comfortable position — especially when the OTA is pointed at or near the zenith — but also corrects the image horizontally and vertically so the StarNavigator can be used as a conventional terrestrial spotting scope. - Optical Performance
-
- 102mm aperture
- f/6.5 focal ratio
- 660mm focal length
- Achromatic lens configuration reduces spherical and chromatic aberrations to produce clear and bright images with across the entire field of view with accurate color representation
- Multi-coated lenses reduce reflection to boost image brightness and contrast
- Rack-and-pinion focuser with 1.25" drawtube

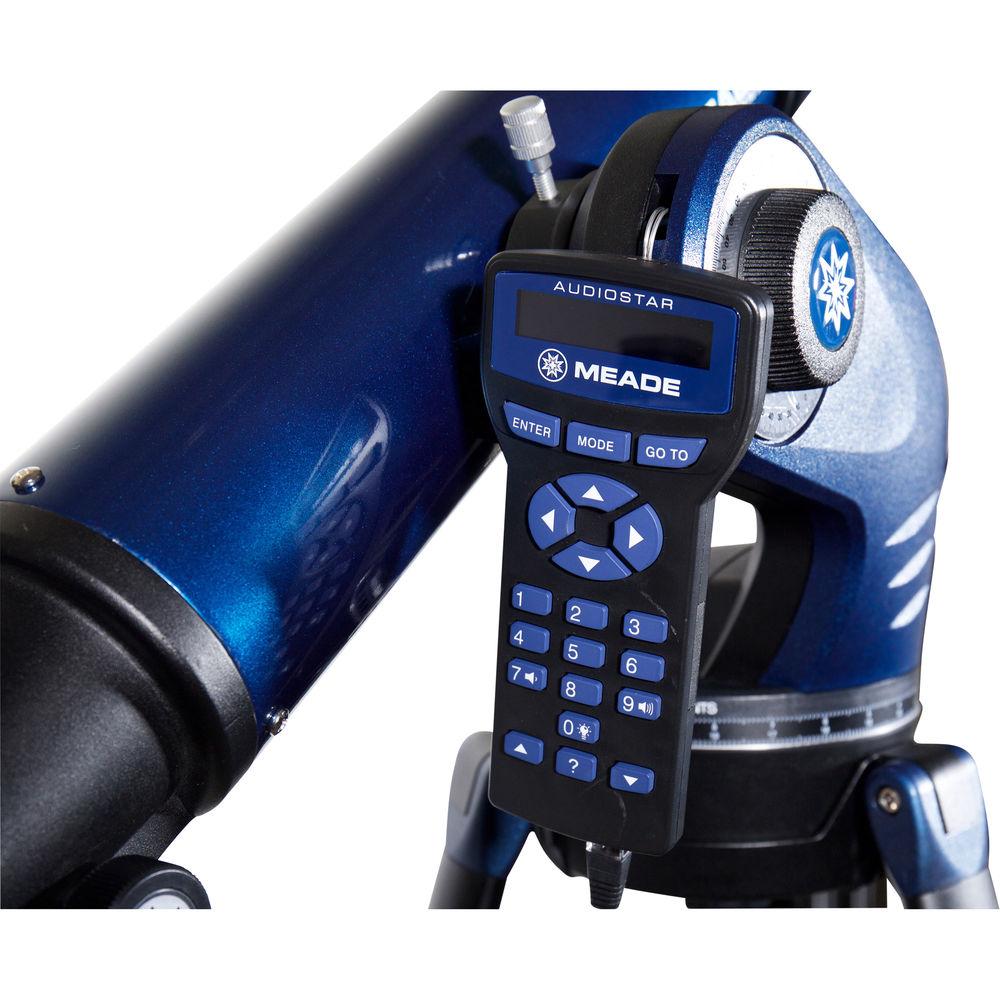

- AudioStar Controller
-
- 2-line, 18-character/line red LED display with 20-button red backlit user interface
- 30,000+ object data base, flash updateable
- Near and deep-sky objects, stars, constellations, comets, asteroids, Messier and SAO catalogs
- Guided tours based on current location, date, and time
- Astronomer Inside: Audio commentary about 500 objects including the Moon, planets, galaxies, and nebulae; information includes size, distance, temperature, and mythology
- Mount and Tripod
-
Mount:- Single fork-arm mount
- Dual-axis DC servo motors provides smooth and accurate variable-rate tracking
Tripod:- Lightweight and durable aluminum tripod
- Adjustable height with independent locking leg sections
- Accessory tray
- Included Accessories
-
- 9mm eyepiece produces 73x
- 26mm eyepiece produces 25x
- 1.25" 90° erecting prism corrects view horizontally and vertically for terrestrial use as a spotting scope
- Red-dot finderscope makes alignment and spot-observation easy
- Combination bubble level and compass aids in set up and alignment
UPC: 709942997934 In the Box Meade StarNavigator NG 102mm f/6.5 GoTo Achro Refractor Telescope AudioStar GoTo Hand Controller cdyaqtwvedxqdfs 9mm Eyepiece 26mm Eyepiece 90° Erecting Prism Red-Dot Finder with Bracket Bubble Level/Compass AudioStar Software DVD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade StarNavigator NG 102mm f 6.5 GoTo Achro Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 218002 Specs | | | Optical Design | Achromatic Refractor | | Aperture | 90 mm / 3.5" | | Focal Length | 660 mm | | Focal Ratio | f/6.5 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
