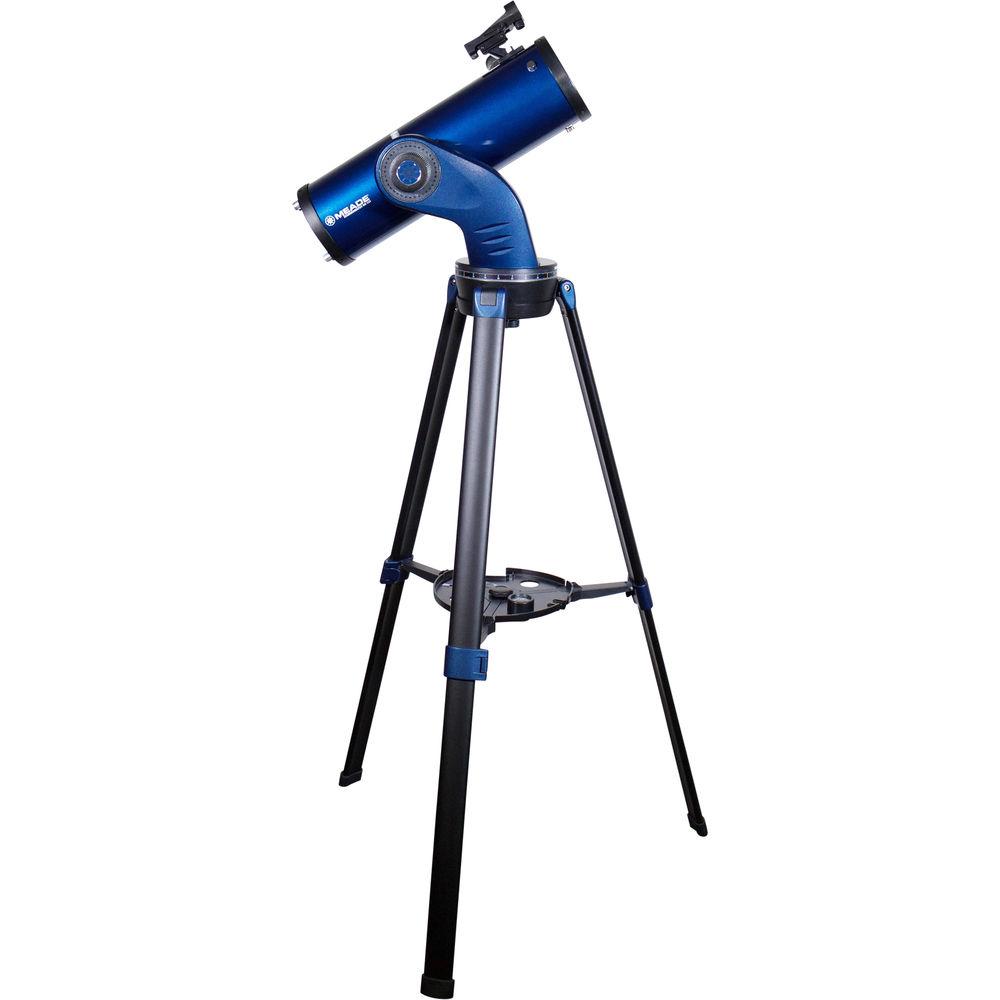

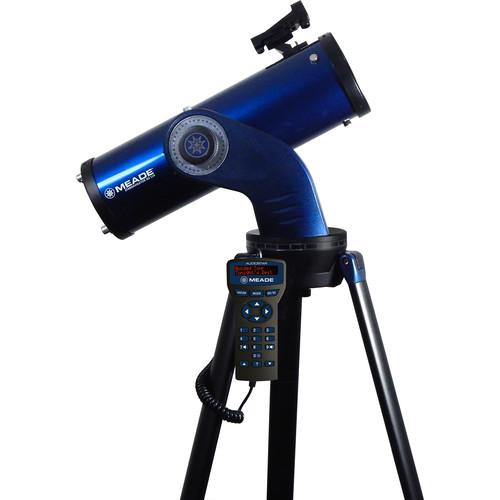

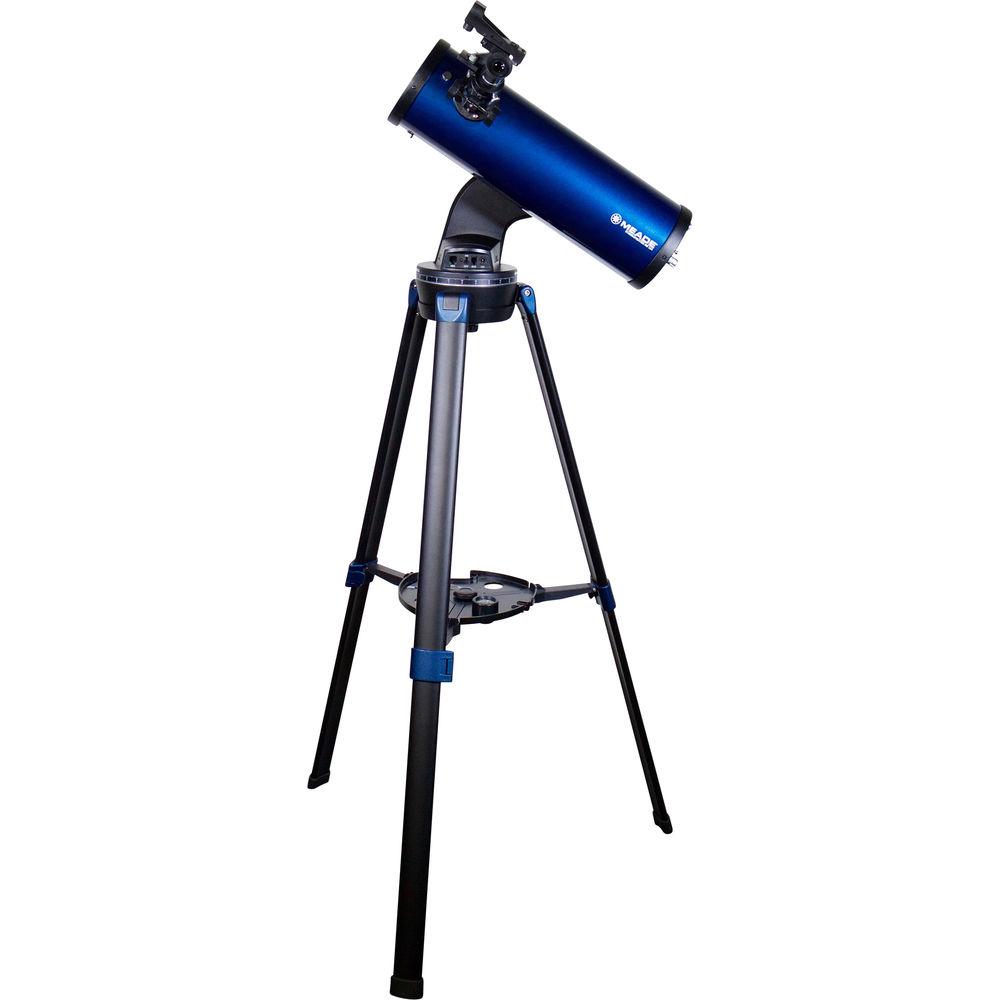

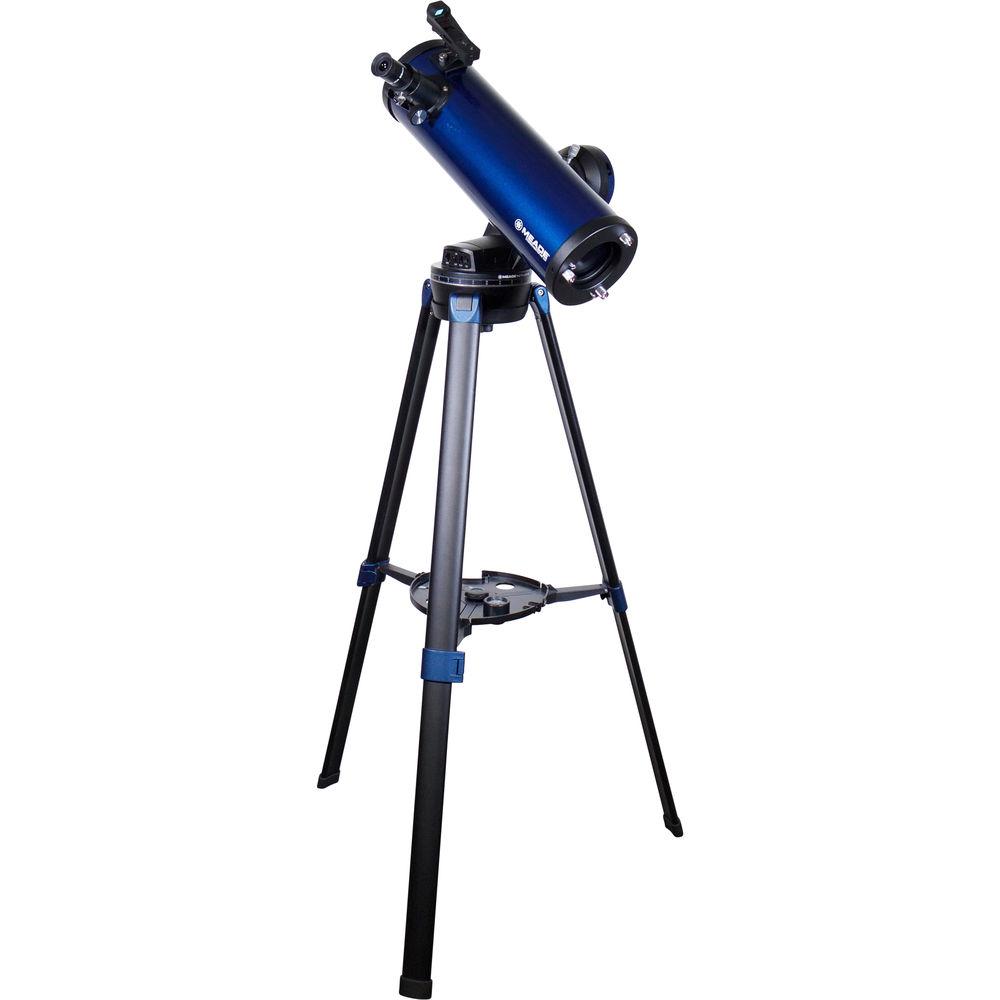

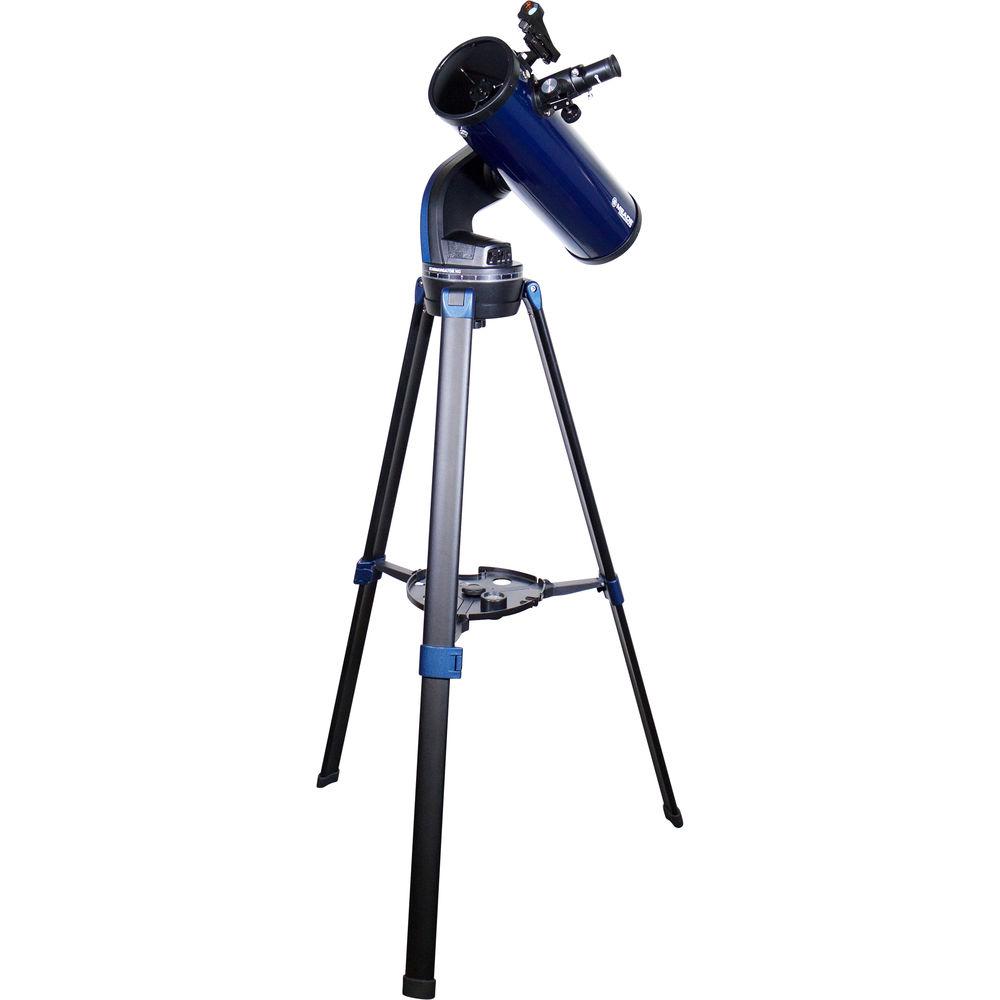

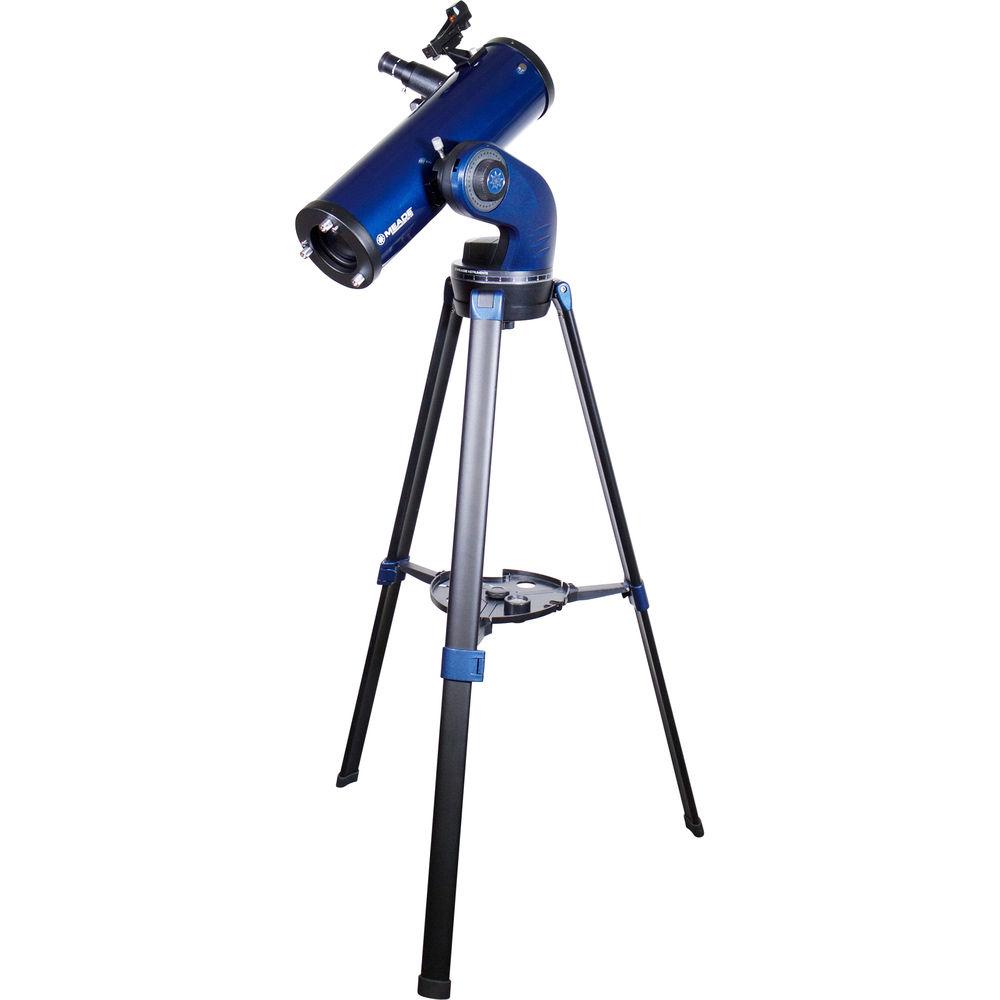

User Manual for Meade StarNavigator NG 114mm f 8.8 GoTo Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Meade StarNavigator NG 114mm f 8.8
- Product category: Reflectors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Reflectors
 |
User manual for the Meade StarNavigator NG 114mm f 8.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Meade Instruments' provides a complete observational platform with the StarNavigator NG 114mm f/8.8 GoTo Reflector Telescope. Configured with a Newtonian reflector optical path, it features a large parabolic primary mirror that helps to correct chromatic aberration, producing images with accurate colors across the entire field of view. Its long focal length, combined with the large aperture, produces bright and clear images of nearby objects within our solar system, plus bright deep-sky subjects such as galaxies and nebulae.Driving the dual-axis DC servo motors in the single-arm fork mount is the AudioStar hand controller. This update to their iconic AutoStar enables quick and easy set up and alignment to get you observing faster, while offering guided tours and audio commentary on 500 of its over 30,000 objects in the internal database. Capable of multiple tracking speeds, the mount and controller function together to provide smooth and precise tracking of fast-moving objects like the Moon and slower deep-sky subjects like nebulae.A full-sized adjustable-height aluminum tripod provides solid support for the mount and OTA while still being lightweight and portable. Two eyepieces are included that provide 38.5x and 111x magnifications, and the 1.25" drawtube will accept any 1.25" eyepieces and accessories that are widely available separately. To help with set-up and alignment, Meade provides a red-dot finder that allows users to simply put the dot on a subject for fast and precise object location. - Optical Performance
-
- 114mm aperture
- f/8.8 focal ratio
- 1000mm focal length
- Newtonian reflector optical configuration
- Parabolic primary mirror helps to reduce chromatic aberration for accurate color rendition
- Multi-coated lenses reduce reflection to boost image brightness and contrast
- Rack-and-pinion focuser with 1.25" drawtube
- AudioStar Controller
-
- 2-line, 18-character/line red LED display with 20-button red backlit user interface
- 30,000+ object data base, flash updateable
- Near and deep-sky objects, stars, constellations, comets, asteroids, Messier and SAO catalogs
- Guided tours based on current location, date, and time
- Astronomer Inside: Audio commentary about 500 objects including the Moon, planets, galaxies, and nebulae; information includes size, distance, temperature, and mythology
- Mount and Tripod
-
Mount:- Single fork-arm mount
- Dual-axis DC servo motors provides smooth and accurate variable-rate tracking
Tripod:- Lightweight and durable aluminum tripod
- Adjustable height with independent locking leg sections
- Accessory tray
- Included Accessories
-
- 9mm eyepiece produces 111x
- 26mm eyepiece produces 38.5x
- Combination bubble level and compass aides in setup and alignment
UPC: 709942997941 In the Box Meade StarNavigator NG 114mm f/8.8 GoTo Reflector Telescope AudioStar GoTo Hand Controller 9mm Eyepiece 26mm Eyepiece Bubble Level/Compass Red-Dot Finder with Bracket AudioStar Software DVD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade StarNavigator NG 114mm f 8.8 GoTo Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 218003 Specs | | | Optical Design | Newtonian Reflector | | Aperture | 114 mm / 4.5" | | Focal Length | 1000 mm | | Focal Ratio | f/8.8 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Yes | | Mounting System | Mounting Rings | | | | Type | Motorized; Alt-Azimuth | | GoTo Capability | Yes | | | | Type | Adjustable | | Material of Tripod | Aluminum | | | | Batteries | 8 x AA | | GPS | None | | Wi-Fi | None | | Assembled Dimensions | 58.0 x 24.0 x 24.0" / 147.3 x 61.0 x 61.0 cm | | Weight | 14.7 lb / 6.7 kg (Fully Assembled) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 36.3 x 19.0 x 9.3" |
