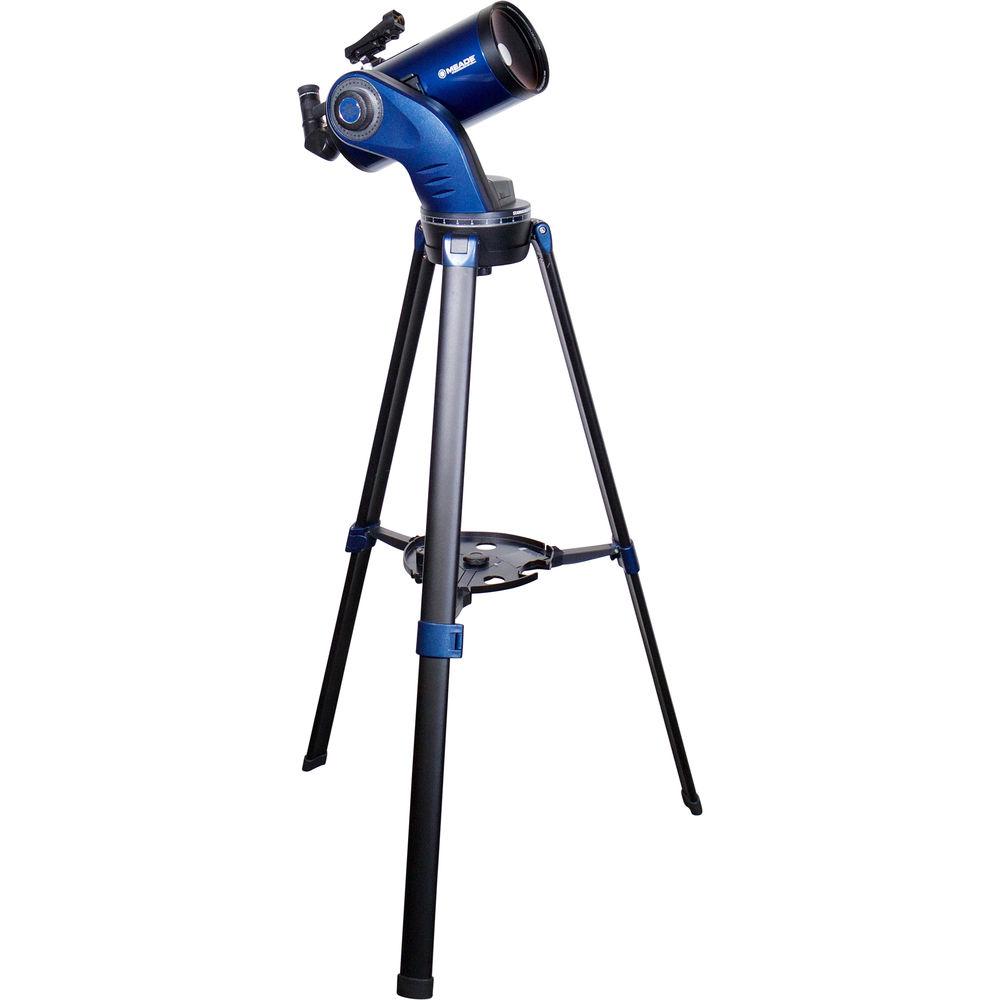

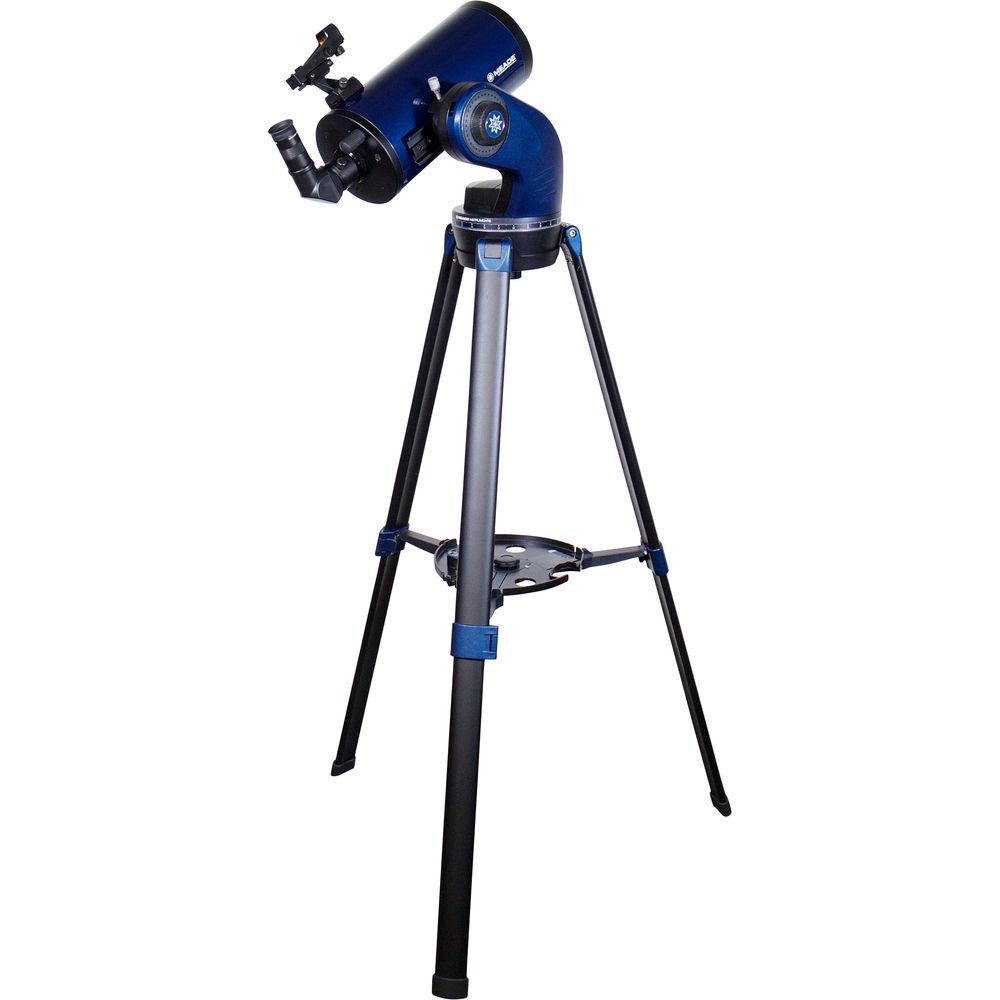

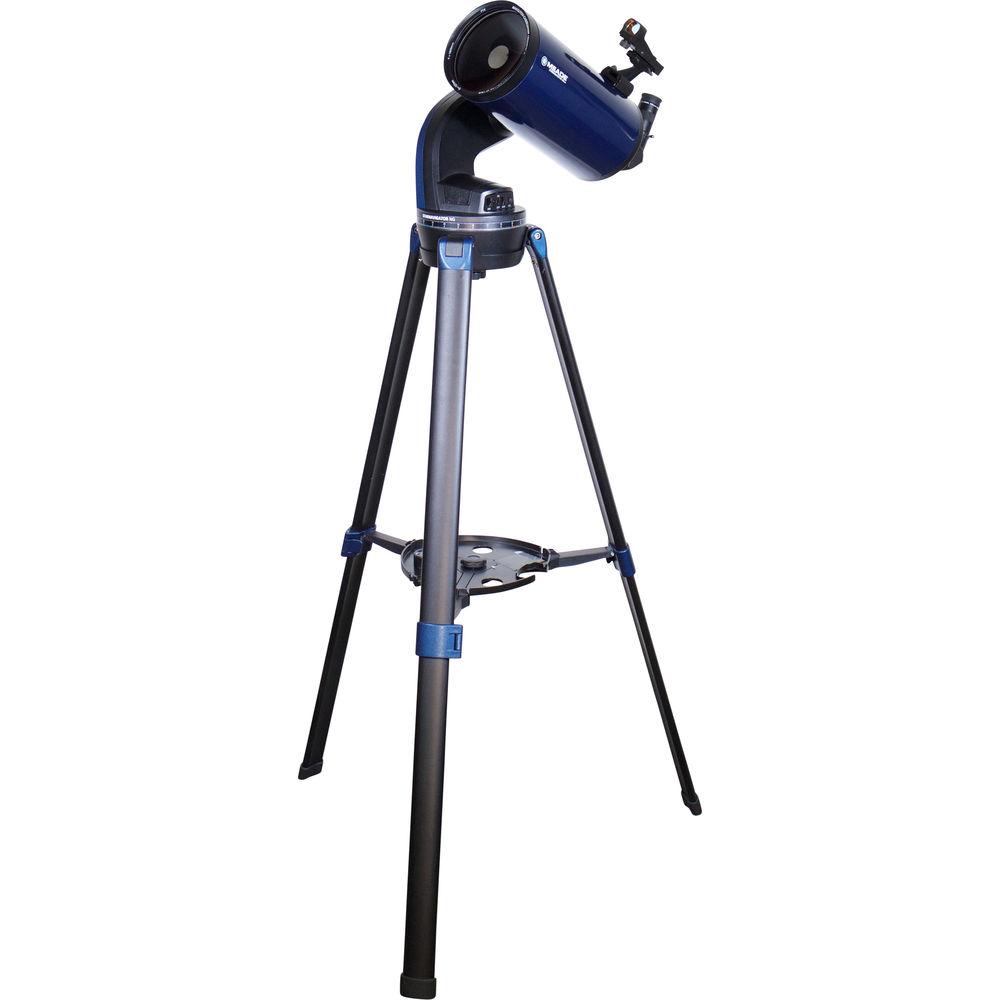

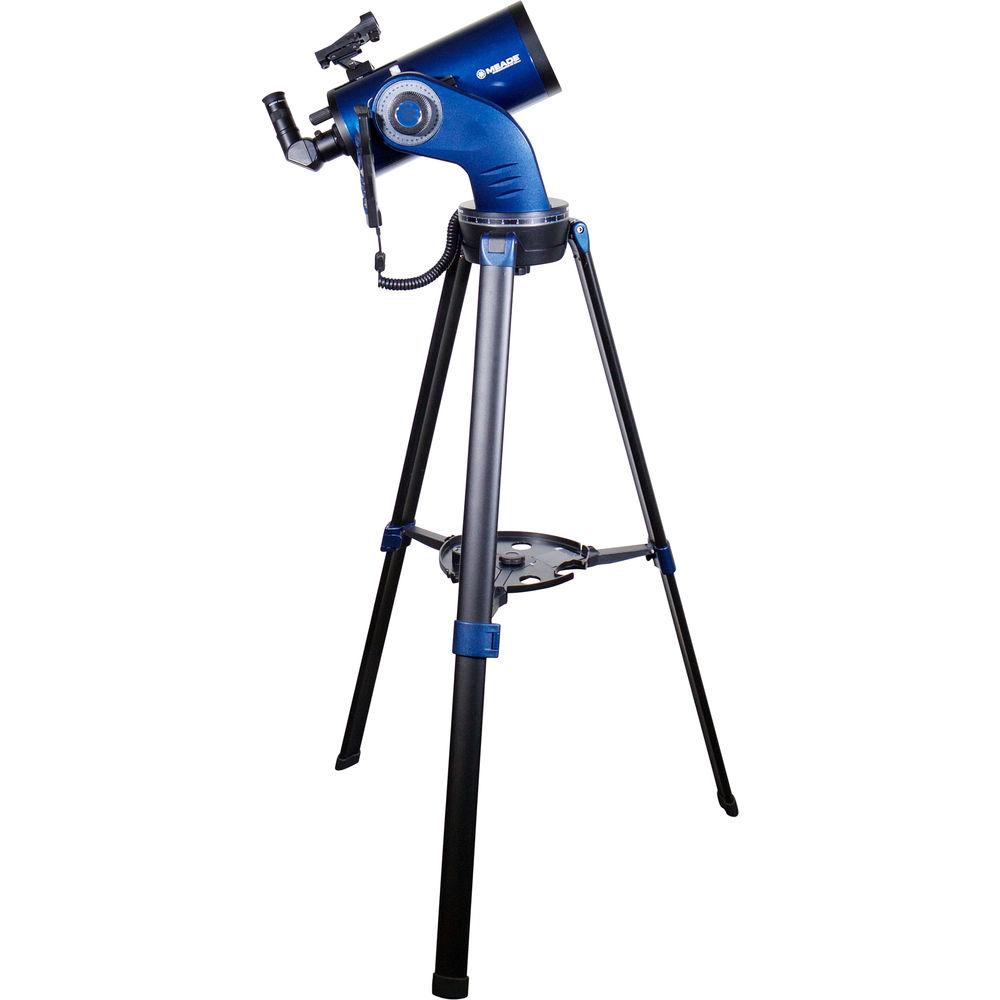

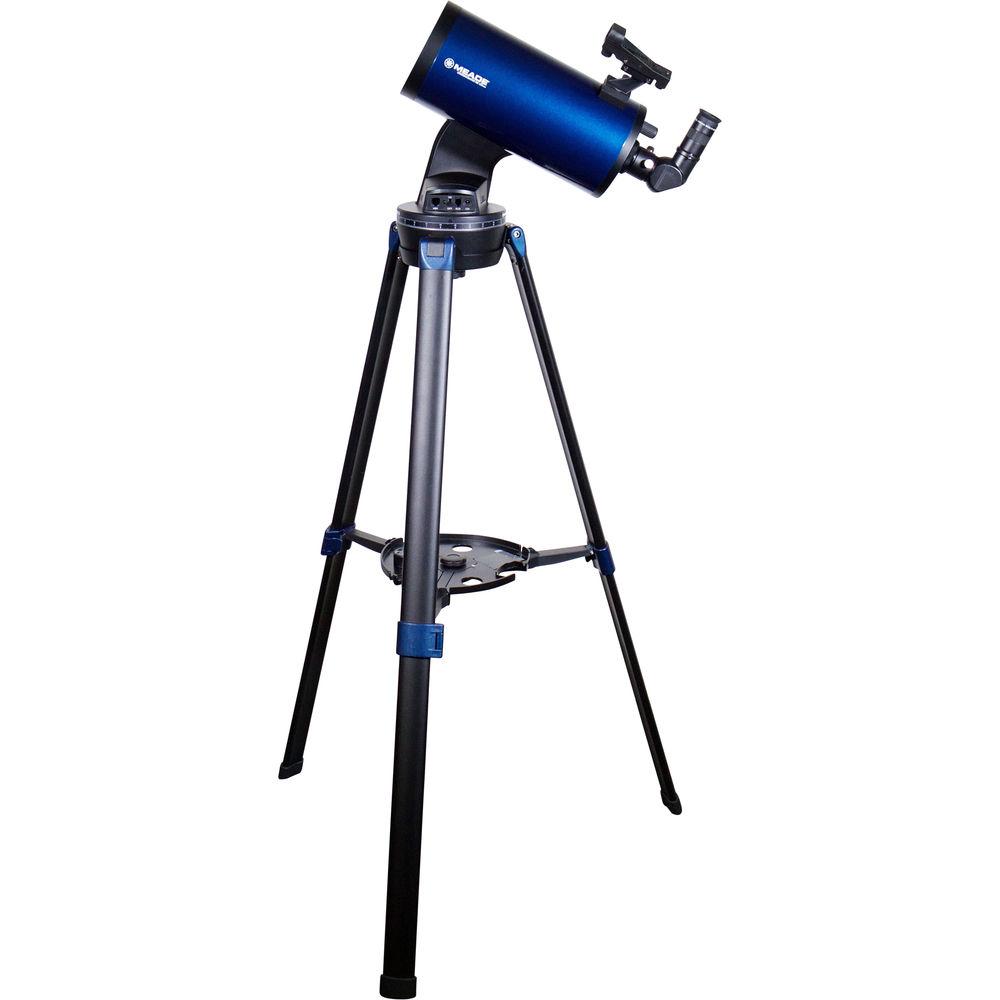

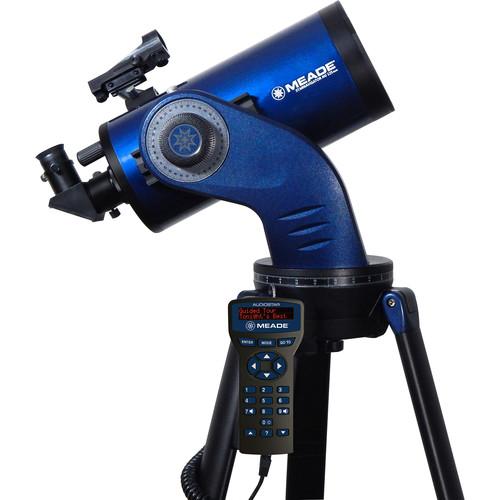

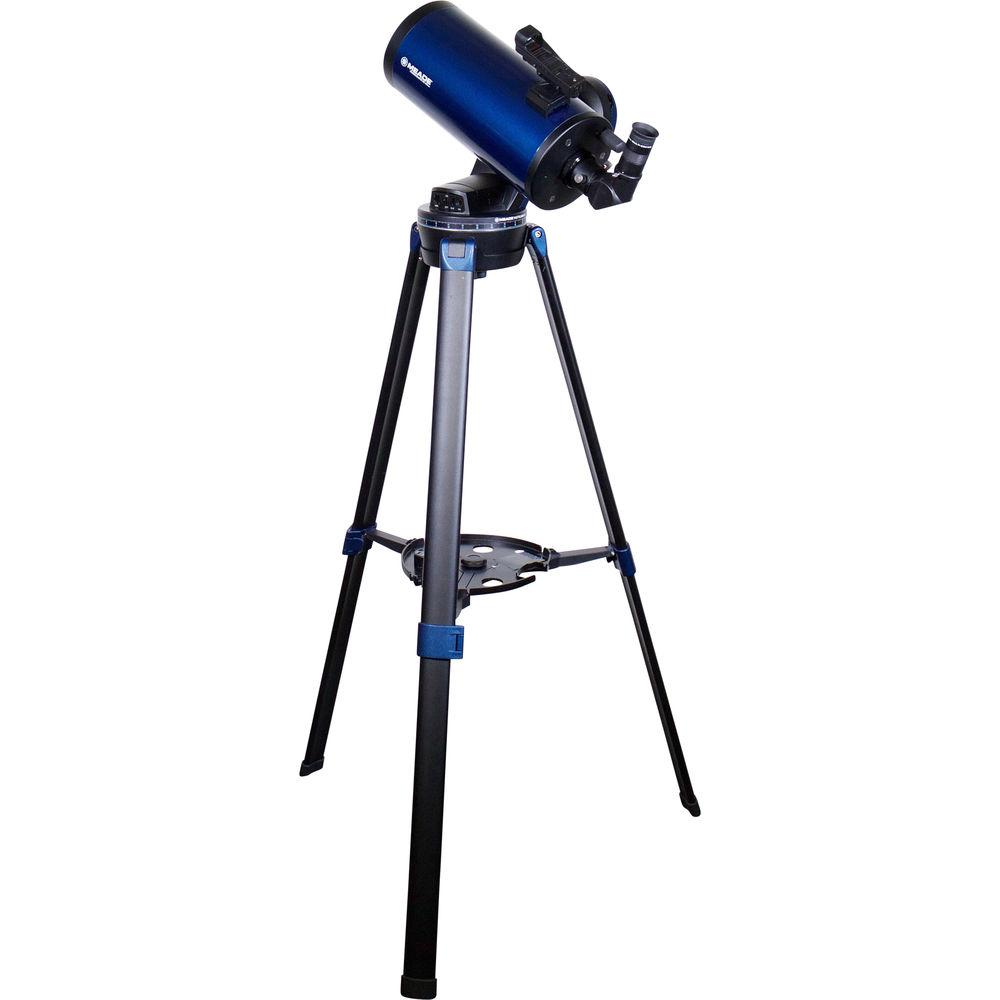

Product description The Meade Instruments StarNavigator NG 125mm f/15 Maksutov-Cassegrain GoTo Telescope is ideal for users who want a portable yet powerful observation platform that is able to achieve high magnifications for detailed views of the Moon and planets and has the ability to reach out past our solar system to observe brighter deep-sky objects such as clusters and stars. The compact and powerful Maksutov design uses a front corrector plate with a convex meniscus lens to correct off-axis aberrations, like comas, and chromatic aberration to produce images with true-color rendition. The nature of the lens results in a smaller secondary mirror—limiting obstruction and increasing contrast, while eliminating the need for periodic collimation. This optical path results in a slower focal ratio and narrower field of view versus a similar Schmidt-Cassegrain variant, but the optical benefits, when coupled with a precision tracking mount, make this an ideal scope for all types of celestial observations and astrophotography.Driving the dual-axis DC servo motors in the single-arm fork mount is the AudioStar hand controller. This update to their iconic AutoStar enables quick and easy setup and alignment to get you observing faster, while offering guided tours and audio commentary on 500 of its over 30,000 objects in the internal database. For those who want to use it for astrophotography, its standard SCT back will accept standard camera mounting accessories to perform prime-focus photography using a DSLR camera body and optional adapters. - Optical Performance
-
- 127mm aperture
- f/15 focal ratio
- 1900mm focal length
- Maksutov-Cassegrain optical configuration
- Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
- Smaller secondary mirror versus Schmidt-Cassegrains reduces obstructions and increases contrast
- Resolution: 0.9 arcsec
- Standard Schmidt-Cassegrain Telescope (SCT) visual back accepts any visual or astrophotographic accessory
- Single-speed internal focuser
- Vixen-style dovetail plate

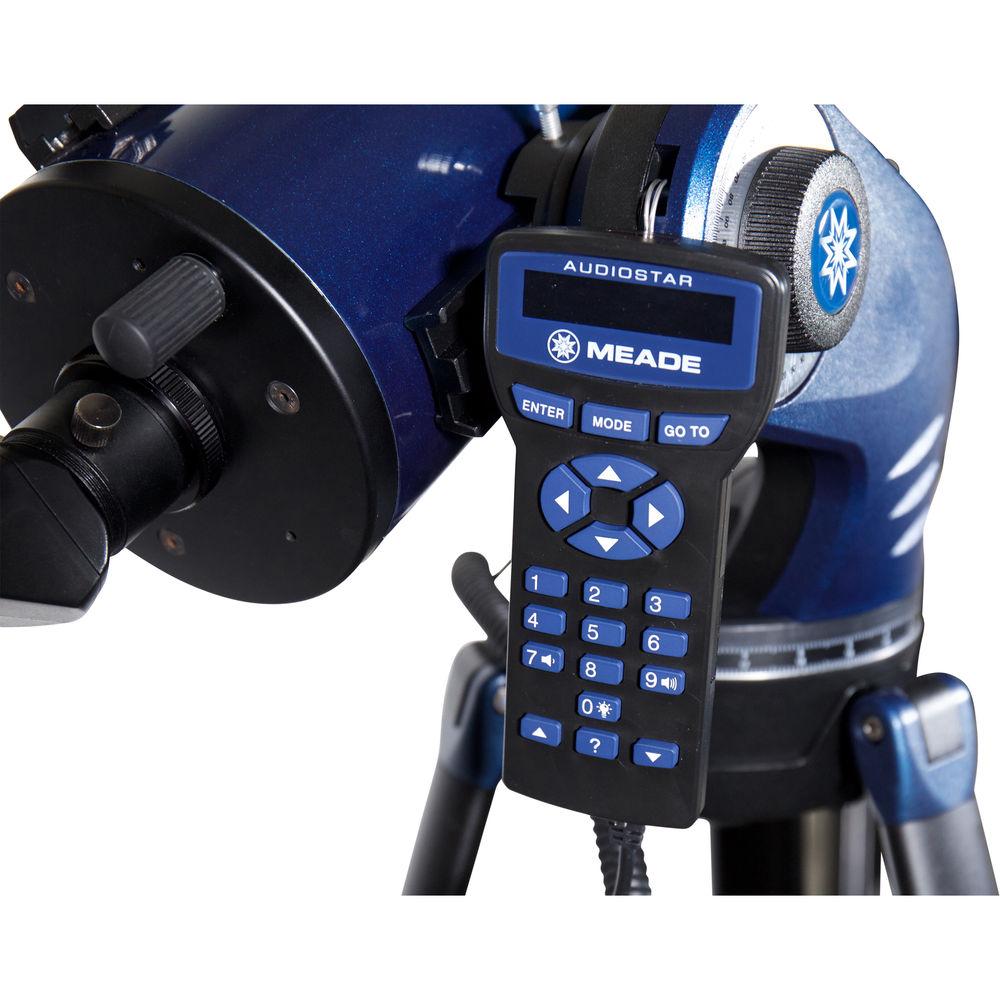

- AudioStar Controller
-
- 2-line LED display
- 20-key alphanumeric keypad, red LED backlight
- 68HC11, 8MHz processor
- Built-in red utility light
- 30,000+ object database
- User-friendly menu-driven system navigation
- Slew speeds: 1x, 2x, 8x, 16x, 64x, 0.5°/sec, 1°/sec, 1.5°/sec, 4°/sec (max)
- Assisted alignment procedures: Easy (Two-star), One-star, Two-star, Three-star
- Customizable guided tours for specific date, time, and location
- Built-in speaker provides descriptions of over 500 objects including scientific data and history
- Projects events to plan future astronomy sessions such as sunrise/sunset, Moon phases/moonrise/moonset, meteor showers, lunar/solar eclipses, equinoxes/solstices
- Backlash compensation allows user to train out the intrinsic play between gears to improve GoTo and tracking accuracy
- Powered by mount to be lighter and easier to use
- 24" coiled cord
- Updatable via Internet using RS-232 port
- Database Details:
- Solar system, including Moon, Sun, planets
- Comets and asteroids
- 88 major constellations
- Popular named objects
- Galaxies, quasars, and nebulae
- Multiple catalogs including Messier, Caldwell, and NGC
- Stars, including named stars, SAO catalog, double stars, variable stars
- Satellites, including the International Space Station (ISS) and Hubble Space Telescope (HST)
- User-defined astronomical and terrestrial objects
- Mount and Tripod
-
- Mount:
- Single fork-arm motorized alt-azimuth
- Dual-axis DC servo motors provide smooth and accurate variable-rate tracking
- Vixen-style dovetail saddle
- Runs on eight AA user-supplied batteries
- Tripod:
- Adjustable height
- Aluminum alloy legs, two sections
- Leg-locking plate for additional stability
- Tray holds eyepieces, filters, phones, and most other accessories
- Included Accessories
-
- Eyepieces:
- 1.25"-diameter barrel
- Accept most 1.25" eyepiece filters
- 9mm eyepiece produces 211x
- 26mm eyepiece produces 73x
- Finder:
- Unmagnified view ensures a wide field of view to aid in fast alignment
- Simple center red aiming dot won't obscure small or dim objects
- Variable-intensity reticle preserves night-adjusted vision
UPC: 709942997972 In the Box Meade StarNavigator NG 125mm f/15 Maksutov-Cassegrain GoTo Telescope AudioStar GoTo Hand Controller 9mm Eyepiece 26mm Eyepiece Red-Dot Finder with Bracket Bubble Level/Compass AudioStar Software DVD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade StarNavigator NG 125mm f 15 Maksutov-Cassegrain GoTo Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade StarNavigator NG Specs | | | Optical Design | Maksutov Cassegrain | | Aperture | 127 mm / 5" | | Focal Length | 1900 mm | | Focal Ratio | f/15 | | Focuser | Single-Speed Internal | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
