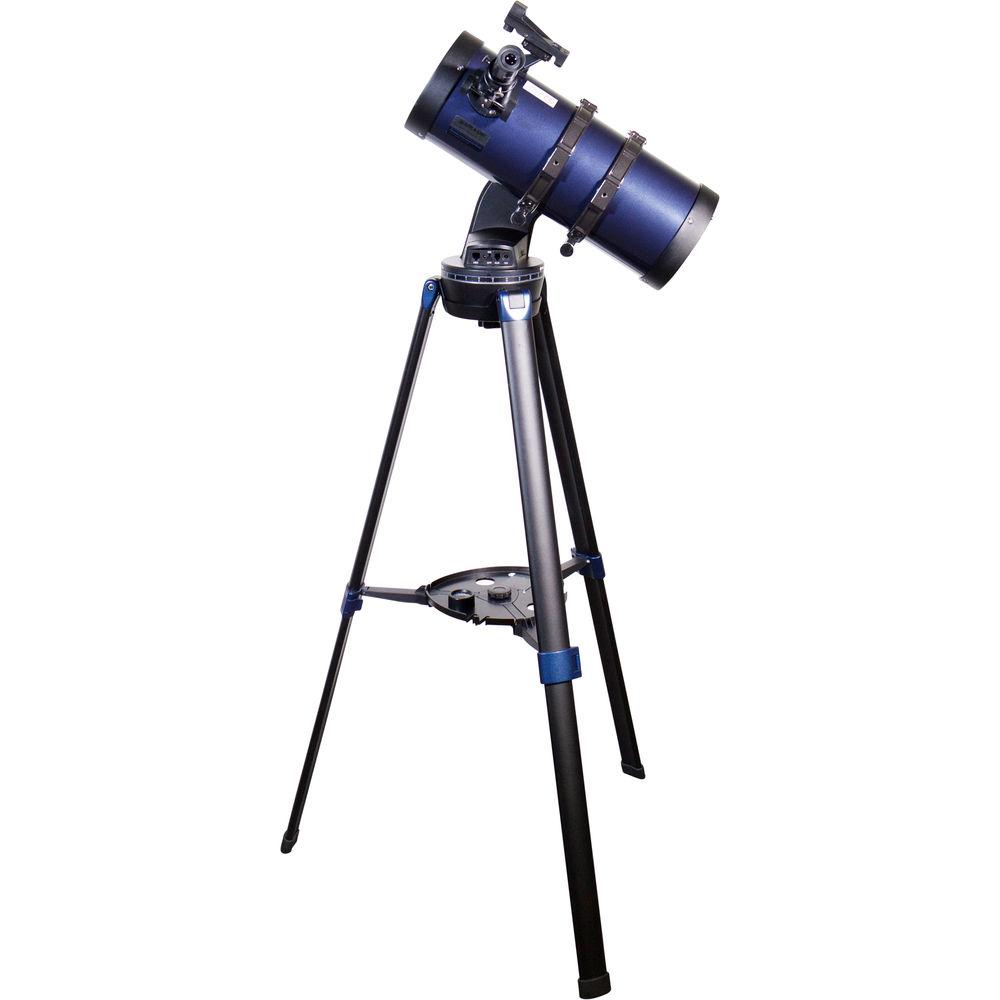

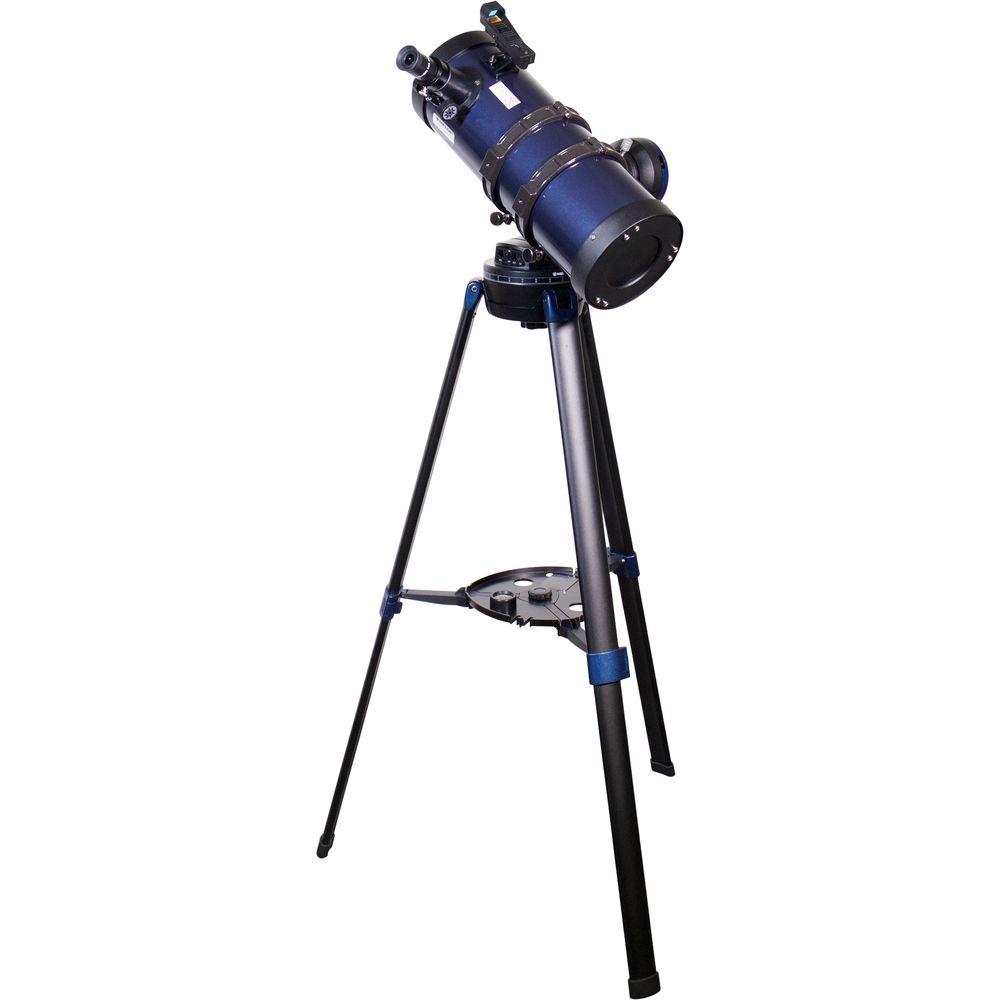

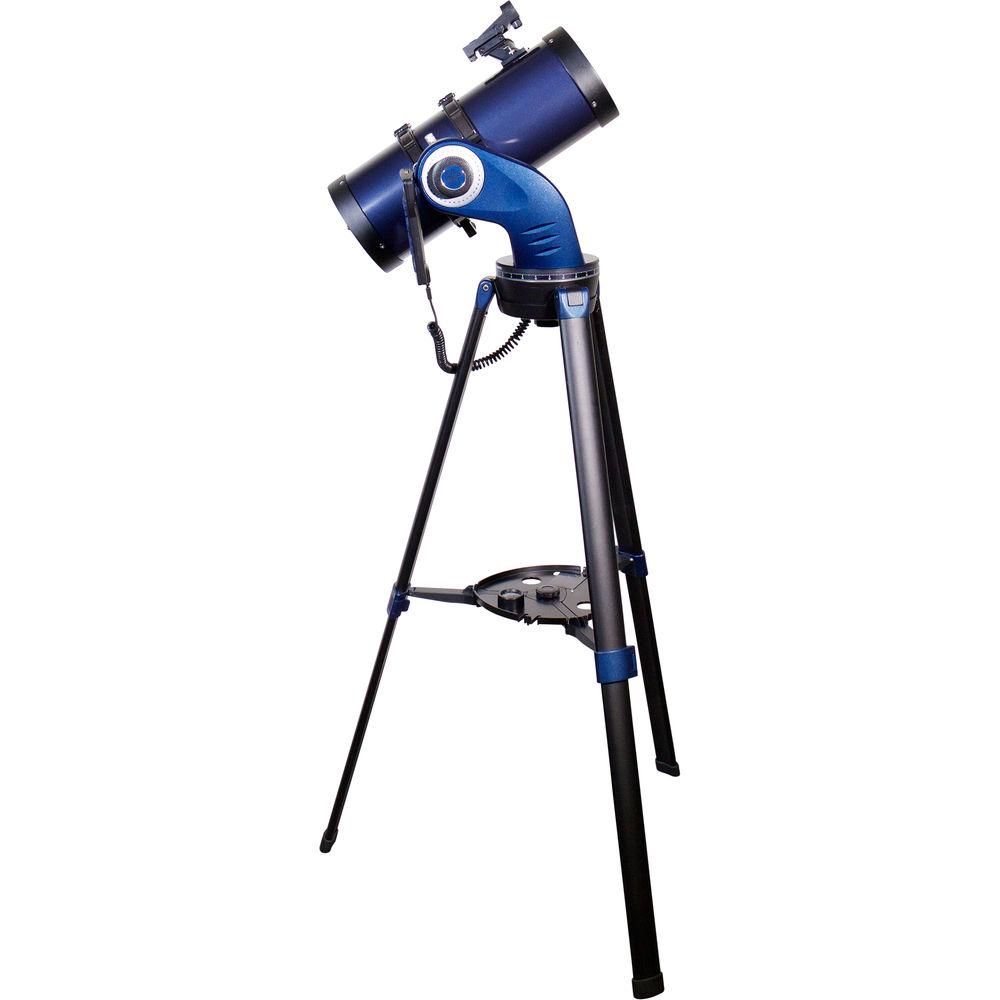

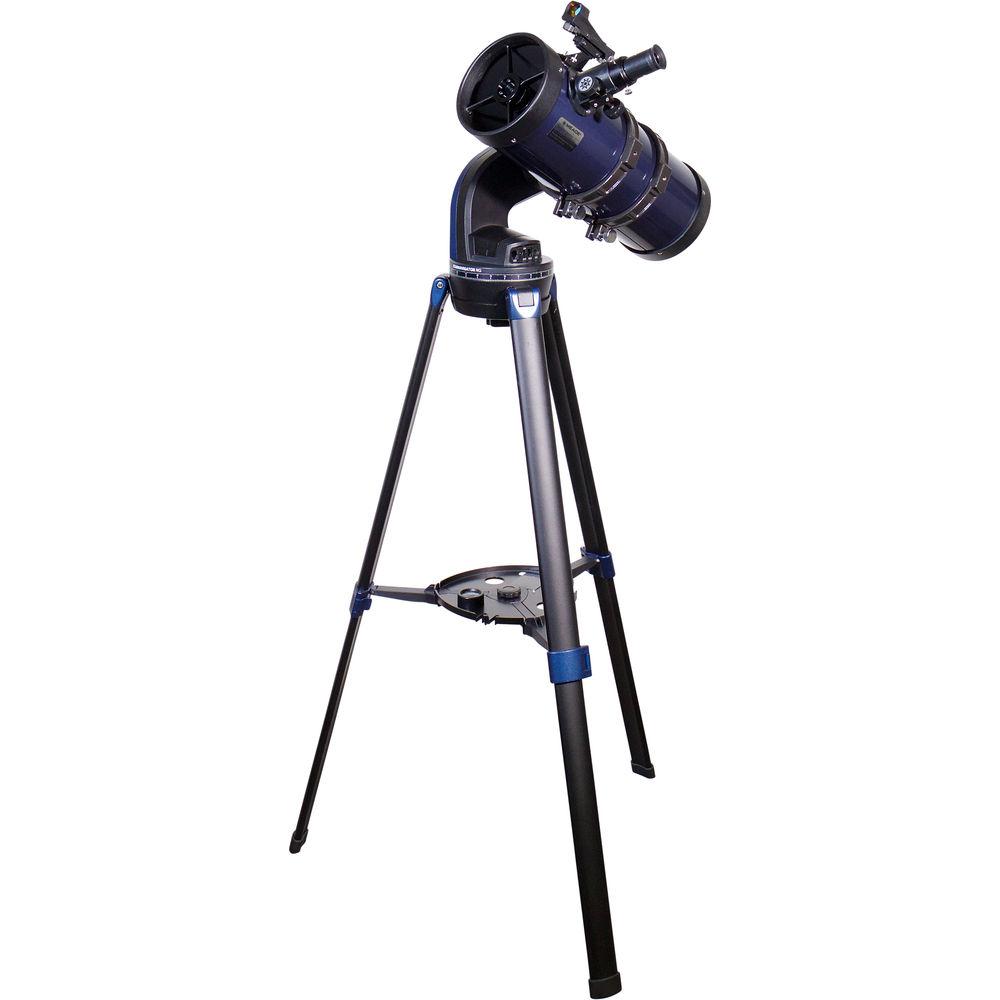

User Manual for Meade StarNavigator NG 130mm f 7.7 GoTo Reflector Telescope Travel Pack Click to enlarge the picture
Contents of the user manual for the Meade StarNavigator NG 130mm f 7.7
- Product category: Reflectors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Reflectors
 |
User manual for the Meade StarNavigator NG 130mm f 7.7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|

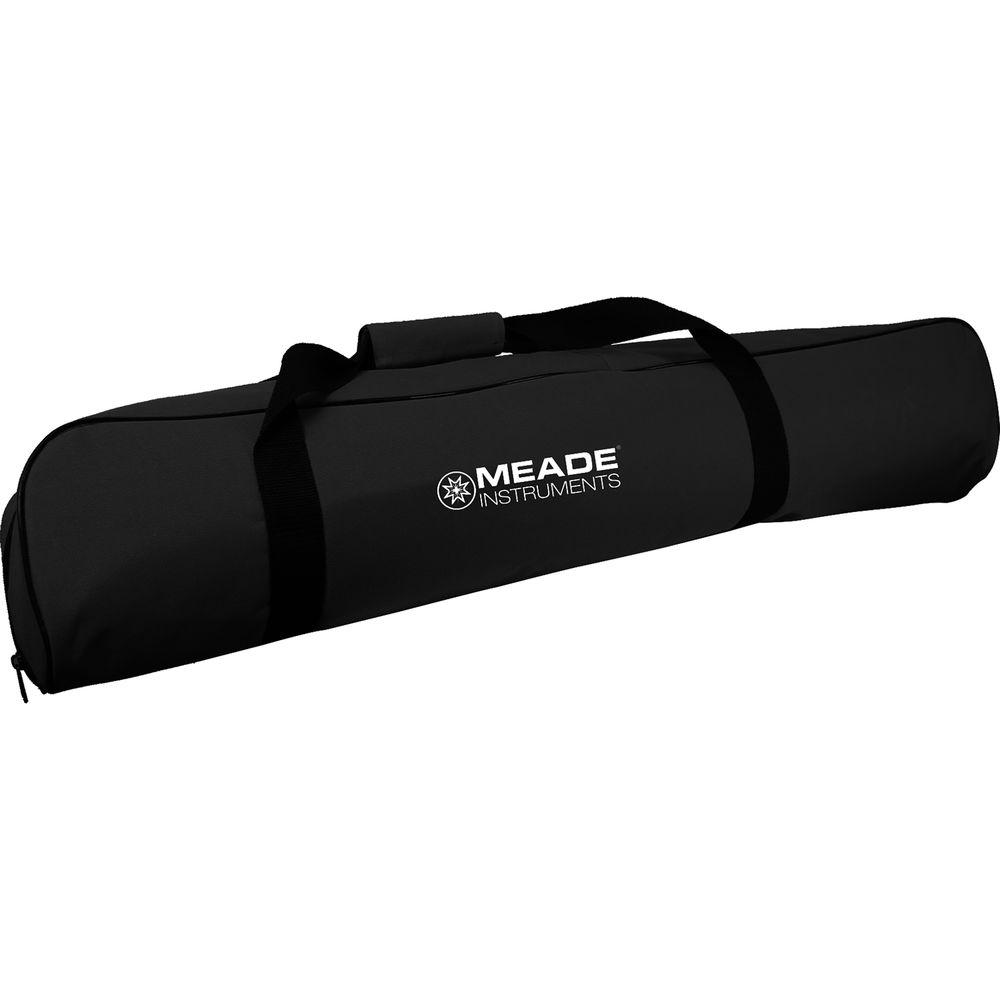

Product description Meade Instruments' provides a complete observational platform to observe beyond our solar system with the StarNavigator NG 130mm f/7.7 GoTo Reflector Telescope Travel Pack, and includes a convenient travel bag to safely and easily carry it far away from the distractions and light-pollution of civilization.Configured with a Newtonian-reflector optical path, it features an oversized parabolic primary mirror that helps correct chromatic aberration to produce images with accurate color representation across the entire field of view. Its long focal length, combined with the large aperture produces bright and clear images of objects within our solar system, plus deep-sky subjects such as galaxies, nebulae, globular clusters, and binary stars.Driving the dual-axis DC servo motors in the single-arm fork mount is the AudioStar hand controller. An updated iteration of their iconic AutoStar, this computer controller enables quick and easy set up and alignment to get you observing faster, while offering guided tours and audio commentary on 500 of its over 30,000 objects in the internal database. Capable of multiple tracking speeds, the mount and controller function together to provide smooth and precise tracking of fast-moving objects like the Moon and slower deep-sky subjects like nebulae. The mount is powered by eight user-supplied AA batteries, which also supplies power to the AudioStar controller via the coiled communications cord.A full-sized adjustable-height aluminum tripod provides solid support for the mount and OTA while still being lightweight and portable. Two eyepieces are included that provide 38.5x and 111x magnifications, and the 1.25" focuser drawtube will accept any optional 1.25" eyepieces and accessories that are widely available separately. To help with set-up and alignment, Meade provides a red-dot finder that allows users to simply put the dot on a subject for fast and precise object location. - Optical Tube
-
- 130mm aperture
- f/7.7 focal ratio
- 1000mm focal length
- Newtonian-reflector optical configuration
- Parabolic primary mirror helps to reduce chromatic aberration for accurate color rendition
- Multi-coated lenses reduce reflection to boost image brightness and contrast
- Resolution: 0.9 arc sec
- Rack-and-pinion focuser with 1.25" drawtube
- Vixen-style dovetail mounting plate

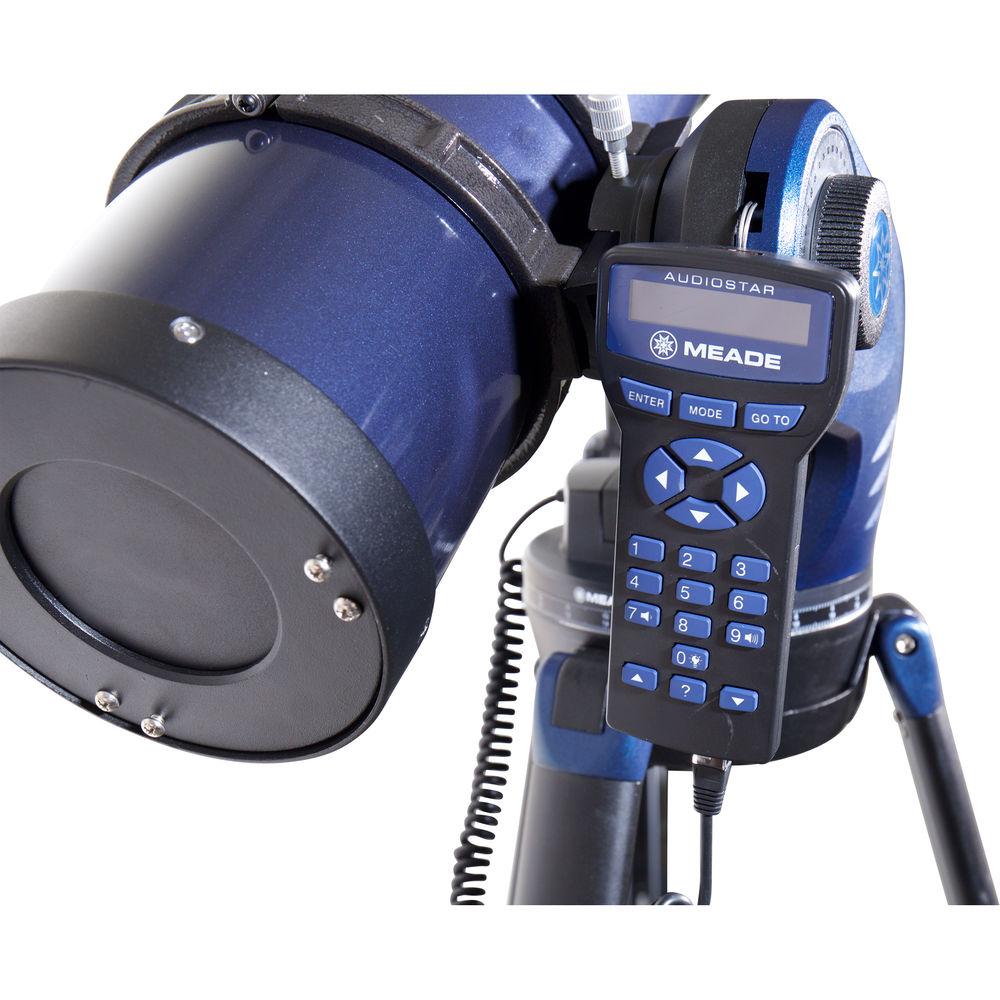

- AudioStar Controller
-
- 2-line, 18-character/line red LED display with 20-button red backlit user interface
- Multiple alignment procedures: Easy (2-star), 2-star, and 1-star
- 30,000+ object database, flash updateable via the Internet
- Guided tours based on current location, date, and time
- User-defined guided tour allows user to program tour based on personal interests
- Astronomer Inside: Audio commentary about 500 objects including the Moon, planets, galaxies, and nebulae; information includes size, distance, temperature, and mythology
- Download the latest satellite, comet, asteroid information via the Internet
- Nine slew speeds: 1x, 2x, 8x, 16x, 64x, 0.5°/sec, 1°/sec, 1.5°/sec, Max
- RS232 port for remote PC control
- Built-in red utility light illuminates star charts and accessories without affecting night-adjusted vision
Database:- Planets, Moon, and Sun
- Stars, double stars, and clusters
- Constellations, comets, asteroids, and meteor showers
- Messier and SAO catalogs
- Sunrise and Sunset
- Moonrise, Moonset, and phases
- Lunar and solar eclipses
- Equinox and Solstices
- Mount and Tripod
-

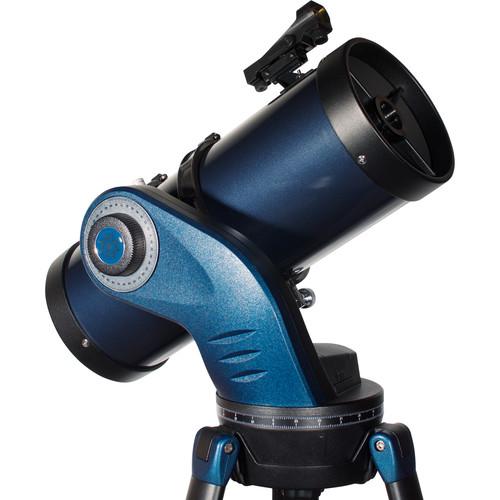

Mount:- Single-fork arm mount
- Dual-axis DC servo motors provides smooth and accurate variable-rate tracking
- Powered by eight user-suppled AA batteries
- Combination compass and bubble level to assist set-up and alignment
- Vixen-style dovetail saddle accepts other OTAs with a Vixen plate
Tripod:- Durable aluminum tripod
- Adjustable height with independent locking leg sections
- Center tray holds eyepieces, filters, phones, and flashlights
- Included Accessories
-
- 9mm eyepiece produces 111x
- 26mm eyepiece produces 38.5x
- Unmagnified wide-field red-dot finder with adjustable brightness
UPC: 709942998269 In the Box Meade StarNavigator NG 130mm f/7.7 GoTo Reflector Telescope Travel Pack AudioStar GoTo Hand Controller 9mm Eyepiece 26mm Eyepiece Bubble Level/Compass Red-Dot Finder with Bracket Tripod with Accessory Tray Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade StarNavigator NG 130mm f 7.7 GoTo Reflector Telescope Travel Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 218007 Specs | | | Optical Design | Newtonian Reflector | | Aperture | 130 mm / 5.1" | | Focal Length | 1000 mm | | Focal Ratio | f/7.7 | | Focuser | Dual-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Yes | | Mounting System | Vixen Style | | | | Type | Motorized; Alt-Azimuth | | GoTo Capability | Yes | | | | Type | Adjustable | | Material of Tripod | Aluminum | | | | Batteries | 8 x AA | | GPS | None | | Wi-Fi | None | | Assembled Dimensions | 58.0 x 24.0 x 24.0" / 147.0 x 61.0 x 61.0 cm | | Weight | 15.3 lb / 6.9 kg (Fully Assembled) | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 36.0 x 19.0 x 9.2" |
