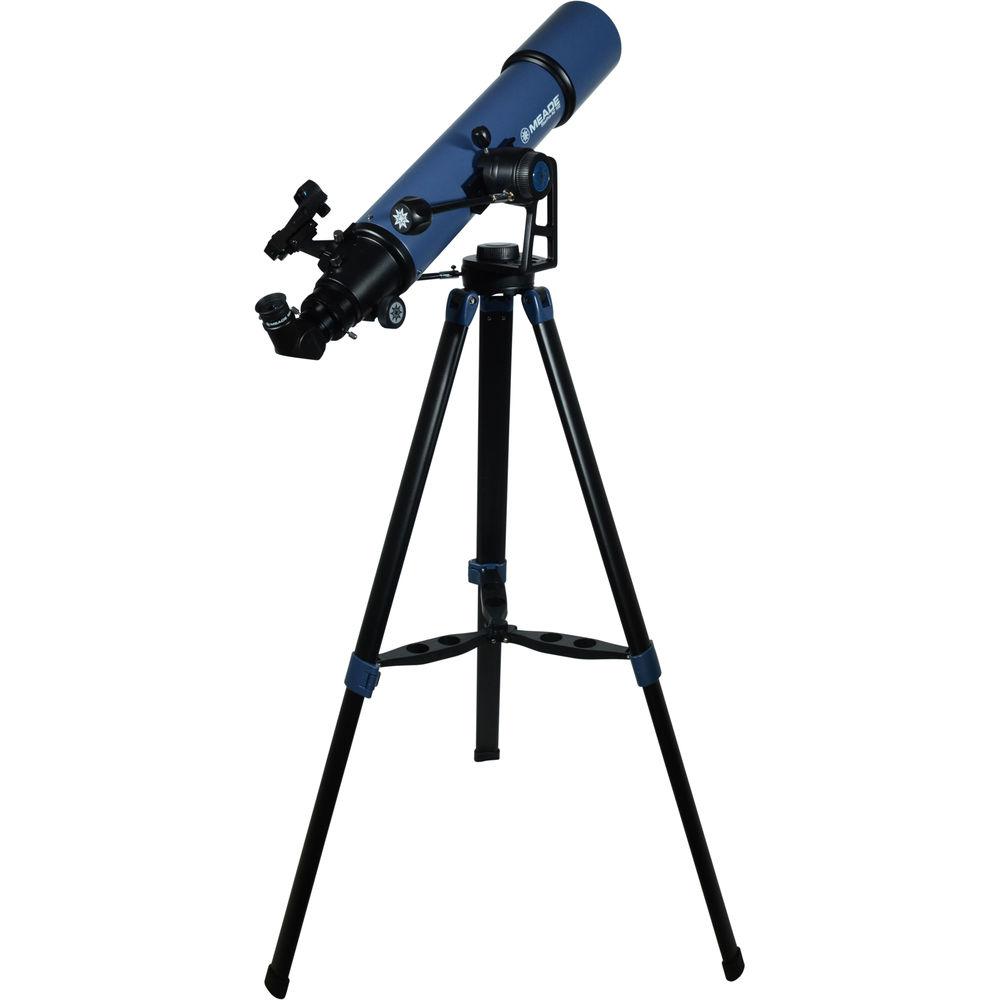

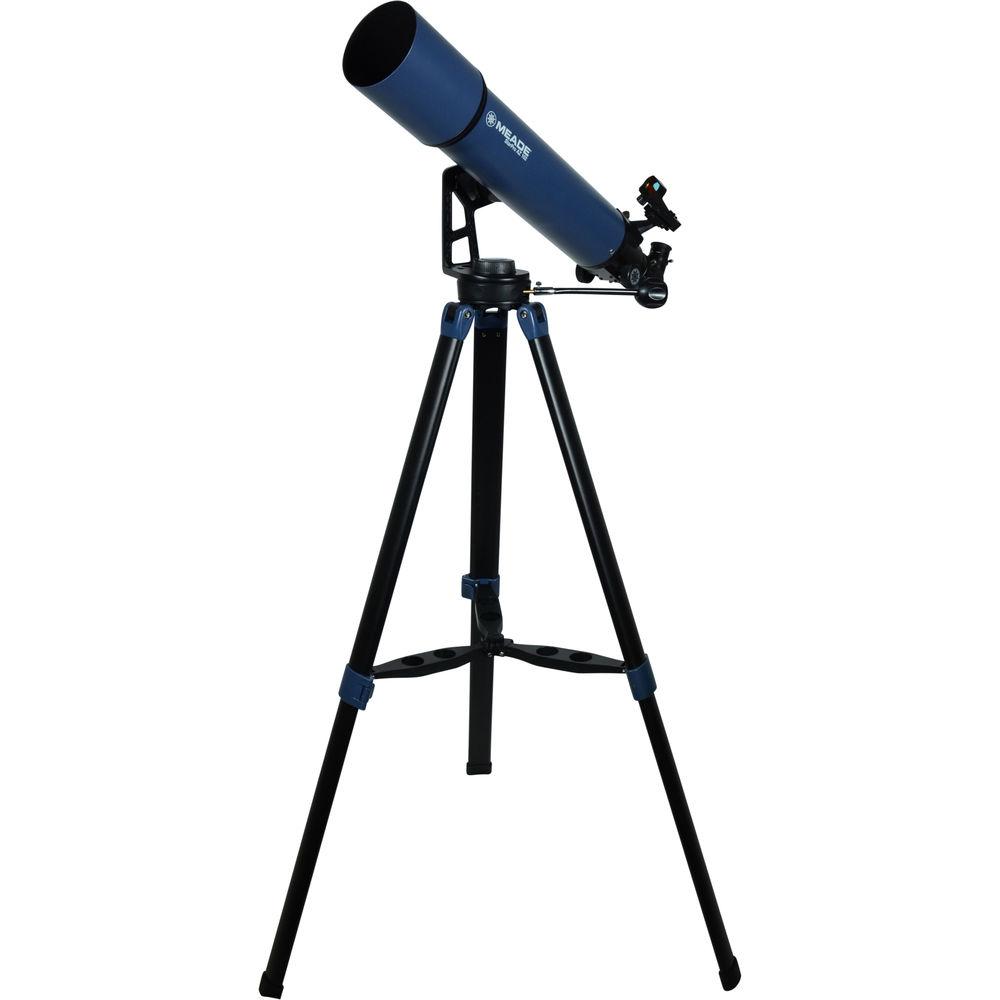

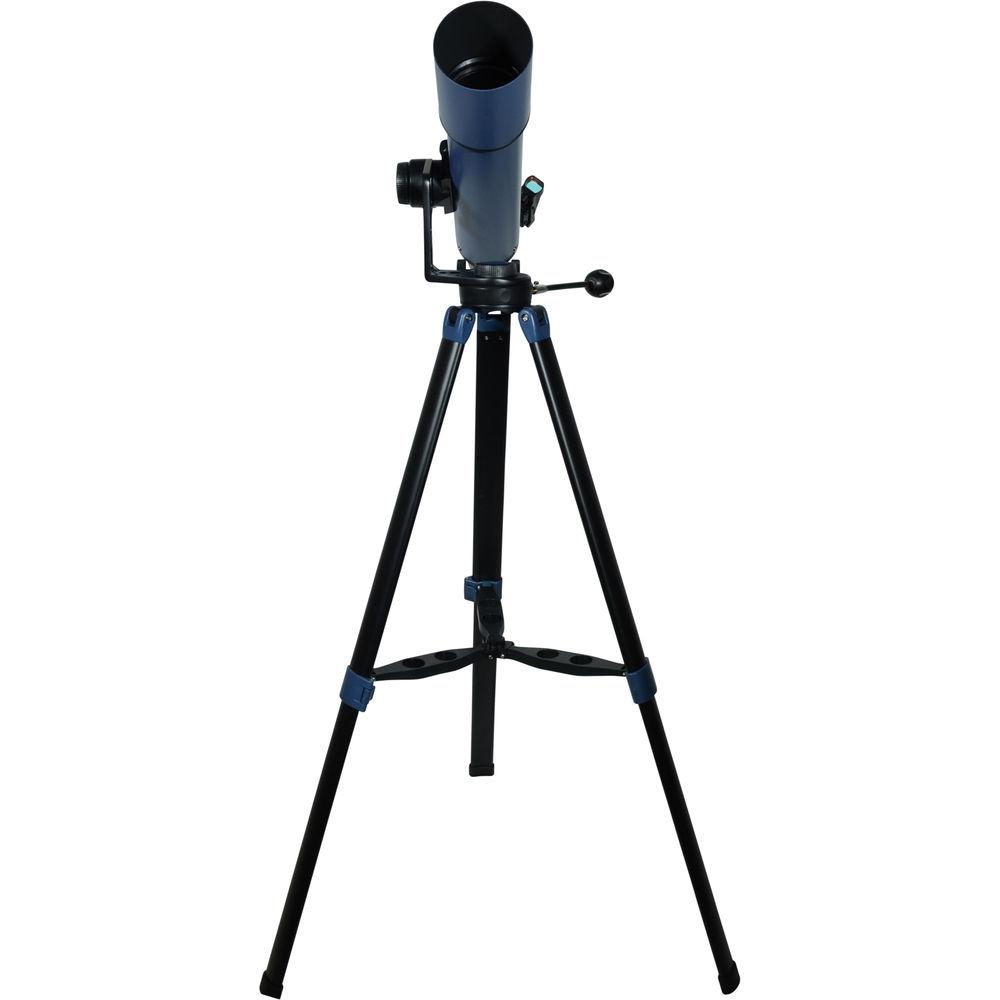

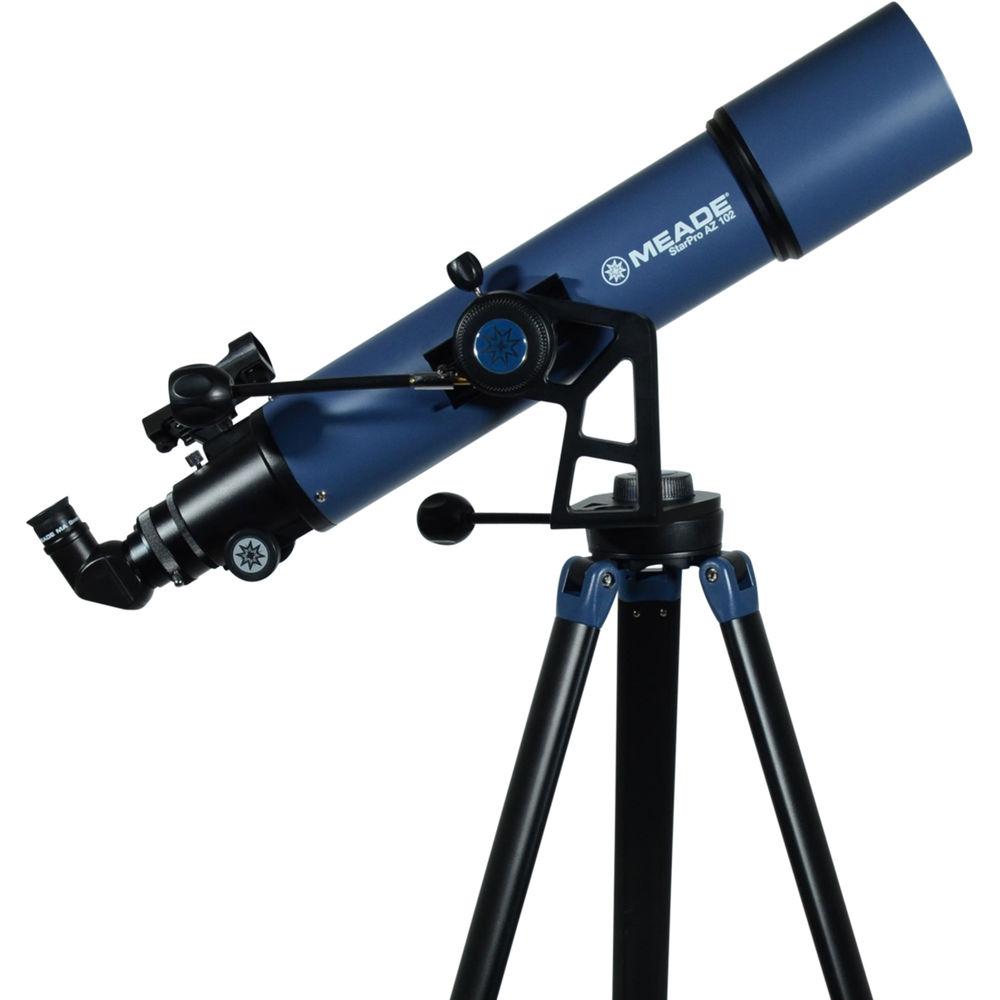

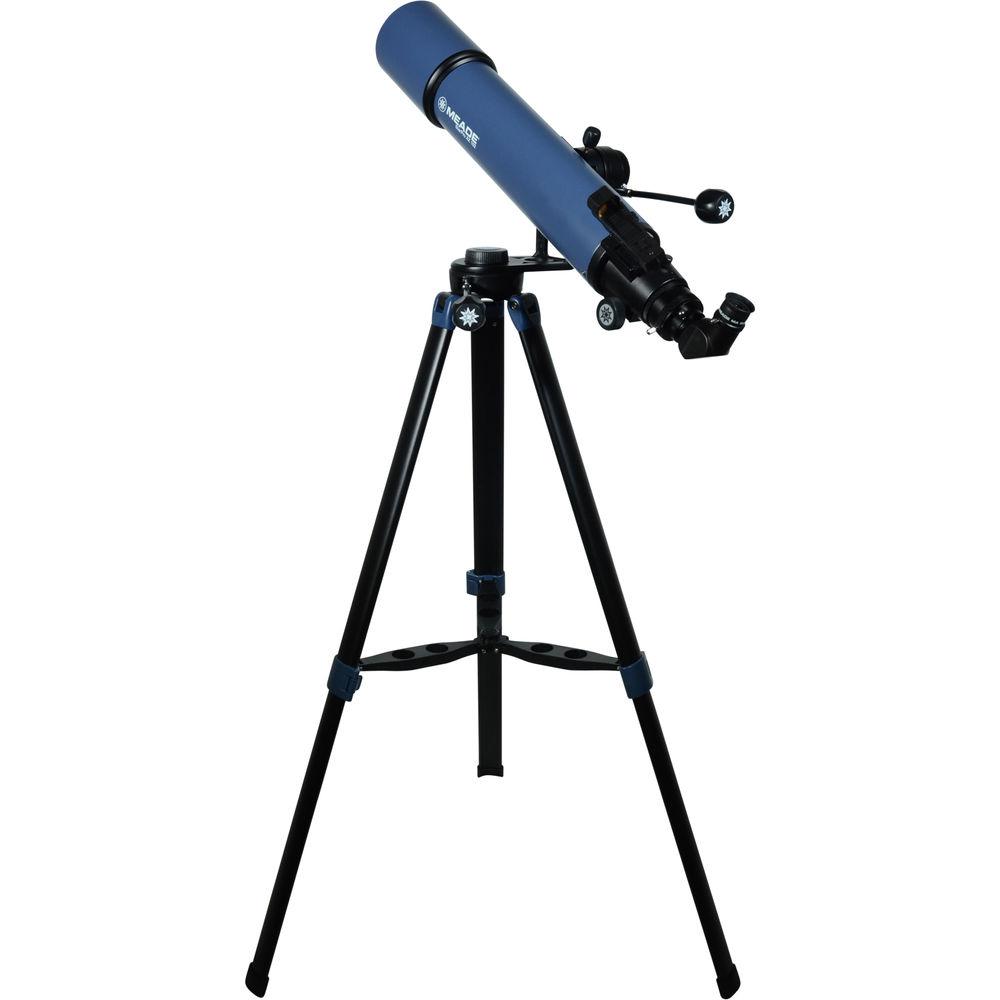

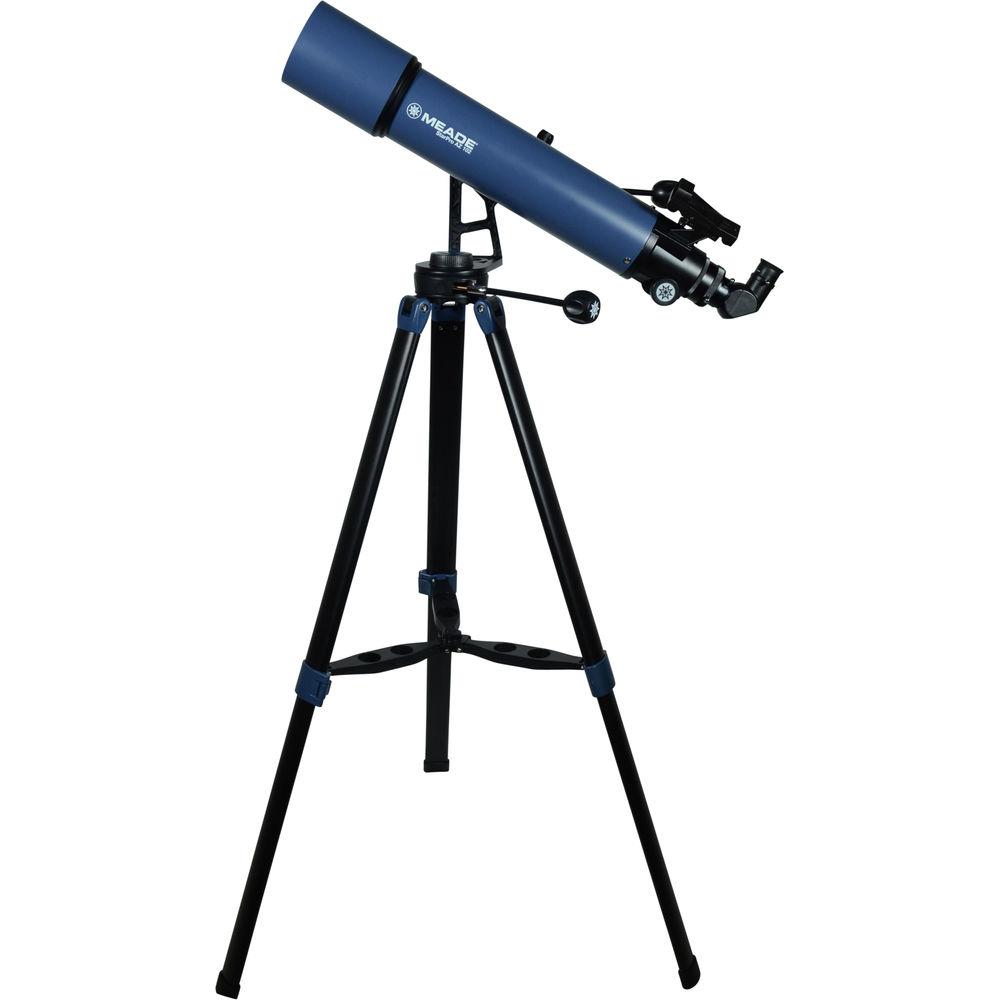

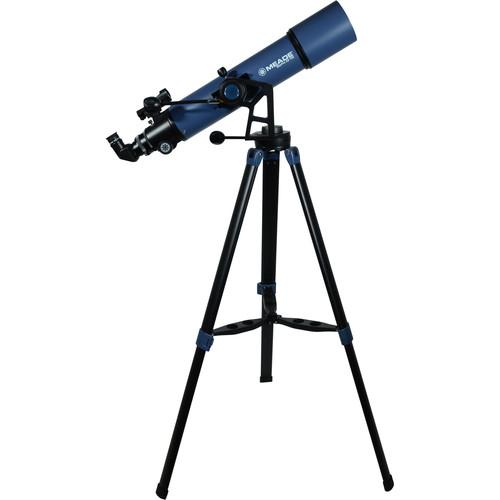

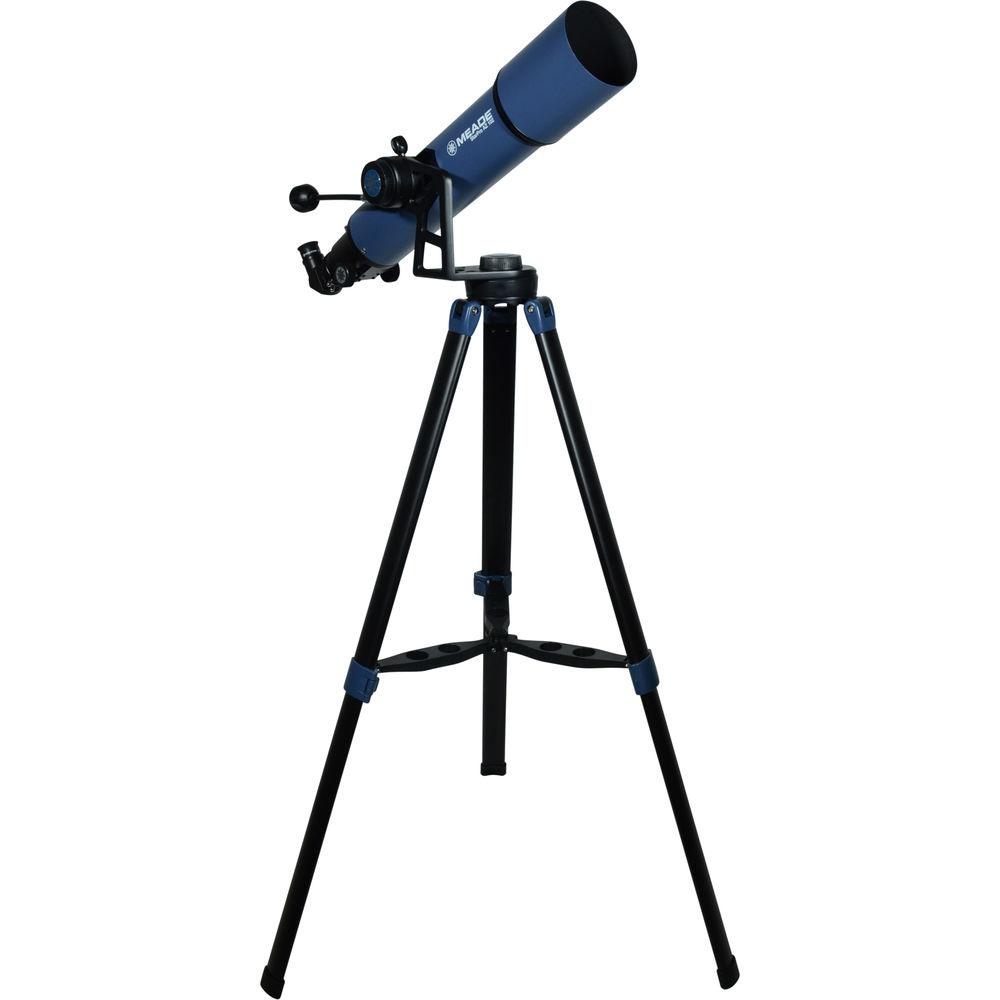

User Manual for Meade StarPro 102mm f 6.5 Achro AZ Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Meade StarPro 102mm f 6.5 Achro
- Product category: Refractors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Refractors
 |
User manual for the Meade StarPro 102mm f 6.5 Achro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Breaking into a triple-digit aperture this mid-range model in the series, the StarPro 102mm f/6.5 Achro AZ Refractor Telescope from Meade extends its reach so astronomers new to the hobby can enjoy detailed views of the moon's surface, see the rings of Saturn, the Martian polar ice caps, the striped bands of Jupiter, plus bright deep sky objects like binary stars, globular clusters, and galaxies. Meade also includes a variety of accessories that can allow you to use the StarPro as a conventional spotting scope to view Earthbound subjects as well.Its manual alt-azimuth mount has slow-motion controls for precise positioning and tracking, with a sturdy aluminum tripod that can be used by a wide variety of users—from tall to small. Three eyepieces provide 25x, 73x, and 105x magnifications with a 2x Barlow lens that doubles the magnification of each eyepiece for a wider range of observing possibilities. A 90° diagonal not only places your head in a comfortable viewing position, but its integrated erecting prism corrects the view for terrestrial use. Meade also includes a smartphone adapter that allows you to capture photos and video through the eyepiece to enjoy, share, and like. With its short optical tube the StarPro is extremely portable and at just under 11 pounds the entire telescope rig is easy to handle by astronomers of all ages. - Optical Tube Assembly Performance
-
- Large 102mm aperture is ideal for observing the moon, planets—such as Mars, Jupiter, and Saturn— bright deep sky objects like binary stars and galaxies, and all kinds of Earth-bound subjects
- Short 660mm focal length produces a moderate magnification potential
- Fast f/6.5 focal ratio makes this an ideal telescope for capturing photos using the included smartphone adapter since images will be bright even at short exposure times
- Anti-reflection fully coated optics improve light transmission, color representation, and contrast
- Sturdy 1.25" rack-and-pinion focuser is able to carry the eyepieces and smartphone in the included adapter without flexing
- Optical tube, tripod, and mount weigh just under 11 pounds fully assembled for easy use and handling
- Mount and Tripod
- Mount:
- Manual alt-az mount
- Single fork-arm design reduces weight without sacrificing stability
- Control cables with large knurled knobs enable precision positioning and tracking
- Popular Vixen-style dovetail plate allows the OTA to be used on other mount heads
Tripod:- Vixen-style dovetail saddle accepts any small OTA outfitted with a compatible plate
- Aluminum tripod with accessory tray
- Adjustable height accommodates a wide variety of users and viewing positions
- Included Accessories

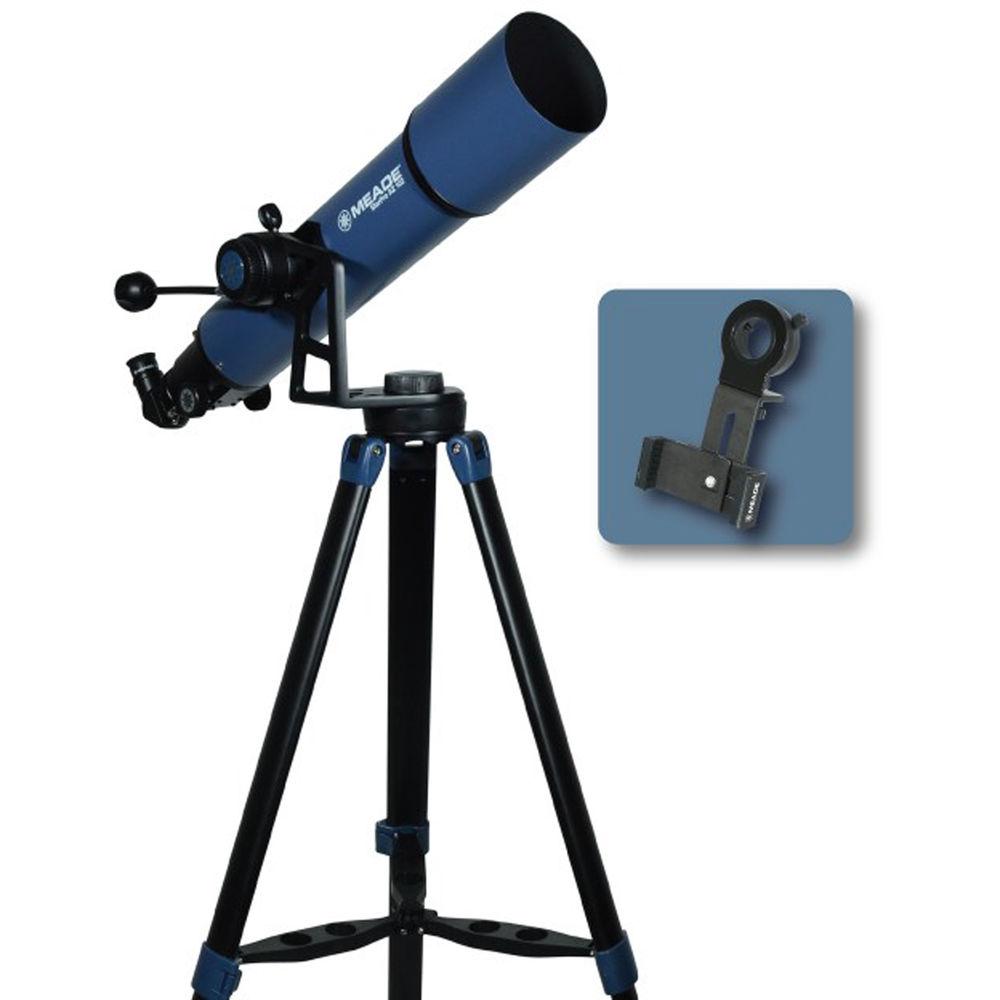

- Smartphone digiscoping adapter:
- Fits most popular smartphones up to 3.25" wide and 0.5" tall
- Allows you to take pictures and video through telescope eyepiece
- Fully adjustable for any camera lens placement
- Knurled adjustment knobs
- Locking eyepiece thumbscrews
- For eyepieces with removable eyecups
Eyepieces:- 1.25" diameter barrels
- Fold-down rubber eyecups
- Accept most standard filters and accessories
- 26mm eyepiece yields a low 25x magnification to maximize field of view for easier navigation
- 9mm eyepiece yields a moderate 73x magnification, making it ideal for lunar and planetary use
- 6.3mm eyepiece produces high 105x power for detailed observations
Barlow lens:- 2x power doubles the magnification of each eyepiece without affecting eye relief for easier viewing at high magnifications
- 1.25" nosepiece and holder
Diagonal:- 1.25" nosepiece and holder make it compatible with the most popular size eyepieces and accessories
- 90° angle places head in comfortable viewing position, especially when scope is aimed high overhead
- Erect-image prism corrects image horizontally and vertically for using scope as a conventional spotting scope
Finder- Red dot is easy to see at night
- Unmagnified view makes finding subjects fast and tracking moving subjects easy
- Mounting bracket included
UPC: 709942999860 In the Box Meade StarPro 102mm f/6.5 Achro AZ Refractor Telescope Aluminum Tripod Alt-Azimuth Mount with Control Cables 26mm Eyepiece 9mm Eyepiece 6.3mm Eyepiece 90° Erect-Image Diagonal Red Dot Finder with Bracket 2x Barlow Lens Digiscoping Eyepiece Smartphone Adapter AutoStar Suite Astronomer Edition Software DVD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade StarPro 102mm f 6.5 Achro AZ Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade StarPro AZ Specs | | | Optical Design | Achromatic Refractor | | Aperture | 102 mm / 4" | | Focal Length | 660 mm | | Focal Ratio | f/6.5 | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
