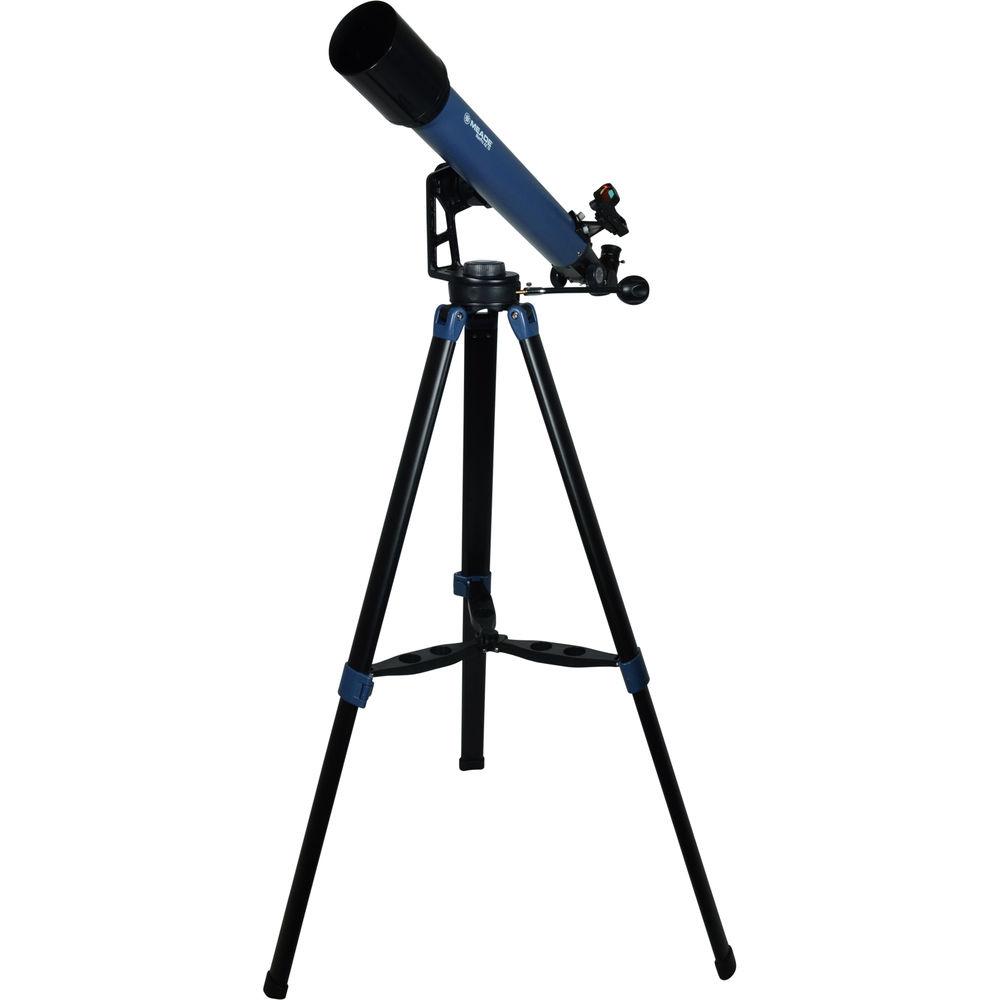

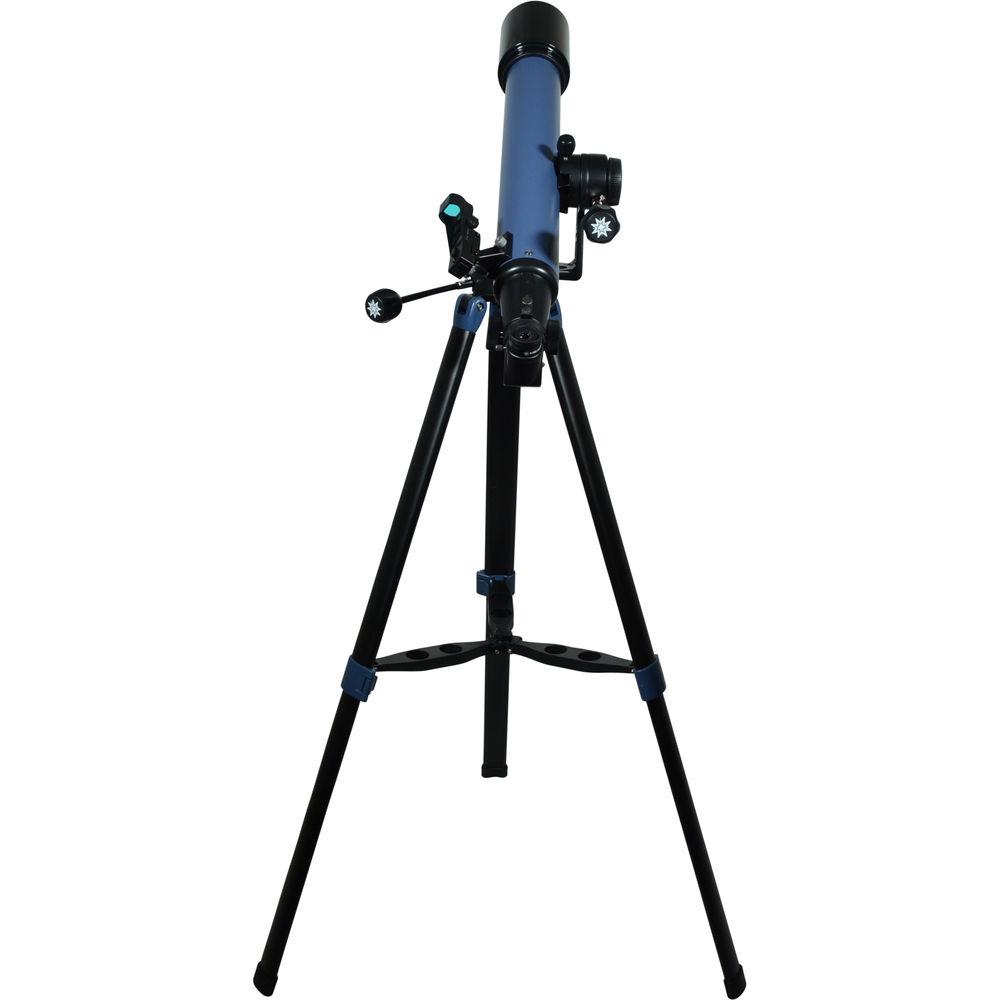

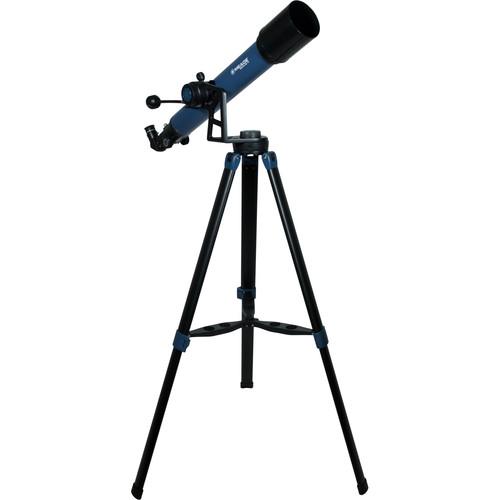

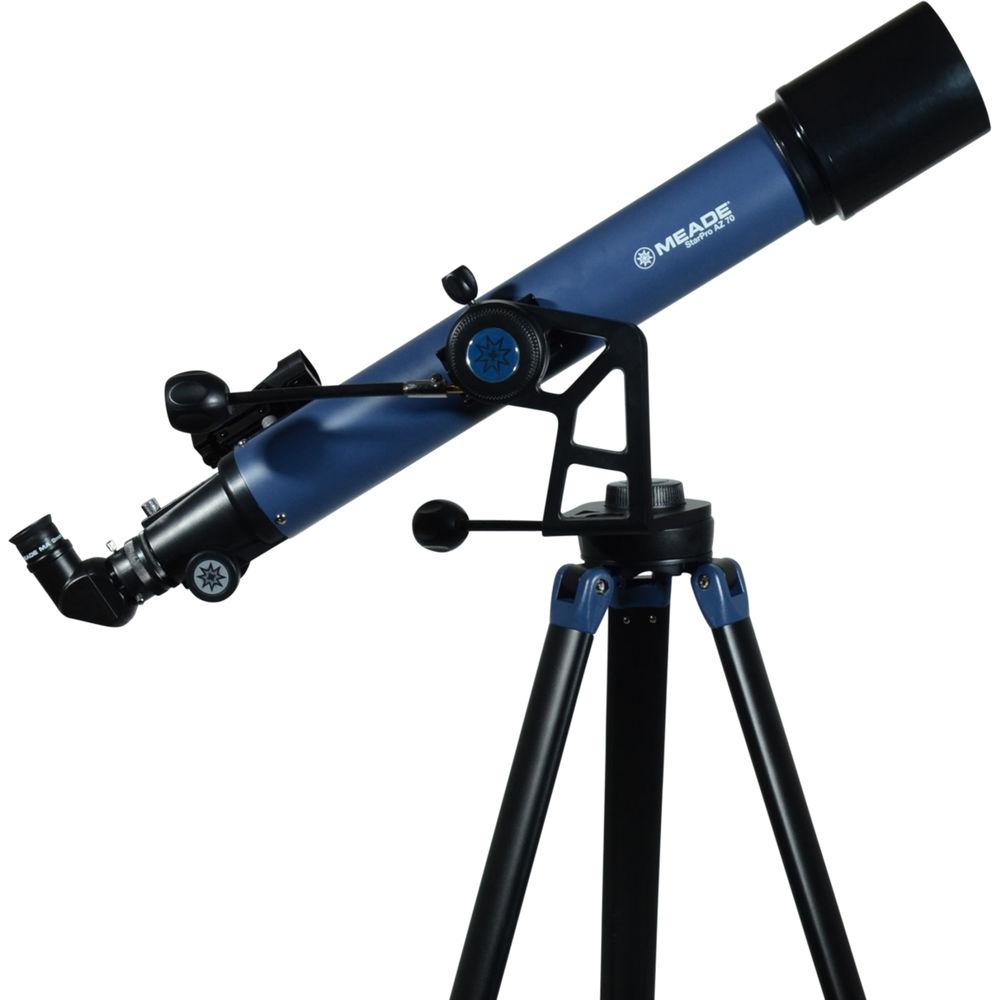

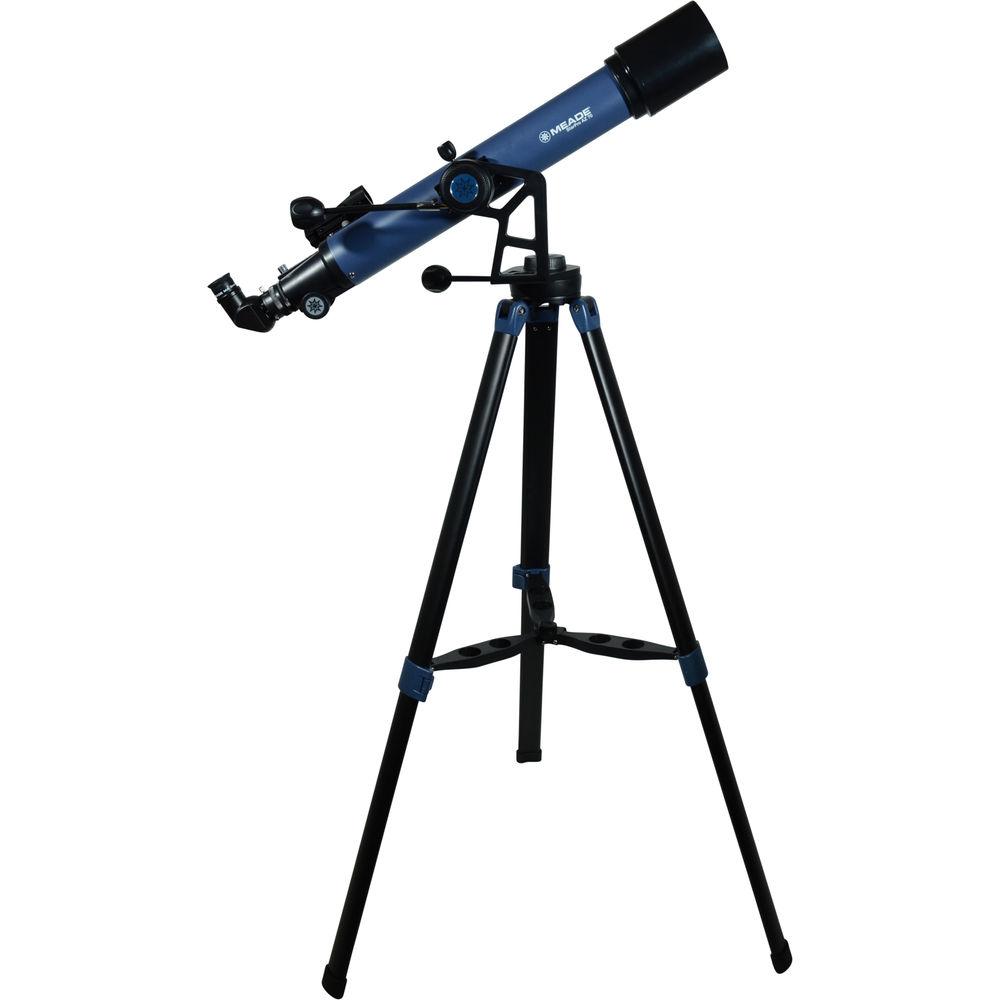

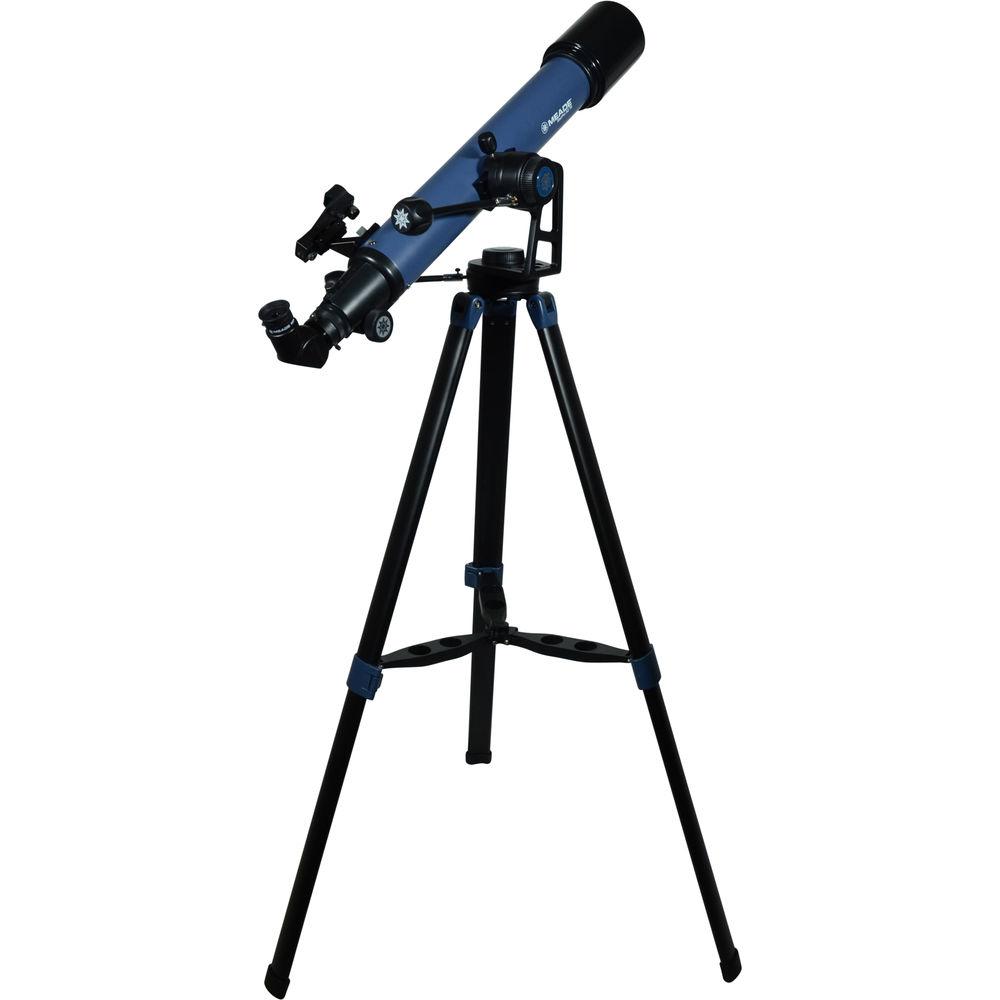

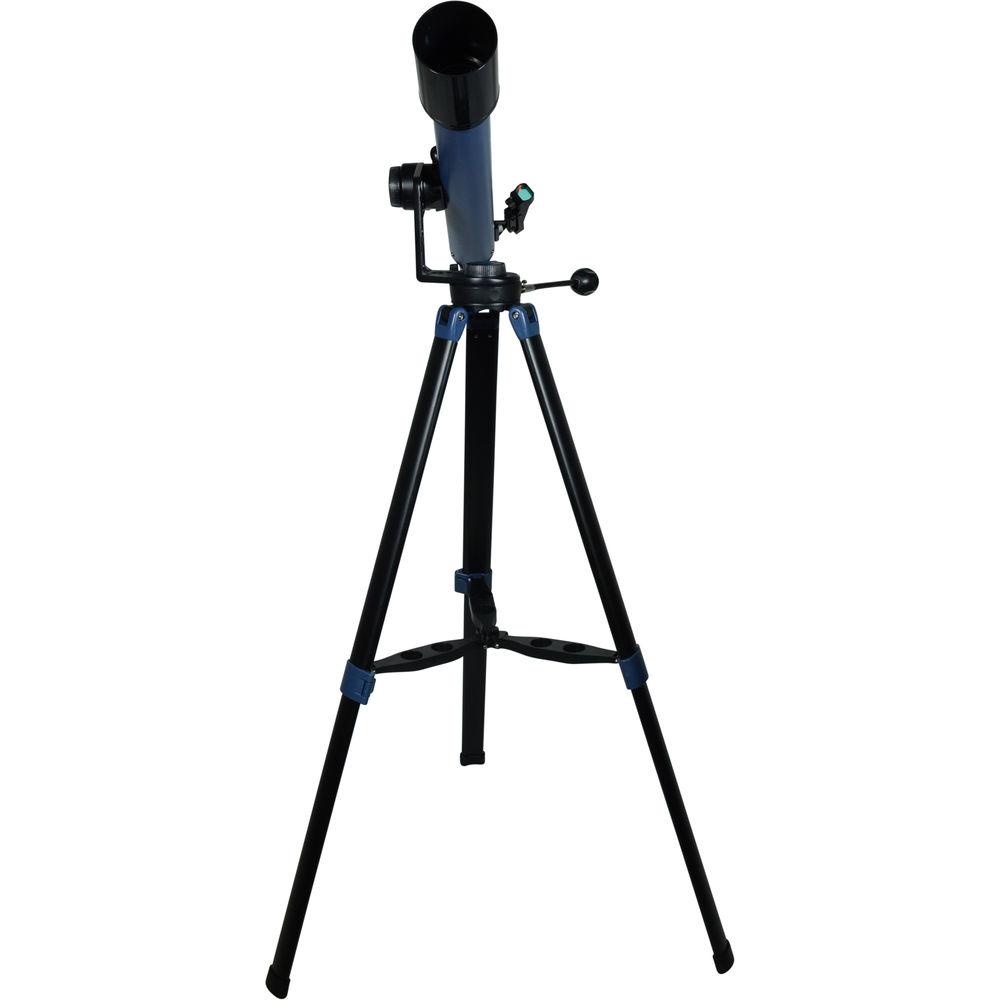

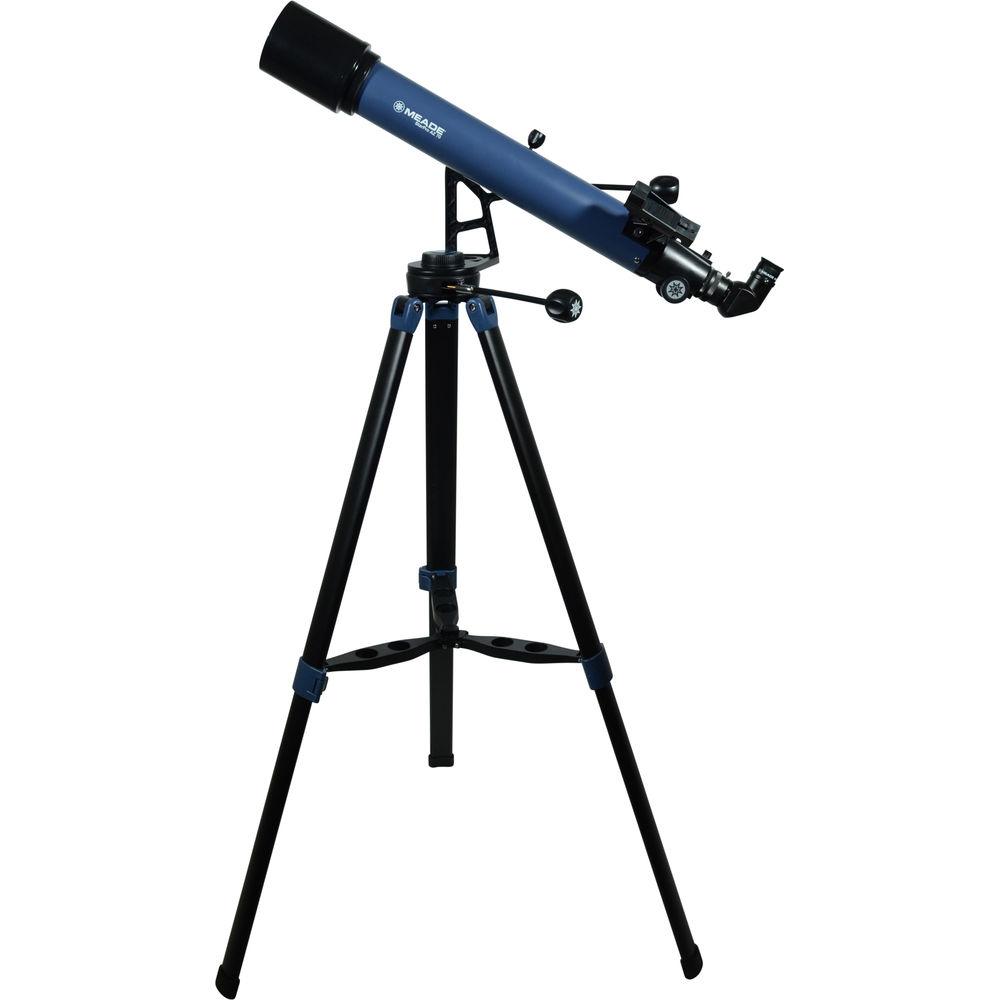

User Manual for Meade StarPro 70mm f 10 Achro AZ Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Meade StarPro 70mm f 10 Achro
- Product category: Refractors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Refractors
 |
User manual for the Meade StarPro 70mm f 10 Achro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description The StarPro 70mm f/10 Achro AZ Refractor Telescope from Meade is designed to introduce budding astronomers to the wonders of the night sky by giving them a complete setup for viewing the Moon, planets, and meteor showers—while providing accessories that can allow them to use it as a conventional spotting scope to view Earthbound subjects as well.Its manual alt-azimuth mount has slow-motion controls for precise positioning and tracking, with a sturdy aluminum tripod that can be used by a wide variety of users—from tall to small. Three eyepieces provide 27x, 78x, and 111x magnifications with a 2x Barlow lens that doubles the magnification of each eyepiece for a wider range of observing possibilities. A 90° diagonal not only places your head in a comfortable viewing position, but its integrated erecting prism corrects the view for terrestrial use. Meade also includes a smartphone adapter that allows you to capture photos and video through the eyepiece to enjoy, share, and like. - Optical Tube Assembly Performance
-
- 70mm aperture is ideal for observing the moon, planets, meteor showers, and all kinds of Earth-bound subjects
- 700mm focal length produces a high magnification potential
- f/10 focal ratio
- Anti-reflection fully coated optics improve light transmission, color representation, and contrast
- Sturdy 1.25" rack-and-pinion focuser is able to carry the eyepieces and smartphone in the included adapter without flexing
- Mount and Tripod
- Mount:
- Manual alt-az mount
- Single fork-arm design reduces weight without sacrificing stability
- Control cables with large knurled knobs enable precision positioning and tracking
- Popular Vixen-style dovetail plate allows the OTA to be used on other mount heads
Tripod:- Vixen-style dovetail saddle accepts any small OTA outfitted with a compatible plate
- Aluminum tripod with accessory tray
- Adjustable height accommodates a wide variety of users and viewing positions
- Included Accessories

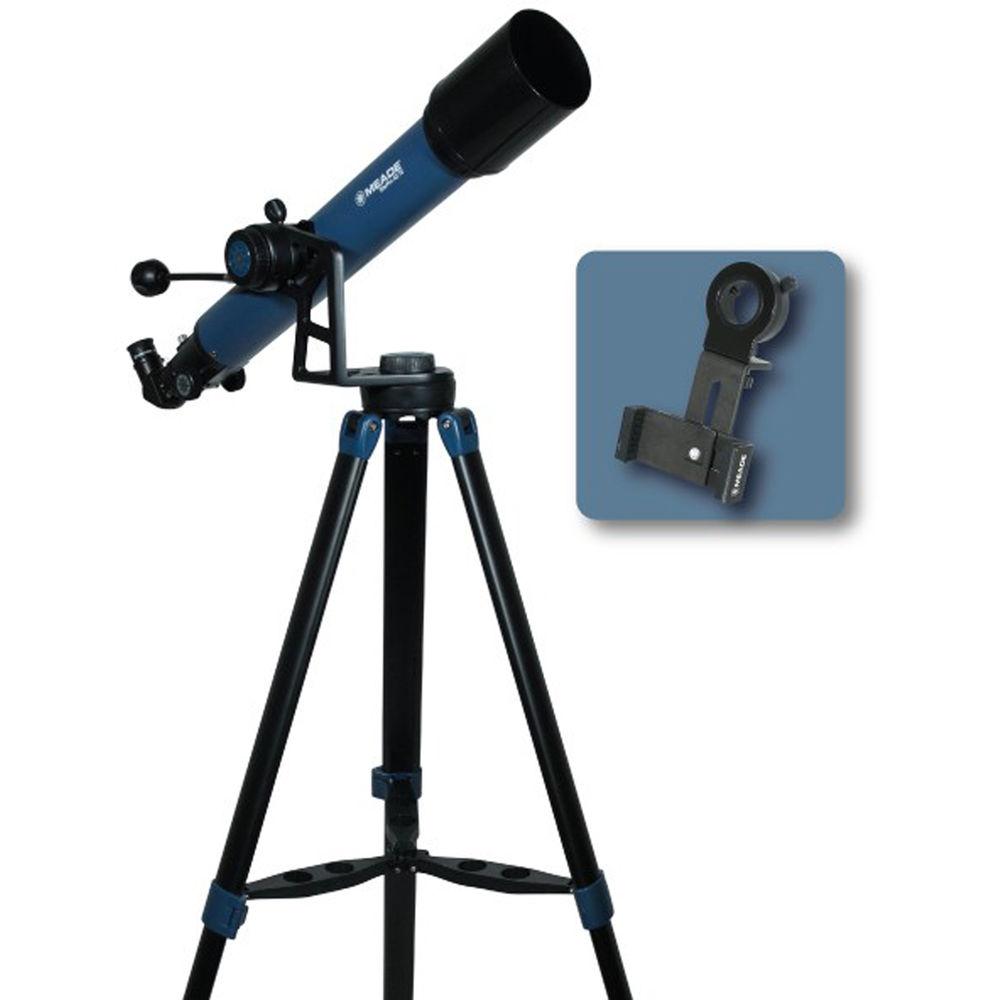

- Smartphone digiscoping adapter:
- Fits most popular smartphones up to 3.25" wide and 0.5" tall
- Allows you to take pictures and video through telescope eyepiece
- Fully adjustable for any camera lens placement
- Knurled adjustment knobs
- Locking eyepiece thumbscrews
- For eyepieces with removable eyecups
Eyepieces:- 1.25" diameter barrels
- Fold-down rubber eyecups
- Accept most standard filters and accessories
- 26mm eyepiece yields a low 27x magnification to maximize field of view for easier navigation
- 9mm eyepiece yields a moderate 78x magnification, making it ideal for lunar and planetary use
- 6.3mm eyepiece produces high 111x power for detailed observations
Barlow lens:- 2x power doubles the magnification of each eyepiece without affecting eye relief for easier viewing at high magnifications
- 1.25" nosepiece and holder
Diagonal:- 1.25" nosepiece and holder make it compatible with the most popular size eyepieces and accessories
- 90° angle places head in comfortable viewing position, especially when scope is aimed high overhead
- Erect-image prism corrects image horizontally and vertically for using scope as a conventional spotting scope
Finder- Red dot is easy to see at night
- Unmagnified view makes finding subjects fast and tracking moving subjects easy
- Mounting bracket included
UPC: 709942999839 In the Box Meade StarPro 70mm f/10 Achro AZ Refractor Telescope Aluminum Tripod Alt-Azimuth Mount with Control Cables 26mm Eyepiece 9mm Eyepiece 6.3mm Eyepiece 90° Erect-Image Diagonal Red Dot Finder with Bracket 2x Barlow Lens Digiscoping Eyepiece Smartphone Adapter AutoStar Suite Astronomer Edition Software DVD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade StarPro 70mm f 10 Achro AZ Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade StarPro AZ Specs | | | Optical Design | Achromatic Refractor | | Aperture | 70 mm / 2.8" | | Focal Length | 700 mm | | Focal Ratio | f/10 | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
