MediaClone SuperCopier 8" SAS Hard Drive

Search your instruction manual in PDF to download

User Manual for MediaClone SuperCopier 8" SAS Hard Drive Duplication Unit

Click to enlarge the picture
MediaClone SuperCopier 8" SAS Hard Drive Duplication Unit Contents of the user manual for the MediaClone SuperCopier 8" SAS Hard Drive
  • Product category: Drive Duplicators MediaClone
  • Brand: MediaClone
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MediaClone Drive Duplicators

MediaClone SuperCopier 8" SAS Hard Drive Duplication Unit MediaClone SuperCopier 8" SAS Hard Drive Duplication Unit
User manual for the MediaClone SuperCopier 8" SAS Hard Drive contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MediaClone product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MediaClone user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MediaClone product will considerably shorten its lifespan!



Product description

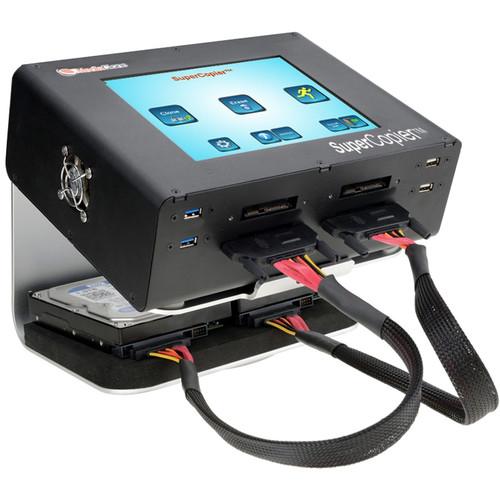

The SuperCopier 8" SAS Hard Drive Duplication Unit from MediaClone can duplicate, clone, format, and erase hard drives. The duplication unit has a built-in 8" 800 x 600 color touchscreen display. It's also equipped with an e-SATA port, four SAS/SATA ports, six USB 3.0 ports, two USB 2.0 ports, and four LED power indicators. The SuperCopier application can clone 1:3/2:2 SAS drives, up to 1:10 SATA drives (with the use of USB 3.0 to SATA adapter), and up to 1:5 USB 3.0 devices.

You can choose up to 12 devices in one session and can also combine multiple sessions in a run. A combination of SAS/SATA and USB devices can be combined in one session. All the devices that are running in one session will start and finish operation at the same time. You can run a continuous mode, where each device is in a separate session. You can also run a batch mode where you can choose a group of devices to run together.
  • Mirror-duplication mode makes a 100% bit-by-bit image copy of a drive
  • Quick-copy duplication mode clones the file system automatically by scanning and detecting all the partitions on the source drive, scaling partitions by user selection, adjusting partitions, and relocating partitions.
  • Application designed with easy-to-navigate icons and screens
  • You can reassign ports to be source ports or target ports for multiple-session clone operations
  • Supports SSD and multi-media cards
  • Top speed for duplication of data from one source drive up to three target drives simultaneously: 31 GB/minute for SSD and 8.2 GB/minute for 1TB drives
  • Erase up to 10 devices and support DoD and Security Erase
  • Format drives with NTFS, exFAT, FAT32, HFS+ (Mac), and EXT4 (Linux) file systems
  • Support SAS/SATA/e-SATA/USB/IDE/Micro-SATA/Mini-SATA/SCSI, 1394/M.2 NVME
UPC: 646117841268 In the Box MediaClone SuperCopier 8" SAS Hard Drive Duplication Unit
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the MediaClone SuperCopier 8" SAS Hard Drive Duplication Unit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    MediaClone SCR-0016-10D Specs

    CPU i7 Quad Core
    Memory 8 GB DDR4 RAM
    Display 8" (20.3 cm) LCD color touchscreen (800 x 600)
    PCIe Gen 3
    Controller 6 Gb/s SAS/SATA up to 37 GB/minute
    Ports 1 x e-SATA
    4 x SAS/SATA
    6 x USB 3.0
    2 x USB 2.0
    1 x DisplayPort
    Power Supply Universal auto switching 150 W UL/CE/PSE approved
    Input Voltage 100 to 240 V / 50 to 60 Hz
    OS Ubuntu 64-bit
    Environment Temperature: 40 to 130°F (5 to 55°C)
    Relative Humidity: 20 to 60% (non-condensing)
    Dimensions 10.6 x 3.8 x 7.7" (27.0 x 9.8 x 19.4 cm)
    Weight 6.0 lb (2.7 kg)
    Package Weight 10.6 lb
    Box Dimensions (LxWxH) 13.8 x 12.4 x 8.1"
