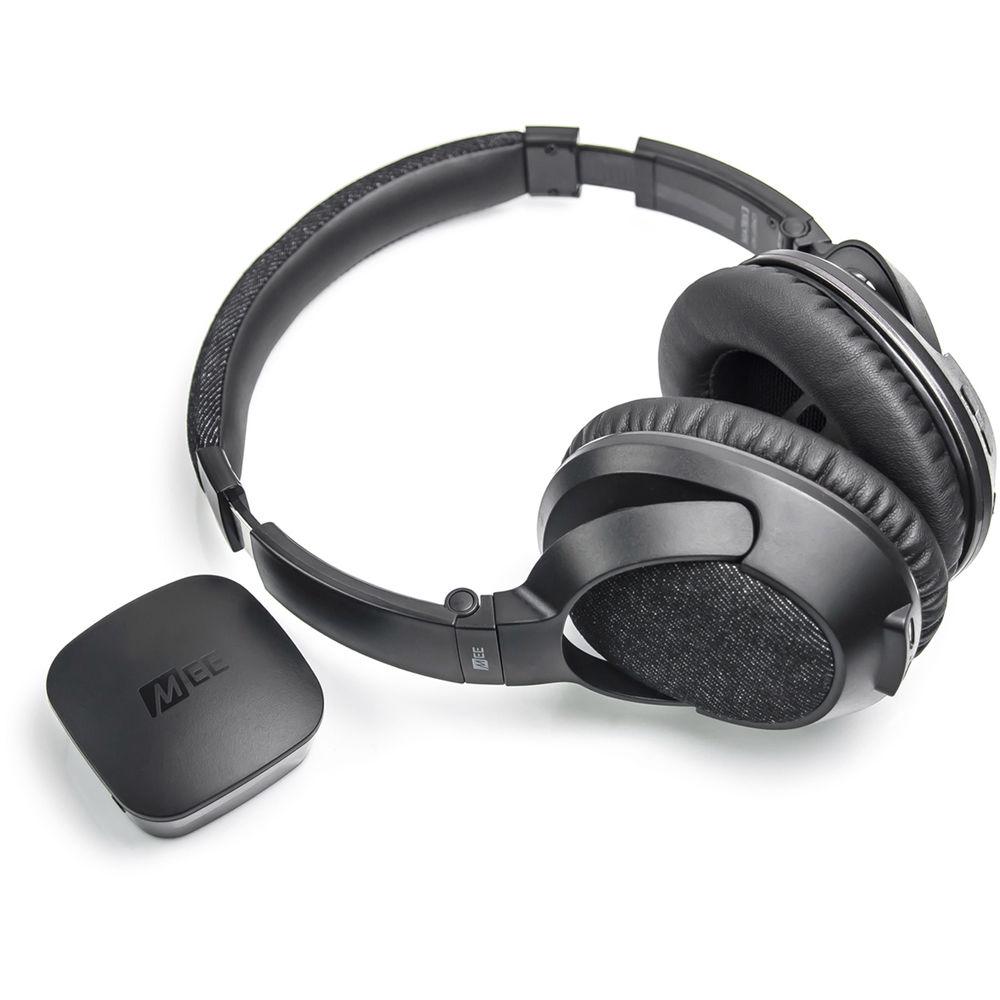

Product description The Connect Wireless Headphones System from MEE audio allows you to stream high-quality audio from virtually any source. Included in this bundle are the Matrix3 Bluetooth Headphones and a Connect Audio Transmitter.
The transmitter is equipped with Bluetooth 4.0 connectivity and can communicate with up to two devices at once, including the Matrix3 headphones, from up to 33' away. The transmitter connects to your audio source via 1/8", optical, or even stereo RCA (using the included adapter). Its built-in rechargeable battery will last up to 12 hours when transmitting to one device, or 10 hours when transmitting to two devices.
On the receiving end, the Matrix3 Headphones deliver high-fidelity audio in a comfortable, wear-all-day design. The headphones feature 40mm drivers that are designed to deliver enhanced balance, clarity, and accuracy that even discerning audiophiles will enjoy. The Matrix3 also utilizes Bluetooth technology, which allows it to communicate with the Connect transmitter, as well as other Bluetooth-enabled devices. In case no Bluetooth devices are handy, a 3.5mm wired connection is available. In addition to its listening functionality, the Matrix3 has a built-in mic that allows you to take calls, and intuitive buttons for controlling music playback. - Matrix3 Over-the-Ear Bluetooth Headphones Enjoy high-fidelity audio with the Matrix3 Over-the-Ear Bluetooth Headphones from MEE audio. This wireless headset features hi-res 40mm moving-coil drivers that are designed to deliver enhanced balance, clarity, and accuracy that even discerning audiophiles will enjoy. The Matrix3 utilizes Bluetooth technology, so you can stream your favorite songs from compatible Bluetooth devices from up to 30' away. In case no Bluetooth devices are handy, a 3.5mm wired connection is available.
In addition to its listening and streaming functionality, the Matrix3 has a built-in mic that allows you to take calls, and intuitive buttons for controlling music playback. Additional multipoint functionality will even let you manage media from two devices at the same time.
The Matrix3 was designed for all-day wear. Its high-grade materials, over-the-ear fit, and lightweight form factor allow you to wear them comfortably through even the longest listening sessions. Coupled with an all-day battery life, you'll be able to enjoy all your favorite albums and songs without pause. - HD Wireless Sound
- The Matrix3 combines MEE audio's experience in high-fidelity and professional audio with Bluetooth technology to deliver enhanced sound quality in a wireless form factor
- True Fidelity
- These headphones feature high-resolution 40mm moving-coil drivers that deliver enhanced balance and clarity
- Digital Audio Technology
- Bluetooth 4.0 technology with aptX and AAC codecs support provides high-resolution wireless audio streaming
- Designed for Comfort
- Sporting an over-the-ear design and lightweight form factor, the Matrix3 provides all-day comfort, while preventing sound leakage
- Built-In Headset Functionality
- Integrated high-quality microphone and intuitive controls let you take calls and control music playback with phones and tablets
- All-Day Battery Life
- Matrix3 provides up to 28 hours of talk time, 24 hours of media playback, and 1000 hours of standby time
- Easy Storage and Transport
- A multi-axis folding mechanism allows the Matrix3 to both fold flat and collapse to take up less space, making it easy to put them away inside the included carrying case
- Connect Dual-Headphone Bluetooth Audio Transmitter Enable Bluetooth wireless audio streaming from virtually any source with the MEE audio Connect Dual-Headphone Bluetooth Audio Transmitter. It is equipped with Bluetooth 4.0 connectivity and can communicate with up to two devices, such as Bluetooth-compatible headphones or speakers, up to 30' away. It will connect to your source via 1/8", optical, or stereo RCA via its included RCA to 1/8" adapter. At 2.2" square and 1.0" high, the Connect was designed to have a small footprint for easy placement. Its built-in rechargeable battery will last up to 12 hours when transmitting to one device, or up to 10 hours when transmitting to two devices.
- HD Wireless Sound for Your TV

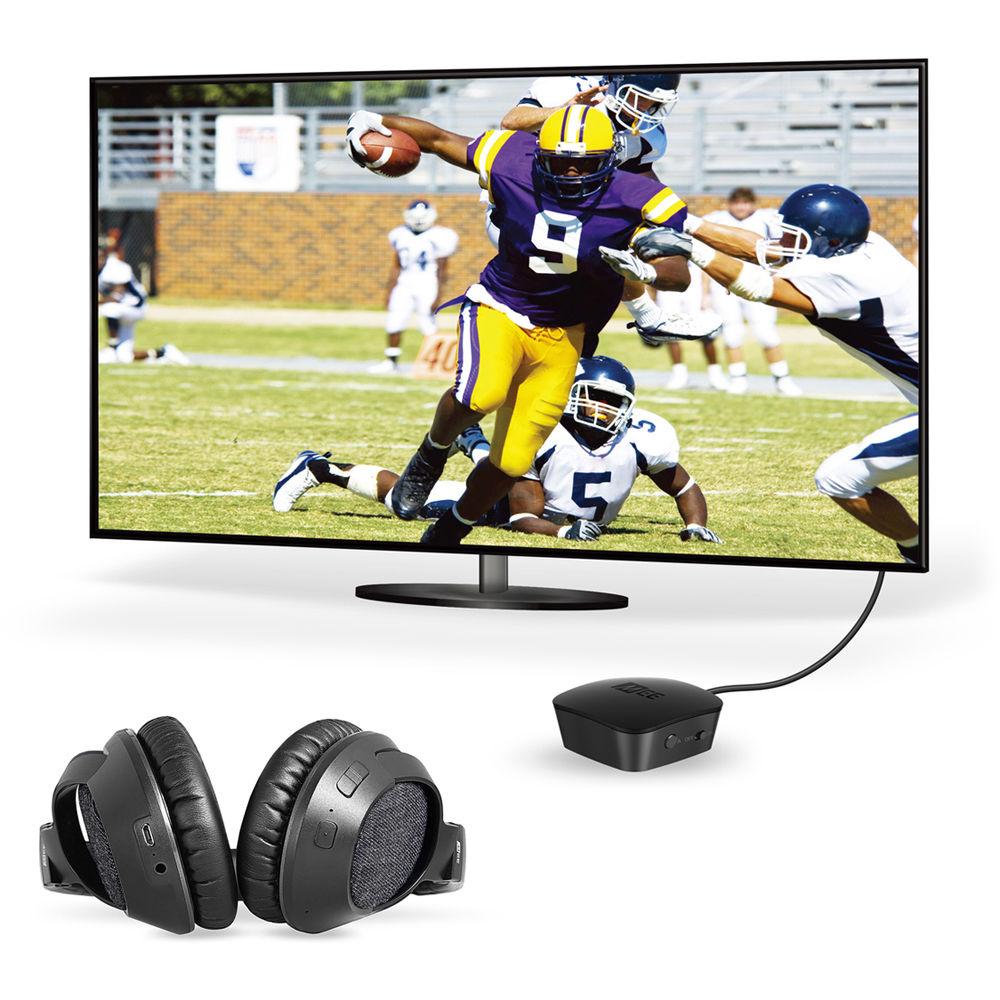

- The Connect wireless audio transmitter enables TVs and other devices to stream high-quality digital audio to up to two Bluetooth headphones or speakers, wirelessly. Experience full freedom of movement, listen without bothering those around you, and block out distractions with the Connect and your favorite pair of Bluetooth wireless headphones.
- Digital and Analog Connectivity
- The Connect offers both analog and digital audio inputs for wide compatibility with old and new TVs, as well as any other devices with optical (TOSLINK S/PDIF), RCA, or 1/8" stereo audio output, such as computers, tablets, digital streaming boxes (including Apple TV and Amazon Fire TV), and more.
- Bluetooth 4.0 Technology
- With Bluetooth 4.0 wireless technology, the Connect transmits clear, distortion-free digital audio to Bluetooth headphones, speakers, and other receivers up to 30 feet away. There is no white noise, no need to "tune" for the right frequency, and no way for a stranger to listen in on your audio stream simply by having similar headphones.
- Dual-Headphone Streaming
- Stream audio to up to two Bluetooth headphones or speakers simultaneously and adjust volume levels for each independently, allowing users to listen comfortably without bothering each other or those around them.
- aptX Support for High-Fidelity, Low-Latency Audio
- The Connect supports the aptX and aptX Low Latency Bluetooth audio codecs for high-fidelity, low-latency audio with aptX-enabled headphones. aptX is designed to provide the highest possible wireless audio quality, delivering full-range sound with crystal clarity, while aptX Low Latency also minimizes audio delay and prevents lip-synching issues.
- Travel-Friendly Design
- Its compact form factor and built-in rechargeable battery with up to 12 hours of playback make the Connect a suitable go-anywhere companion for your Bluetooth headphones. Add Bluetooth audio streaming to any device you encounter and share music wirelessly with up to two Bluetooth headphones, speakers, or receivers anywhere, anytime.
UPC: 616312625505 In the Box Bundle Items Matrix3 Over-the-Ear Bluetooth Headphones tqtaexyfctdbrbxqyxvcxxtberwcfeevdyfzbs Connect Dual-Headphone Bluetooth Audio Transmitter - Micro-USB Power/Charging Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the MEE audio Connect Wireless System with Matrix3 Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Matrix3 Over-the-Ear Bluetooth Headphones
| | | Driver Size | 1.57" / 40 mm | | Design | On-Ear (Supra-aural) | | | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 96 dB at 1 kHz / 1 mW | | Impedance | 32 Ohms | | | | Frequency Response | 100 Hz to 10 kHz | | Sensitivity | -32 dB | | | | Supported Audio Codecs | AAC, aptX | | Bluetooth Profiles | A2DP 1.2
AVRCP 1.4
HFP 1.5
HSP 1.2 | | Bluetooth Version | 4.0 | | Wireless Range | 30' / 10 m | | NFC | None | | | | Audio Connector | 1/8" / 3.5 mm | | Cable Length | 4.9' / 1.5 m | | Headphone Charging Port | Micro-USB | | | | Runtime | 28 Hours (Talk)
24 Hours (Music)
1000 Hours (Standby) | | Recharge Time | 2 Hours | | | | Dimensions (W x H x D) | 7.0 x 6.0 x 1.5" / 18.0 x 15.0 x 4.0 cm | | Weight | 7 oz / 199 g | | | | Box Dimensions (LxWxH) | 8.9 x 7.1 x 2.6" | - Connect Dual-Headphone Bluetooth Audio Transmitter
| Bluetooth Version | 4.0 with A2DP support | | Bluetooth Codecs | SBC, aptX, aptX Low Latency | | Bluetooth Range | Up to 30' (10 m) | | Connectors | 1 x Micro-USB (power and charging)
1 x 1/8" (3.5 mm) stereo
1 x Optical TOSLINK | | Battery | Built-in rechargeable | | Battery Capacity | 200 mAh | | Battery Life | With 1 Headphone: Up to 12 hours
With 2 Headphones: Up to 10 hours
Standby: Up to 44 hours | | Charging Time | 1.5 Hours | | Dimensions (L x W x H) | 2.2 x 2.2 x 1.0" (5.5 x 5.5 x 2.5 cm) | | Weight | 1.1 oz (31.0 g) | | | | Box Dimensions (LxWxH) | 6.3 x 5.4 x 2.5" |
