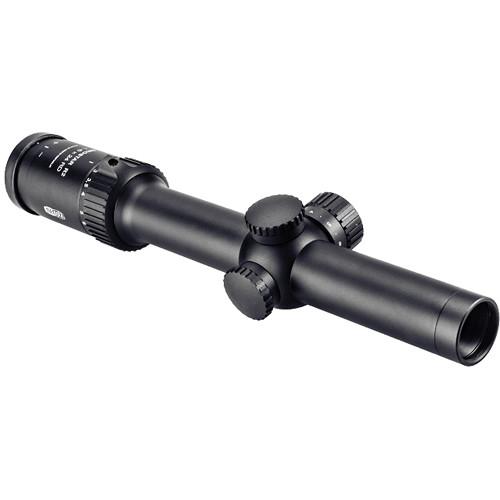

User Manual for Meopta 1-6x24 MeoStar R2 RD Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 1-6x24 MeoStar R2 RD Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta 1-6x24 MeoStar R2 RD Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description Meopta's 1-6x24 MeoStar R2 RD Riflescope combines state-of-the-art fully multi-coated optics with and a 4C illuminated reticle. The lenses feature a number of enhancements only present in high-end optics such as the MeoLux proprietary ion-assisted anti-reflection multi-coatings that provide unparalleled, 99.8% per lens, transmission of light and also reduce glare from stray light. With the MeoDrop proprietary hydrophobic coating the optical surfaces are also protected from collecting excessive water, grease, and oily stains. For extending durability and maintaining impeccable image quality, the outer surfaces are also treated with MeoShield anti-scratch coating that reduces susceptibility to scratches and abrasions. To maximize the effectiveness of this carefully engineered optical system, the scope is configured with the illuminated 4C reticle. Borrowing its pattern from the German #4 reticle, it features three bold posts, a brilliant red center target dot, and a thin crosshair. The RedZone 8 Illumination rheostat offers eight brightness levels to achieve optimal reticle brightness for night or day applications.
To add durability to the optic, the housing is made of high-quality aluminum alloy and offers a submersible waterproof and fogproof performance. The 30mm maintube is crafted from a single piece of alloy and offers finger-operated MeoTrak II posi-click windage and elevation turrets with audible clicks and precise, repeatable, and accurate adjustments. The MeoClick tactile disc turrets provide quick-and-easy reticle adjustments. - 4C Illuminated Reticle
-
- 2nd focal plane
- German #4 style
- Three bold posts
- Thin crosshair
- Illuminated center dot
- RedZone 8 Illumination provides eight brightness levels
- Optical Performance
-
- 24mm objective diameter
- MeoLux proprietary ion-assisted multi-coating delivers 99.8% light transmission per lens surface while suppressing glare
- MeoDrop proprietary hydrophobic coating repels water, grease, and oils
- MeoShield anti-scratch coating protects lens from scratches or abrasions
- Use and Handling
-
- 1.5cm impact pointy correction
- 138 MOA windage and elevation range
- Construction Details
-
- 30mm maintube diameter
- Single-piece high-quality aluminum maintube
- ELOX hard-coat anodizing finish is scratch-resistant and abrasion-resistant
- MeoTrak II posi-click windage and elevation turrets with audible clicks deliver precise, repeatable, and accurate adjustments
- MeoClick tactile disc turrets provide quick and easy reticle adjustments
- Erector system provides maximum holding force against heavy recoil
- Low-profile knurled turrets and eyepiece lever
- Waterproof, submersible, and fogproof
In the Box Meopta 1-6x24 MeoStar R2 RD Riflescope (4C Illuminated Reticle, Matte Black) - CR-2354 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 1-6x24 MeoStar R2 RD Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 596430 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 111.3' @ 100 yd / 37.1 m @ 100 m
6x: 18.6' @ 100 yd / 6.2 m @ 100 m | | Exit Pupil Diameter | 1x: 11 mm
6x: 4 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | 4C Reticle (Second Focal Plane) | | | | Windage Adjustment | 138 MOA | | Elevation Adjustment | 138 MOA | | Parallax Correction | No | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2354 | | Dimensions | Length: 11.7" / 297 mm | | Weight | 17.6 oz / 448 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
