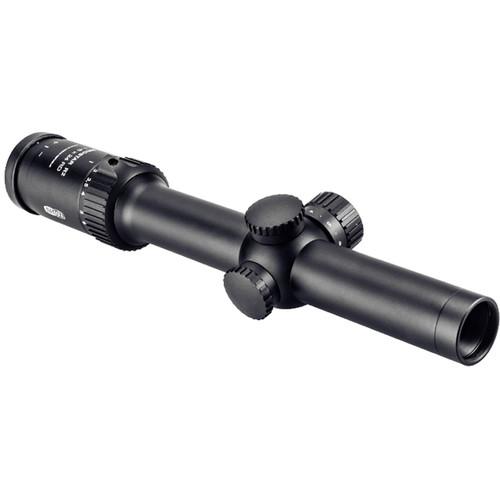

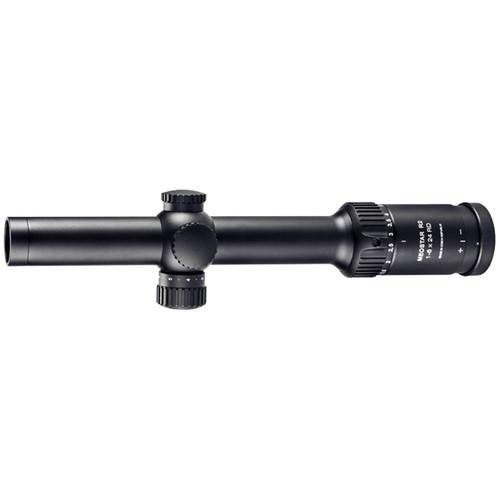

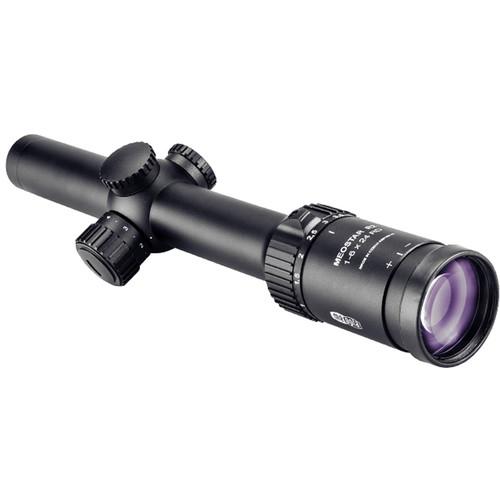

User Manual for Meopta 1-6x24 RD Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 1-6x24 RD Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
 |
User manual for the Meopta 1-6x24 RD Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description Packed with high-performance features beyond its class, the Meopta 1-6x24 RD Riflescope is great for spotting and stalking white tail deer or hunting wild hogs, along with many other applications. Its 1-6x zoom optical system, which is optimized for low-light conditions, has precision-ground and polished optical elements and high-transmission (and low-glare) MeoLux anti-reflection lens coatings. It delivers clear and bright images even at dusk or dawn. For protection against scratches and abrasions, the exterior lenses are also treated with MeoShield anti-scratch coating, and to keep them clean and free of stains due to grease and water, they have a layer of MeoDrop hydrophobic film. To improve accuracy at longer ranges, the scope gives you a generous windage and elevation adjustment ranges of 138 MOA with 1/2 MOA clicks. In the second image plane of the optical system is the BDC-3 reticle. Its outline offers four tapered posts, a thin crosshair, and a bright target dot with adjustable brightness. It also gives you holdovers out to 500 yd and windage correction for up to 10 mph.
To provide you with a dependable sight that will serve you for years to come, Meopta almost over-engineered the opto-mechanics. On the inside, the durable aluminum housing with a 30mm maintube is filled with nitrogen and sealed for fogproof and waterproof performance. On the outside, it is treated with a tough matte black hard-anodized ELOX finish, designed to protect from scratches and abrasions and to reduce reflections and glint. For precision and dependability, this optic gives you low-profile hunting-style posi-click windage and elevation turrets. Enhanced with the MeoTrak control, they allow users to have positive tactile and audible clicks. - Optical Performance
-
- 1-6x optical zoom
- 24mm objective diameter
- MeoLux coatings provide high transmission and low glare
- Proprietary lens grinding and polishing to improve performance
- Twilight-optimized design improves low-light visibility
- MeoDrop proprietary hydrophobic coating repels water and grease
- 11 - 4 mm exit pupil
- Use and Handling
-
- 1/2 MOA impact point correction
- 138 MOA windage and elevation
- 3.9 - 3.8" eye relief
- Construction Details
-
- 30mm maintube
- Aluminum housing
- ELOX non-reflective scratch-resistant anodized finish
- MeoShield lens coating protects from scratches and abrasions
- Capped, low-profile, hunting-style windage and elevation turrets
- MeoTrak II posi-click windage and elevation control with tactile and audible clicks
- Erector system is engineered to provide maximum holding force for heavy recoils
- MeoQuick fast focus eyepiece with a diopter ring
- Accommodates a CR-2354 battery or a CR-2032 battery with a spacer
- Nitrogen-purged fogproof
- Waterproof
- BDC-3 Reticle
-
- Four tapered posts
- Thin crosshair
- Extra-bright target dot
- Holdovers out to 500 yd and windage correction to 10 mph
- RedZone Illumination has high-definition red dot
- Eight levels of illumination brightness with intermittent off positions
- Etched on glass in the second focal plane
In the Box Meopta 1-6x24 RD Riflescope (BDC-3 Illuminated Reticle, Matte Black) - CR-2354 Battery
- Limited 30-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 1-6x24 RD Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 580160 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 113' @ 100 yd / 37.6 m @ 100 m
6x: 19' @ 100 yd / 6.3 m @ 100 m | | Exit Pupil Diameter | 1x: 11 mm
6x: 4 mm | | Eye Relief | 3.8 to 3.9" / 96.5 to 99 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | BDC-3 RD Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.5 MOA per Click | | Windage Adjustment | 138 MOA | | Elevation Adjustment | 138 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032, CR2354 | | Dimensions | Length: 11.7" / 29.7 cm | | Weight | 17.4 oz / 493.3 g |
