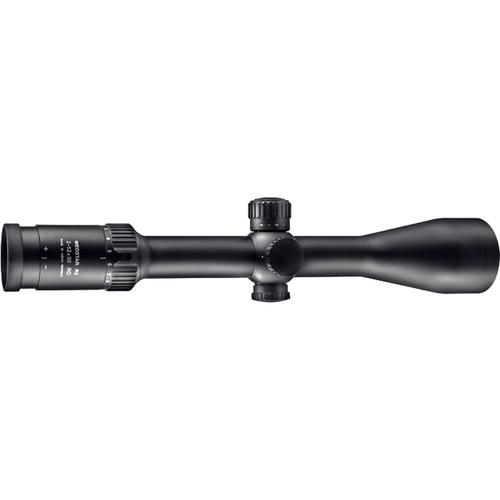

Meopta 2-12x50 MeoStar R2 Riflescope

Search your instruction manual in PDF to download

User Manual for Meopta 2-12x50 MeoStar R2 Riflescope

Click to enlarge the picture
Meopta 2-12x50 MeoStar R2 Riflescope Contents of the user manual for the Meopta 2-12x50 MeoStar R2 Riflescope
  • Product category: Riflescopes Meopta
  • Brand: Meopta
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Meopta Riflescopes

Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope Meopta 2-12x50 MeoStar R2 Riflescope
User manual for the Meopta 2-12x50 MeoStar R2 Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Meopta product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!



Product description

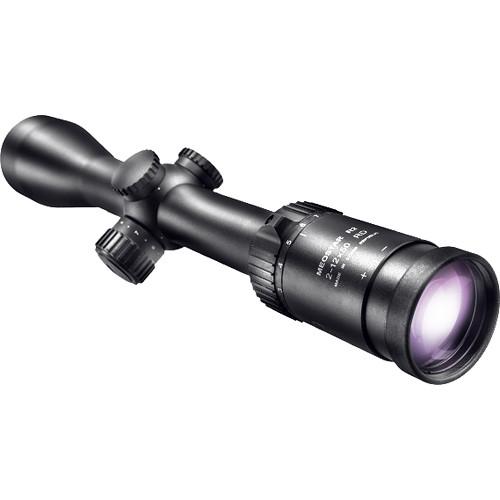

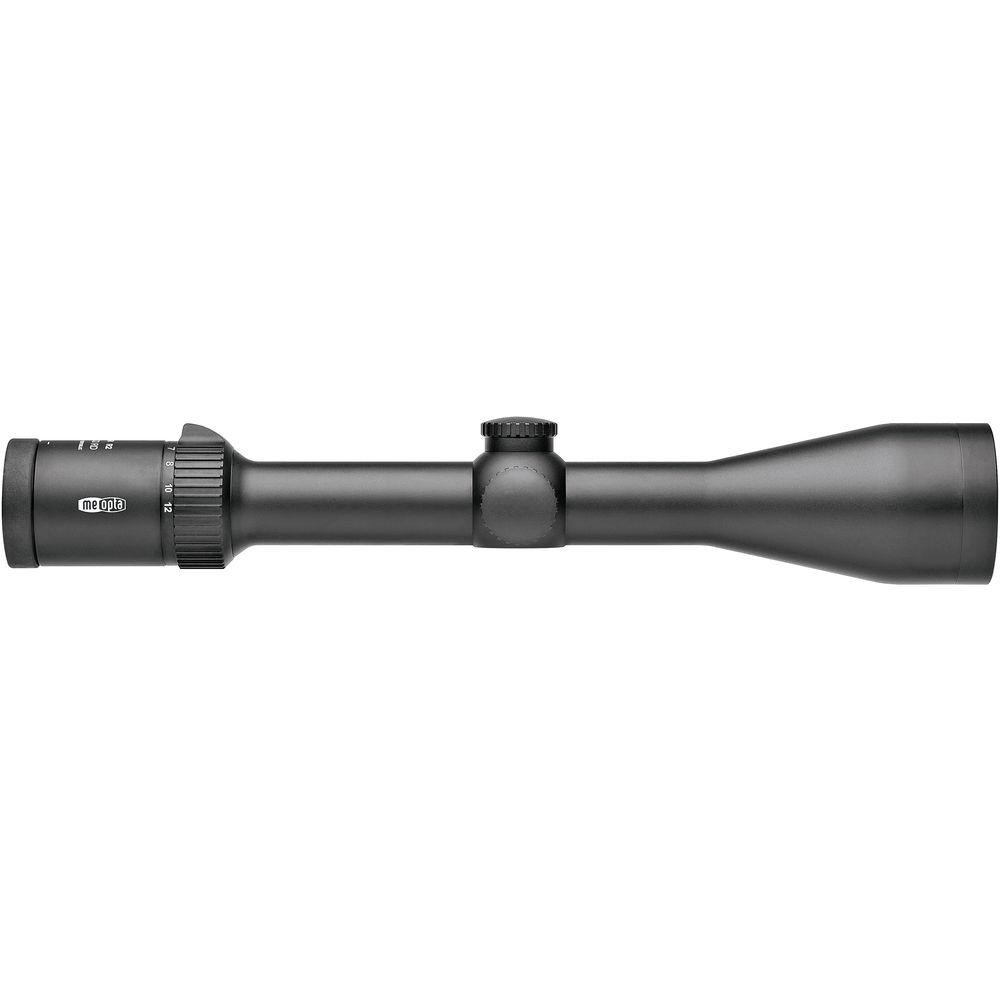

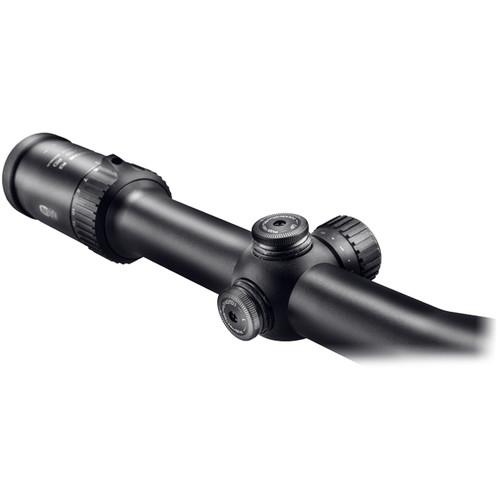

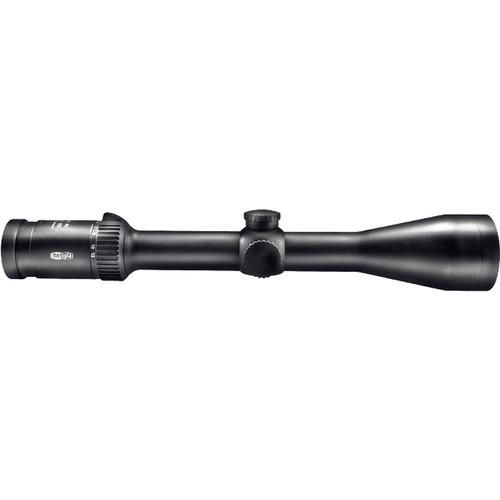

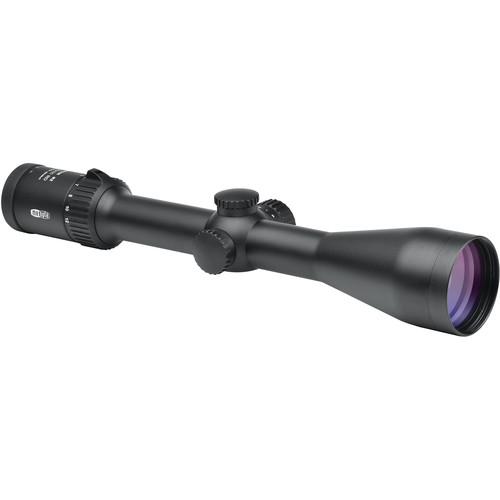

Meopta engineered the 2-12x50 MeoStar R2 Riflescope as a precision hunting optic, aimed at dramatically improving your performance in low light. Its optical system features elements that are not only ground and polished with high precision to deliver superior performance and high edge-to-edge clarity, but also treated with layers of optical coatings like MeoLux for high transmission and low glare, MedShield for anti-scratch performance, and MeoDrop for hydrophobic and oleophobic action. The second focal plane of the optical system contains a RD BDC 2 illuminated reticle to provide you with an accurate aiming reference. To compensate for ballistics and wind, the turret system offers 70 MOA of horizontal and vertical adjustment ranges and 1/4 MOA (0.7 cm at 100 m) impact point correction.

To match the precision and quality of the optical system, the housing is manufactured from a strong and durable aluminum alloy and treated externally with Meopta's ELOX scratch- and abrasion-resistant anodized finish. It features a single-piece 30mm maintube that is filled with nitrogen and sealed for fog and waterproof performance. Additional highlights of the construction are a MeoQuick fast-focus eyepiece for instant zooming, MeoTrack II posi-click windage and elevation turrets with audible reassurance for precise corrections, and a robust erector system for providing a maximum holding force and enduring heavy recoils.
    Optical Performance
    • 2-12x magnification
    • 50mm objective delivers bright images even in very low light
    • Proprietary lens grinding and polishing techniques result in superior performance
    • MeoLux full multi-coatings ensure high transmission and low glare
    • MeoShield exterior coatings protect from scratches and abrasions
    • MeoDrop is a proprietary hydrophobic coating that repels water, grease, and skin oil
      Use and Handling
      • 1/4 MOA impact point correction
      • 70 MOA windage and elevation
      • +3 to -3 diopter adjustment
        Construction Details
        • Aluminum alloy
        • 30mm one-piece maintube
        • ELOX scratch- and abrasion-resistant anodized finish

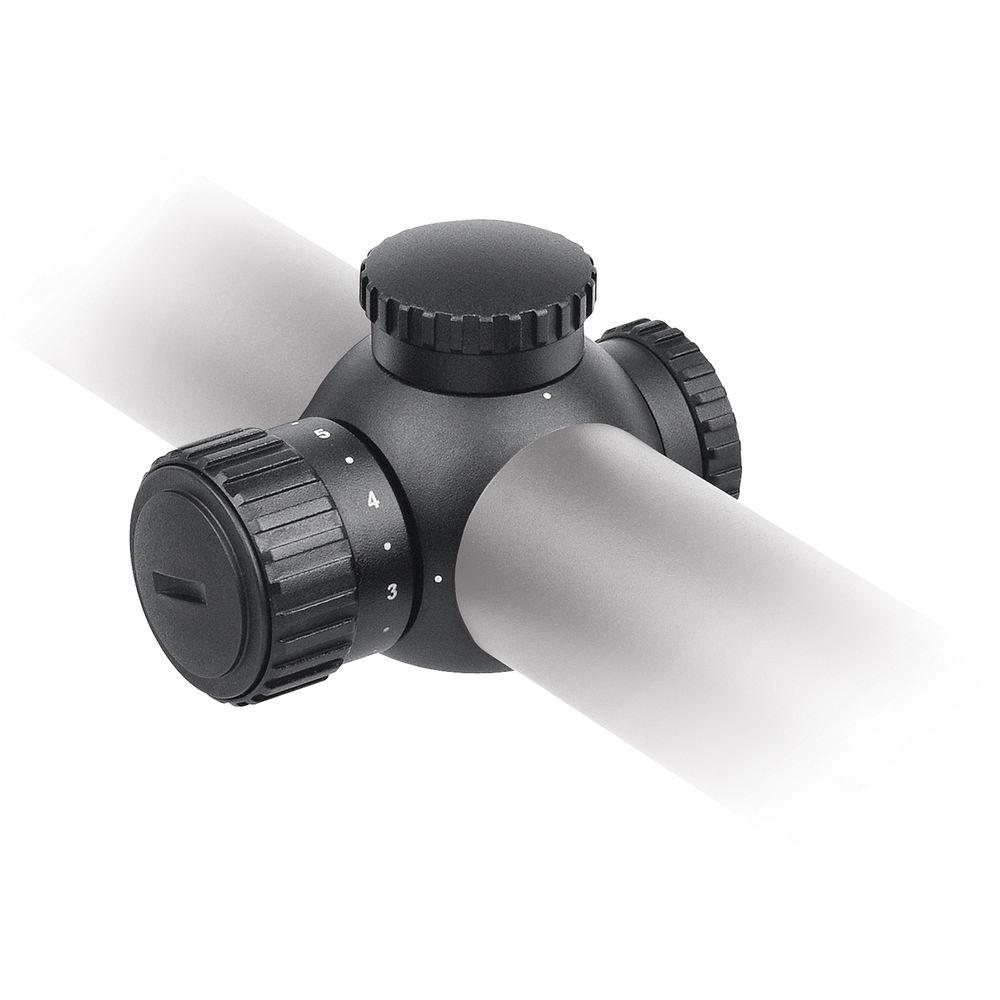

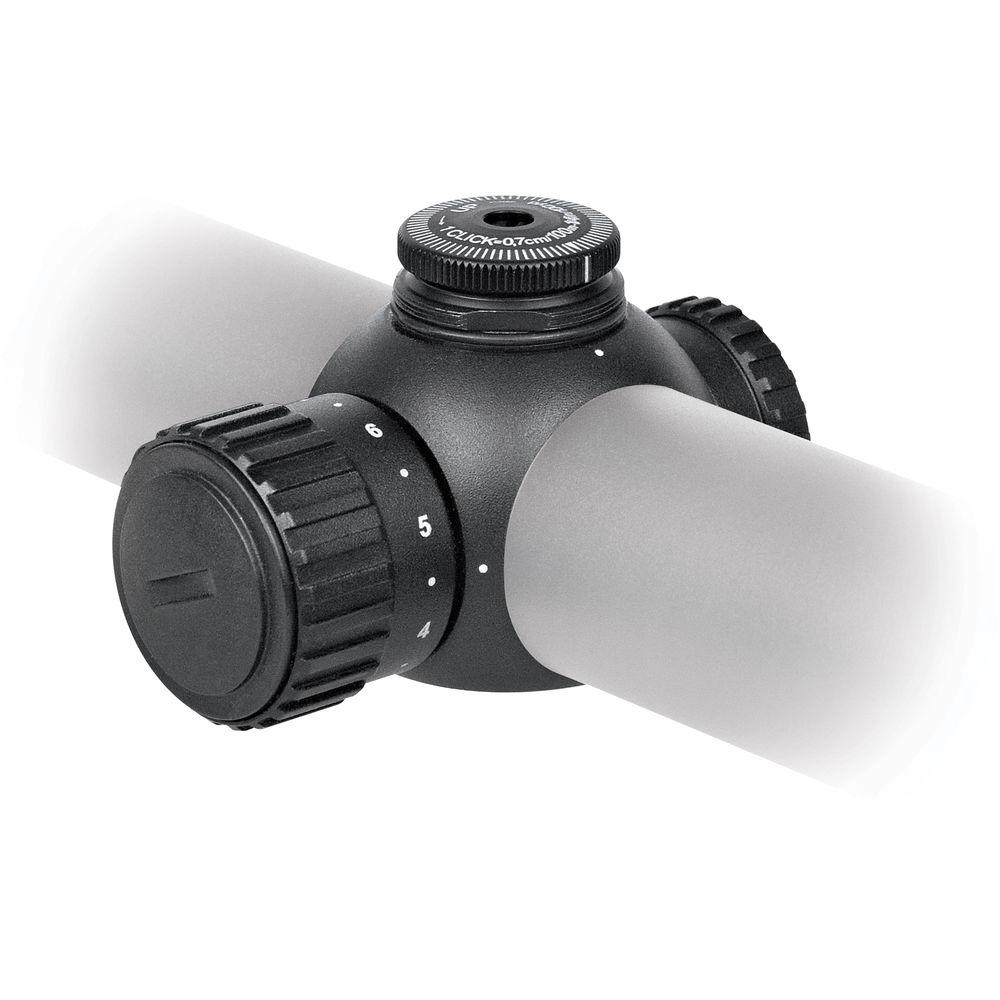

        • MeoTrack II posi-click finger-adjustable turrets with audible clicks offer great precision and repeatability
        • Erector system designed to provide maximum holding force and withstand heavy recoil
        • MeoQuick fast-focus eyepiece quickly brings your targets into sharp focus
        • Nitrogen-filled fogproof
        • Waterproof

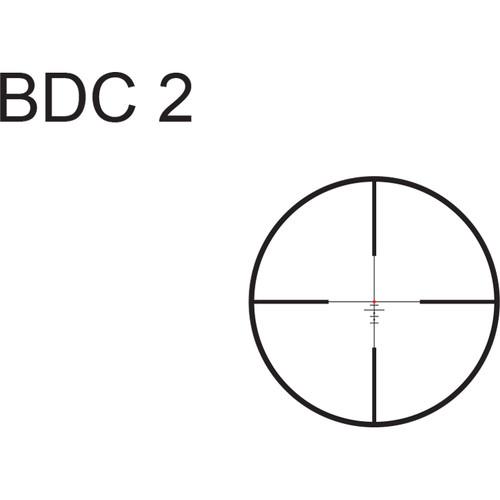

        RD BDC 2 Reticle
        • 2nd focal plane
        • Four non-tapered posts
        • Thin crosshair
        • Brilliant red target dot
        • Short horizontal wind and ballistic compensation lines and dots
        UPC: 836538004452 In the Box Meopta 2-12x50 MeoStar R2 Riflescope (RD BDC 2 Reticle, Matte Black)
      • 2 x Lens Caps
      • CR2032 Battery
      • Limited Lifetime Warranty
      Table of Contents




Upload User Manual

Have you got an user manual for the Meopta 2-12x50 MeoStar R2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Meopta 575680 Specs

Magnification 2 to 12x
Objective Lens Diameter 50 mm
Field of View 2x: 55.8' @ 100 yd / 18.6 m @ 100 m
12x: 9.3' @ 100 yd / 3.1 m @ 100 m
Exit Pupil Diameter 2x: 11.2 mm
12x: 4.3 mm
Eye Relief 3.7 to 3.9" / 95 to 98 mm
Diopter Correction -3.0 to +3.0
Reticle Type RD BDC 2 Reticle (Second Focal Plane)
Filter Thread M53 x 0.75
Impact Point Correction 1/4 MOA per Click
Windage Adjustment 70 MOA
Elevation Adjustment 70 MOA
Parallax Correction Yes, 100 yd / 91.4 m
Water Resistance Waterproof
Fogproof Yes, Nitrogen Filled
Maintube Diameter 30 mm
Battery 1 x CR2032
Dimensions Length: 14" / 35.6 cm
Weight 21 oz / 596 g
