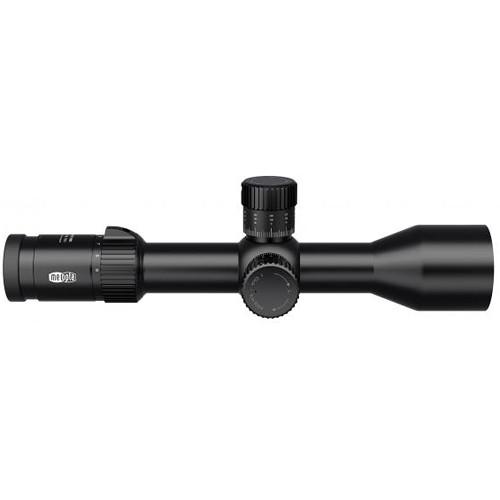

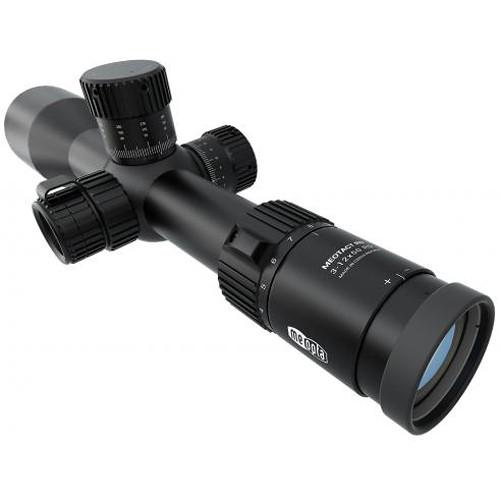

User Manual for Meopta 3-12x50 MeoTac RD Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 3-12x50 MeoTac RD Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
 |
User manual for the Meopta 3-12x50 MeoTac RD Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description Meopta positions the 3-12x50 MeoTac RD Riflescope as an incredibly versatile, compact, and combat-proven optic that is designed for mid-to-long-range shooting. Its optical system has many levels of proprietary enhancements such a MeoLux, MeoShield, and MeoDrop coatings, whose purpose is not only to deliver 99.8% total transmission but also to protect exterior lenses from scratches and water/oil stains. It also offers Twilight Optimized Optics (TO2), a special optical element optimization process that maximizes performance in low light. To further improve usefulness in challenging light conditions, the scope has a wide 50mm objective lens. For fast and accurate target acquisitions, this riflescope offers a 1st focal plane MilDot 3 RD reticle. Its purpose is to help you excel at this task, and it has all the right ingredients such as four thin posts, an ultrafine milling crosshair, and a brilliant red target dot. The dot features Meopta's RD illumination system, which generates a radiant red dot with seven brightness levels for any lighting conditions, ranging from extremely low to daylight.
To match the precision and quality of the optical system, the housing is manufactured from a strong and durable aluminum alloy with an ELOX scratch- and abrasion-resistant anodized finish and has a 34mm maintube. It is filled with nitrogen and sealed for fog and waterproof performance. Additional highlights of the construction are a MeoQuick fast-focus eyepiece for instant zooming, Zero Stop tactical-style windage and elevation with graduations, and a robust erector system for providing a maximum holding force and enduring heavy recoils. - Optical Performance
-
- 3-12x zoom magnification
- Wide 50mm objective delivers bright images even in low light
- Proprietary lens grinding and polishing techniques result in superior performance and edge-to-edge sharpness
- MeoLux full multi-coatings ensure high transmission and low glare
- TO2 (Twilight Optimized Optics) system delivers the most in low light
- MeoBright coatings and TO2 optimization result in 99.7% transmission per lens surface
- MeoShield exterior coatings protect from scratches and abrasions
- MeoDrop is a proprietary hydrophobic coating that repels water, grease, and skin oil
- Use and Handling
-
- 0.1 MIL (1.0cm at 100 m) impact point correction
- 29 MIL (100 MOA) elevation
- 16 MIL (55 MOA) windage
- +2.5 to -3.5 diopter correction
- Parallax-free from 27 yards to infinity
- Construction Details
-
- Aluminum alloy
- 34mm maintube
- Zero Stop tactical-style turrets
- ELOX scratch- and abrasion-resistant anodized finish
- Erector system designed to provide maximum holding force and withstand heavy recoil
- MeoQuick fast-focus eyepiece quickly brings your targets into sharp focus
- Nitrogen-filled fogproof
- Waterproof
- MilDot 3 RD Reticle
-
- First focal plane
- Four thin posts
- Thin milling crosshair
- RD Illumination gives a well-defined brilliant red target dot
- Seven brightness levels for conditions ranging from extremely low light to daylight
- Intermittent off positions
In the Box Meopta 3-12x50 MeoTac RD Riflescope (MilDot 3 RD Illuminated Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 3-12x50 MeoTac RD Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 580210 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 37' @ 100 yd / 12.3 m @ 100 m
12x: 9' @ 100 yd / 3 m @ 100 m | | Exit Pupil Diameter | 3x: 14.4 mm
12x: 4.1 mm | | Eye Relief | 3.5 to 4.5" / 90 to 115 mm | | Diopter Correction | -3.5 to +2.5 | | | | Reticle Type | MIL Dot Reticle (First Focal Plane) | | | | Filter Thread | M54 x 0.75 | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 16 MIL | | Elevation Adjustment | 29 MIL | | Parallax Correction | Yes, 27.3 yd / 25 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.5" / 31.9 cm | | Weight | 34.2 oz / 970 g |
