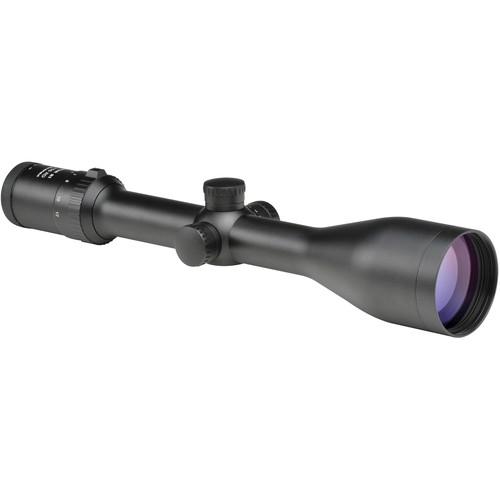

User Manual for Meopta 3-12x56 Meostar R1 Red Dot Waterproof & Fogproof Riflescope - Matte Black Click to enlarge the picture
Contents of the user manual for the Meopta 3-12x56 Meostar R1 Red Dot
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta 3-12x56 Meostar R1 Red Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description While not yet well known in the USA at the time of this writing, it shouldn't be too long for the Meopta name to be well associated with the supreme-quality perch from which they approach manufacturing. They manufacture exclusively top notch optics, produced entirely in their Czech Republic facilities, with a focus upon brilliant color fidelity, performance & robust functionality in any conceivable condition with which a user would endeavor to observe. The 3-12x56 Meostar R1 Red Dot has a 30mm maintube diameter, with its reticle placed in the rear focal plane (in front of the eyepiece) to maintain its virtual size throughout the entire magnification range. Targeting smaller game at longer distances is quite easy with the reticle location in the rear focall plane. The 3-12x56 Meostar R1 Red Dot is an extremely large and powerful optic for use in any ambient light conditions. It offers the magnification options useful for the open spaces of North American hunters, combined with an enormous oversized 56mm diameter objective lens to gather the light needed to produce stellar illumination upon the subject even at the maximum 12x power. The Meostar's unique internal mechanism is designed for the highest mechanical resistance for consistent accuracy shot after shot. The sophisticated illuminated center dot of the 3-12x56 Meostar R1 Red Dot allows a perfect match to the conditions of the shot. - Perfect Illumination
- The illuminated Red Dot reticle has 7 levels of brightness to choose from for the best possible match to the ambient lighting conditions.
- The Meostar Finish Advantage
- The supreme 3-12x56 Meostar R1 Red Dot riflescope has an aircraft aluminum alloy construction and a bead blasted exterior, as well as an "Elox" andonizing process, which ensure an extremely durable and non-reflective black matte outer finish.
- Meostar's Magnificent Multicoatings
- Meopta has dramatically improved their light transmission per glass surface with a proprietary IMB-5501 anti reflective coatings & ION assisted applications process. Light transmission is staggeringly high at 99.8% per surface!
- Two-piece 30mm internal diameter tube
- Supreme lowlight performance, well into dusk, thanks to 56mm diameter objective lens
- Soft rubber eyecup prevents injury from recoil power
UPC: 836538000836 In the Box Meopta 3-12x56 Meostar R1 Red Dot Waterproof & Fogproof Riflescope (6.4-2.0 Degree Angle of View) - Matte Black Spring-Loaded Flip-Back Objective/Eyepiece Covers Antistatic Cloth One CR2032 3-Volt Lithium Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 3-12x56 Meostar R1 Red Dot Waterproof & Fogproof Riflescope - Matte Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 706590 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 33.4' @ 100 yd / 11.1 m @ 100 m
12x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 3x: 18.7 mm
12x: 4.7 mm | | Eye Relief | 3" / 75 mm | | Diopter Correction | -3.0 to +3.0 | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.4" / 36.5 cm
Height: 2.4" / 6.2 cm | | Weight | 1.5 lb / 665 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 16.0 x 3.35 x 2.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
