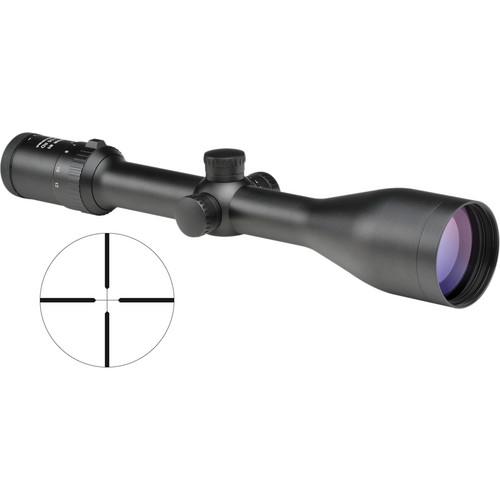

User Manual for Meopta 3-12x56 MeoStar R1r Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 3-12x56 MeoStar R1r Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta 3-12x56 MeoStar R1r Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description Optimized for low-light use, such as at dawn and dusk when animals are most active, the Meopta 3-12x56 MeoStar R1r Riflescope is outfitted with a large oversized objective and the proprietary MeoBright lens multi-coating system to deliver bright and clear views with accurate color and improved contrast and clarity at all magnifications. Threads in front of the objective lens accept filters, like polarized and neutral density, to enhance and improve views and image clarity in extreme conditions such as on snowy fields or on/near water during duck season.Posi-click finger-adjustable MeoTrak II turrets deliver precise adjustments with easy repeatability with tactile and audible clicks that ensure accurate adjustments and return-to-zero in the field. With a 1/4 MOA per click impact point correction and a wide 50 MOA adjustment range on both the windage and elevation, users will enjoy precise shot adjustments with the ability to accurately compensate for ballistic drop and cross-wind when shooting at long range.To withstand the rigors of the outdoors, the housing is made of a lightweight and durable aluminum alloy, treated with a scratch-resistant hard anodized finish. A large diameter maintube not only complements the oversized objective to maximize light transmission through the optical system, it also adds the recoil strength required when mounting the scope on high-caliber rifles used in long-range hunting. - Optical Performance
-
- Broad 3-12x magnification range provides the ability to scan wide areas of the landscape on low power with the ability to zoom in and make positive identification of the target
- Large 56mm objective ensures views remain bright and clear, even in challenging and low light, or when acquiring smaller targets at long range on high magnification
- Proprietary MeoBright ion-assisted lens multi-coatings on all air-to-glass surfaces eliminate glare and reflections and deliver 99.8% light transmission per lens surface
- MeoShield ion-assisted external lens coating protects surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions
- 33-foot field of view at 100 yards on 3x, 10-foot at 12x power
- Generous 3.5-3.1" eye relief provides a large eye box for flexible mounting and more comfortable use
- Exceptional 14.8mm exit pupil at 3x is ideal for extreme low-light conditions; 4.6mm at 12x will still cover most pupils as they open and dilate as light fades
- Reticle Details
-
- General-purpose Z-plex duplex crosshair design
- Long outer posts and short thin center hairs
- At long distance on low power the longer posts provide easy shot alignment when center hairs are hard to see
- At high power or close range the center aiming hairs provide precise aiming, critical for smaller targets
- First focal plane placement: As you increase or decrease magnification, the apparent size of the reticle changes relative to the magnification
- Etched glass reticle delivers exceptional target definition for all shooting applications
- Use and Handling
-
- Fast-focus MeoQuick eyepiece brings your target into sharp focus and provides extra diopter travel to accommodate a wider range of visual acuity variations
- ±3 diopter correction range
- 1/4 MOA impact point correction
- 50 MOA windage and elevation adjustment range
- Capped turrets are protected from dust, dirt, water, and impacts
- Posi-click finger-adjustable MeoTrak II windage and elevation turrets deliver precise adjustments with easy repeatability; positive tactile and audible clicks ensure accurate return-to-zero in the field
- M59x0.75 objective lens threads accept filters like polarized and neutral density for enhanced views and clarity in extreme conditions such as in snow or on/near water
- Construction Details
-
- Large 30mm diameter maintube complements the large objective, allowing maximum light throughput, while also adding strength to handle the high-caliber rifles required for long-distance shooting
- Nitrogen-filled chassis is waterproof and resistant to internal fogging even in extreme conditions
- Lightweight and durable aluminum chassis
- ELOX anodized hard coat finish resists scratching and corrosion
- Low-reflectivity matte black finish
- 22-ounce weight
UPC: 836538001802 In the Box Meopta 3-12x56 MeoStar R1r Riflescope (Z-Plex Crosshair Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 3-12x56 MeoStar R1r Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 560910 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 33.1' @ 100 yd / 11 m @ 100 m
12x: 10.2' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 14.8 mm
12x: 4.6 mm | | Eye Relief | 3.5 to 3.1" / 9 to 8 cm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | Z-Plex Reticle (First Focal Plane) | | Illumination | Non-Illuminated | | | | Filter Thread | M59 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Material | Aluminum | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 21.9 oz / 620 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 18.1 x 4.8 x 3.8" |
