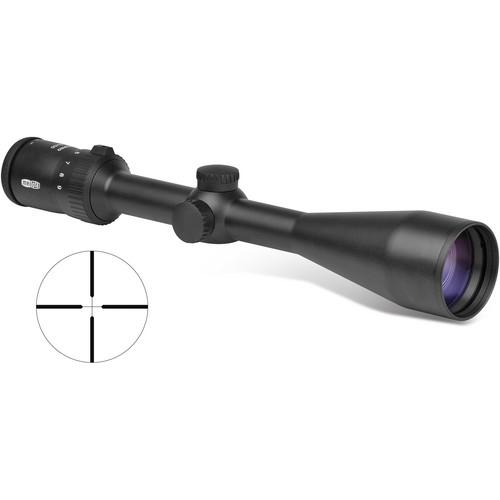

User Manual for Meopta 3-9x50 MeoPro Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 3-9x50 MeoPro Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta 3-9x50 MeoPro Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description The 3-9x50 MeoPro Riflescope from Meopta features a Z-Plex reticle, combining a fully multicoated optical path with a nitrogen-filled aluminum housing to create a close to mid-range zoom optic that is built for low light and weatherproof performance. This scope's one-piece housing is machined from aerospace aluminum and anodized for increased corrosion resistance. Each lens is multicoated with Meopta's proprietary MB5501 anti-reflective coating to maximize light transmission and enhance image contrast throughout the zoom range.This MeoPro series scope is equipped with a Z-Plex reticle etched into the second focal plane. The reticle pattern has a fine crosshair with four medium-weight posts and is suitable for most targets.Complementing the durable housing and high-transmission optics, the MeoPro 3-9x50 scope features MeoTrack II posi-click windage and elevation turrets that provide tactile and audible feedback that confirms the 1/4 MOA impact point corrections without requiring the observer to take their eye off the field of view. These turrets also employ an improved erector that uses positive resistance to ensure precise adjustments and maintain zero even when subjected to recoil from heavy caliber rifles.Further equipping this MeoPro riflescope for years of quality service, the exposed surface of objective and ocular lenses are multicoated with a MeoShield abrasion resistant coating that protects against light scratches and helps moisture roll off the lens surface. The final elements in the MeoPro optical path belong to the MeoQuick fast-focus eyepiece, which enables rapid focus adjustment in addition to rendering edge-to-edge sharpness and a comfortable 3.7" eye relief. Each MeoPro 3-9x50 riflescope is assembled in the USA and backed by Meopta's North American Lifetime Transferable Warranty. - Optical Performance
-
- 3-9x magnification, 50mm objective
- 1" main tube diameter
- Fully multicoated optics, MeoBright 5501 anti-reflective coatings
- 37-12 ft (11.3-3.7m) field of view at 100 yd
- 7-2.3° angle of view, 3.7" eye relief, 12.5-5.6mm exit pupil
- Z-Plex reticle with fine crosshair and four medium-weight posts
- Use and Handling
-
- 1/4 MOA impact point correction
- 77 MOA impact point correction range
- MeoTrack II windage/elevation turrets with tactile feedback
- MeoQuick fast focus eyepiece with -3 to +2 diopter correction
- Construction Details
-
- Nitrogen-filled fogproof/waterproof housing
- Aerospace aluminum chassis with ELOX anodized hard coat
- MeoShield abrasion resistant multicoating on exposed lens surfaces
- MeoTrack II erector provides positive resistance for maintaining zero
- Matte black finish
- 18.4 oz (522g) weight
In the Box Meopta 3-9x50 MeoPro Riflescope (Z-Plex) Turret Caps Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 3-9x50 MeoPro Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 541780 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 37' @ 100 yd / 11.3 m @ 100 m
9x: 12' @ 100 yd / 3.7 m @ 100 m | | Exit Pupil Diameter | 3x: 12.5 mm
9x: 5.6 mm | | Eye Relief | 3.7" / 94 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Z-Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 77 MOA | | Elevation Adjustment | 77 MOA | | Parallax Correction | No | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14" / 35.6 cm | | Weight | 18.4 oz / 522 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
