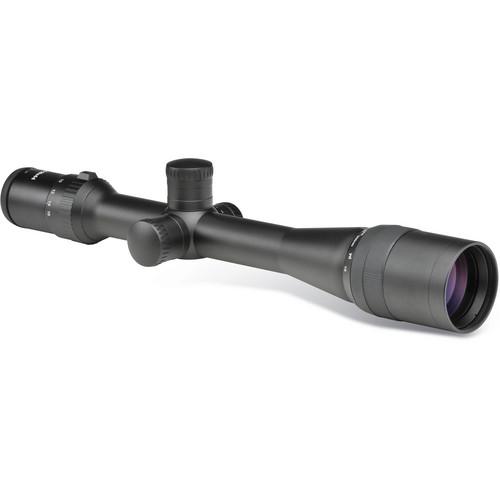

User Manual for Meopta 4-16x44 ZD Tactic Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 4-16x44 ZD Tactic Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta 4-16x44 ZD Tactic Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description The 4-16x44 ZD Tactic Riflescope from Meopta combines a nitrogen-filled aerospace aluminum housing with a fully multicoated 30mm optical path and an illuminated Mil Dot reticle, creating a close to mid-range tactical optic ready to deliver weatherproof performance. This scope's one-piece housing is machined from aerospace aluminum and anodized for increased corrosion resistance. Each lens is multicoated with Meopta's proprietary MB5501 anti-reflective coating to maximize light transmission and enhance image contrast throughout the zoom range. The scope's 4-16x magnification range is ideal for both eyes open techniques and fast target acquisition. This ZD Tactic series scope is equipped with an illuminated Mil Dot reticle etched into the second plane. Meopta's Mil Dot has an illuminated fine crosshair with hollow mil markers and posts. Meopta's RD reticle illumination system includes a dedicated side turret to control the seven brightness levels and intermediate reticle off setting between each level. The RD illuminated reticle is designed to provide a high-contrast aiming point in any lighting condition from daylight to twilight. Complementing the durable housing and high-transmission optics, the ZD Tactic 4-16x44 scope features MeoTrack II posi-click windage and elevation turrets that provide tactile and audible feedback that confirms the 0.5 mil impact point corrections without requiring the observer to take their eye off the field of view. These turrets also employ an improved erector that uses positive resistance to ensure precise adjustments and maintain zero even when subjected to the rapid recoil. Further equipping this ZD Tactic riflescope for years of service, the exposed surface of the objective and ocular lenses are multicoated with a MeoShield abrasion resistant coating that protects against light scratches and helps moisture roll off the lens surface. The final elements in the MeoPro optical path belong to the MeoQuick fast-focus eyepiece, which enables rapid focus adjustment in addition to rendering edge-to-edge sharpness and a comfortable 3" eye relief at maximum power. Each ZD Tactic riflescope is assembled in the USA and backed by Meopta's North American Lifetime Transferable Warranty. - Optical Performance
-
- 4-16x magnification, 44mm objective
- 30mm main tube diameter
- Fully multicoated optics, MeoBright 5501 anti-reflective coatings
- 4.8-1.4° angle of view, 4-3" eye relief, 11-2.8mm exit pupil
- Second plane Mil Dot reticle with hollow dots and posts
- Use and Handling
-
- 0.5 mil impact point correction
- 28 mil Windage and Elevation range
- MeoTrack II windage/elevation turrets with tactile feedback
- Parallax adjustment side turret
- MeoQuick fast focus eyepiece with ±3 diopter correction
- RD reticle illumination turret with 7 brightness settings
- RD Off setting between each illumination level for quick deactivation
- Construction Details
-
- Nitrogen-filled fogproof/waterproof housing
- Aerospace aluminum chassis with ELOX anodized hard coat
- MeoShield abrasion resistant multicoating on exposed lens surfaces
- MeoTrack II erector provides positive resistance for maintaining zero
- Matte black finish
- 28.2 oz weight
UPC: 836538002298 In the Box Meopta 4-16x44 ZD Tactic Riflescope (Mil Dot) Turret Caps Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 4-16x44 ZD Tactic Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 560830 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 8.5' @ 100 yd / 2.6 m @ 100 m
16x: 2.4' @ 100 yd / 0.7 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
16x: 2.8 mm | | Eye Relief | 3 to 4" / 76 to 102 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.5 MIL per Click | | Windage Adjustment | 28 MIL | | Elevation Adjustment | 28 MIL | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2354 | | Dimensions | Length: 15.2" / 386.1 mm | | Weight | 28.2 oz / 799 g | | | | Package Weight | 2.725 lb | | Box Dimensions (LxWxH) | 17.95 x 4.95 x 3.55" |
