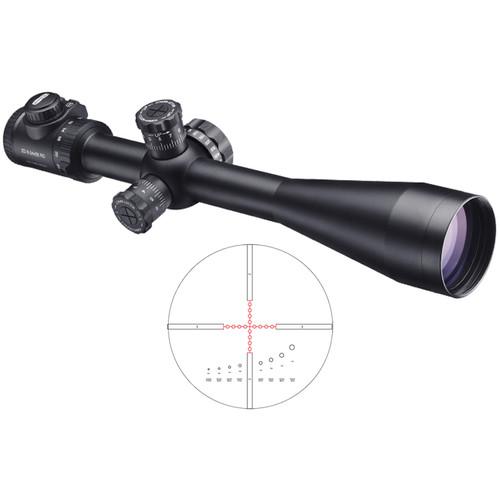

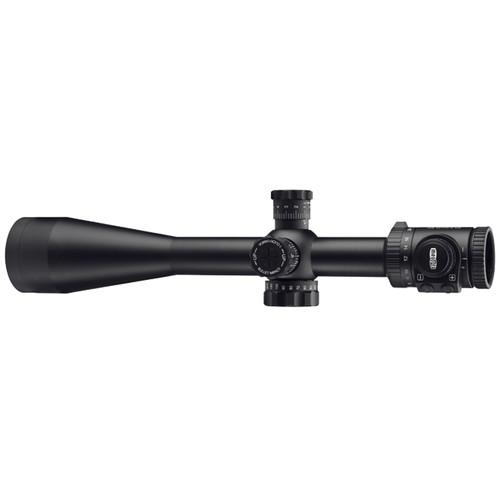

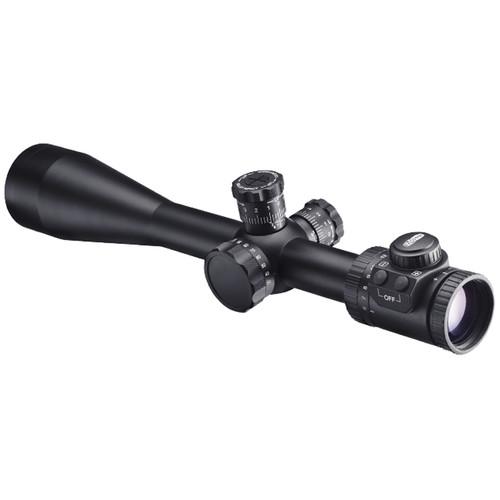

Meopta 6-24x56 ZD RD Riflescope

Search your instruction manual in PDF to download

User Manual for Meopta 6-24x56 ZD RD Riflescope

Click to enlarge the picture
Meopta 6-24x56 ZD RD Riflescope Contents of the user manual for the Meopta 6-24x56 ZD RD Riflescope
  • Product category: Riflescopes Meopta
  • Brand: Meopta
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Meopta Riflescopes

Meopta 6-24x56 ZD RD Riflescope Meopta 6-24x56 ZD RD Riflescope Meopta 6-24x56 ZD RD Riflescope
User manual for the Meopta 6-24x56 ZD RD Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Meopta product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!



Product description

Optimized for low-light and long-range use, the Meopta 6-24x56 ZD RD Riflescope is outfitted with a large oversized objective and the proprietary MeoBright lens multi-coating system to deliver bright and clear views with accurate color and improved contrast and clarity at all magnifications. Threads in front of the objective lens accept filters, like polarized and neutral density, to enhance and improve views and image clarity in extreme conditions such as on snowy fields or on/near water during duck season.Its partially illuminated reticle, located on the second focal plane, provides a clearly defined aiming aid in bright or dim light, and with more that 500 individual reticle intensities to choose from, users can select the brightness whether they are shooting in broad daylight or out on a nighttime hog hunt. Posi-click finger-adjustable MeoTrak II turrets deliver precise adjustments with easy repeatability with tactile and audible clicks that ensure accurate adjustments and return-to-zero in the field. With a 0.1 MIL per click impact point correction and a wide 24 MIL adjustment range on the elevation turret, users will enjoy precise shot adjustment with the ability to accurately compensate for ballistic drop at extreme long ranges.To withstand the rigors of the outdoors, the housing is made of a lightweight and durable aluminum alloy, treated with a scratch-resistant hard anodized finish. A large diameter maintube not only complements the oversized objective to maximize light transmission through the optical system, it also adds the recoil strength required when mounting the scope on high-caliber rifles used in long-range hunting.
    Optical Performance
    • Broad 6-24x magnification range provides the ability to scan wide areas of the landscape on low power with the ability to zoom in and make positive identification of the target even at long range
    • Large 56mm objective ensures views remain bright and clear, even in challenging and low light, or when acquiring smaller targets at long range on high magnification
    • Proprietary MeoBright ion-assisted lens multi-coatings on all air-to-glass surfaces eliminate glare and reflections and deliver 99.8% light transmission per lens surface
    • MeoShield ion-assisted external lens coating protects surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions
    • 18-foot field of view at 100 yards on 6x, 5-foot at 24x power
    • Generous 3.5-3.1" eye relief provides a large eye box for flexible mounting and more comfortable use
    • Wide 9.1mm exit pupil at 6x is ideal for extreme low-light conditions; 2.3mm at 24x

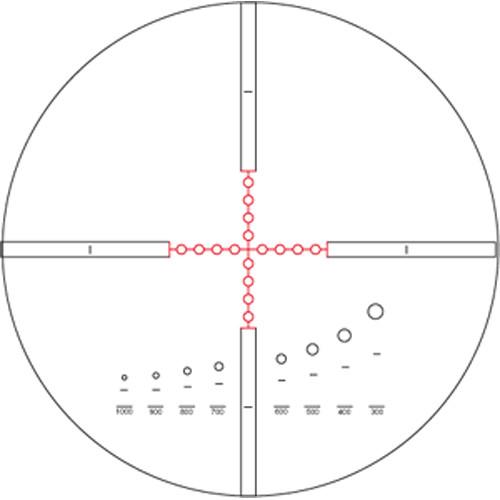

    Reticle Details
    • Partially illuminated MilDot 2 reticle
    • Mil-based duplex crosshair design
    • Large non-illuminated hollow outer posts help keep view unobstructed
    • Thin illuminated center hairs
    • Alternating hash marks and open dots on all crosshair axes for hold-over/under, windage correction, and lead for moving targets
    • Integrated range-finding markers are calibrated for accurate target estimation in standard calibers 7.62x51 NATO, .308, .338 WM, and 12.7mm
    • Uncluttered design provides a clear field of view to more easily scan the terrain for targets
    • Second focal plane placement: As you increase or decrease magnification, the apparent size of the reticle remains constant
    • Continuous incremental reticle brightness provides 256 daytime-visibility levels and 256 nighttime/NVD-compatible levels for precise reticle intensity for any preference or situation
    • Etched glass reticle delivers exceptional target definition for all shooting applications
    Use and Handling
    • Fast-focus MeoQuick eyepiece brings your target into sharp focus and provides extra diopter travel to accommodate a wider range of visual acuity variations
    • ±3 diopter correction range
    • 0.1 MIL impact point correction
    • 12 MIL windage adjustment range
    • Wide 24 MIL elevation range is optimized for long-range shooting
    • Capped turrets are protected from dust, dirt, water, and impacts
    • Posi-click finger-adjustable MeoTrak II windage and elevation turrets deliver precise adjustments with easy repeatability; positive tactile and audible clicks ensure accurate return-to-zero in the field
    • M59x0.75 objective lens threads accept filters like polarized and neutral density for enhanced views and clarity in extreme conditions such as in snow or on/near water
    • Simple push button reticle illumination control with manual off or auto-off after 2 hours
    • Illumination driven by one included CR2354 battery
    Construction Details
    • Large 30mm diameter maintube complements the large objective, allowing maximum light throughput, while also adding strength to handle the high-caliber rifles required for long-distance shooting
    • Nitrogen-filled chassis is waterproof and submersible to 3.3' (1m) for up to 2 hours and resistant to internal fogging even in extreme conditions
    • Lightweight and durable aluminum chassis
    • ELOX anodized hard coat finish resists scratching and corrosion
    • Low-reflectivity matte black finish
    • Broad -40 to 131°F operating temperature range allows it to withstand extreme environments without failing
    • 31-ounce weight
In the Box Meopta 6-24x56 ZD RD Riflescope (MilDot 2 MIL Illuminated Reticle)
  • Objective Lens Cap
  • Eyepiece Cap
  • Lens Cloth
  • CR2354 Battery
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Meopta 6-24x56 ZD RD Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Meopta 580190 Specs

    Magnification 6 to 24x
    Objective Lens Diameter 56 mm
    Field of View 6x: 17.8' @ 100 yd / 5.9 m @ 100 m
    24x: 4.8' @ 100 yd / 1.6 m @ 100 m
    Exit Pupil Diameter 6x: 9.1 mm
    24x: 2.3 mm
    Eye Relief 3.5 to 3.1" / 8.9 to 8 cm
    Diopter Correction -3.0 to +3.0
    Reticle Type MilDot 2 Reticle (Second Focal Plane)
    Illumination Partially Illuminated
    Illumination Type LED
    Illuminated Color Red
    Brightness Settings Adjustable Brightness (512 Levels)
    Filter Thread M59 x 0.75
    Impact Point Correction 0.1 MIL per Click
    Windage Adjustment 12 MIL
    Elevation Adjustment 24 MIL
    Parallax Correction Yes, 27.4 yd / 25 m to Infinity
    Water Resistance Waterproof
    Fogproof Yes, Nitrogen Filled
    Operating Temperature -40 to 131°F / -40 to 55°C
    Storage Temperature -49 to 159°F / -45 to 71°C
    Operating Humidity 98%
    Maintube Diameter 30 mm
    Battery 1 x CR2354
    Material Aluminum
    Dimensions Length: 15.2" / 38.6 cm
    Weight 30.6 oz / 868 g
