User Manual for Meopta 8x56 MeoPro HD Binocular Click to enlarge the picture
Contents of the user manual for the Meopta 8x56 MeoPro HD Binocular
- Product category: Binoculars Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Binoculars
 |
User manual for the Meopta 8x56 MeoPro HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|

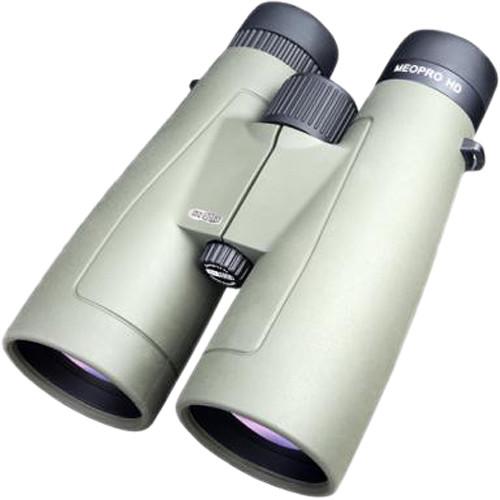

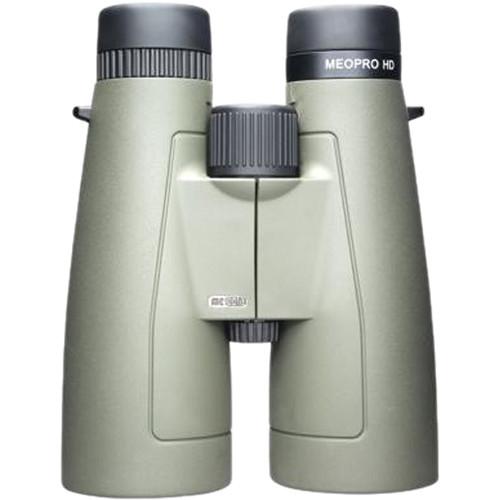

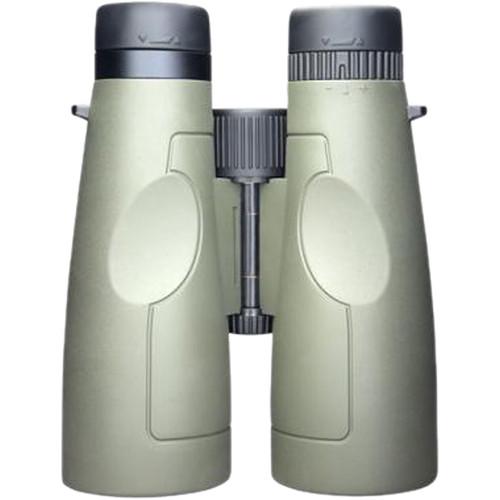

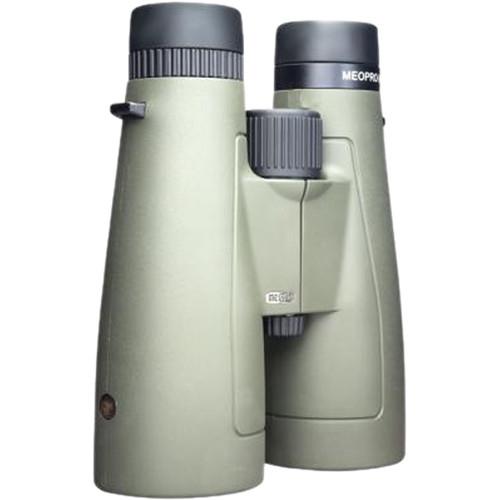

Product description The B&H Binocular Buying Guide Read More zatsyasc Optimized for low-light performance, the Meopta 8x56 MeoPro HD Binocular sports a moderate magnification and massive objective lenses that draw in copious amounts of light while increasing the exit pupil to an impressive 7mm to completely cover pupils when fully dilated as it gets dark. Complementing the power and objectives is extra low-dispersion glass and the proprietary MeoBright optical coatings that further boost light transmission while improving color rendition, sharpness, brightness, and contrast. Keeping the magnification to 8x helps to extend the field of view to almost wide angle while minimizing visible hand shake.Engineered for ergonomics, the chassis is made of a lightweight magnesium alloy that helps to offset the heavy objectives without sacrificing strength and stability. The magnesium is wrapped in a protective textured rubber armor that provides a slip-resistant grip when it's cold or wet. Its optical tubes are nitrogen-filled and O-ring sealed to be water and fogproof in extreme weather, and tethered objective lens covers and a one-piece eyepiece rainguard allow users to react quickly to changing conditions. Weighing in at over 36 ounces, long glassing sessions may lead to fatigue, so Meopta made the MeoPro tripod mountable with an optional adapter. - Optical Performance
-
- Moderate 8x magnification
- Large over-sized 56mm objective lenses
- Compact roof prism optical path
- Extra low-dispersion fluoride glass lenses correct for chromatic aberration for accurate color rendition and improved contrast
- Proprietary MeoBright anti-reflection fully multi-coated optics eliminate glare and improve light transmission, image brightness, sharpness, color and contrast
- 315-foot field of view at 1000 yards
- Extremely wide 7mm exit pupil completely covers pupils when fully dilated in low-light conditions for vignette-free viewing
- Long 18.5mm eye relief
- Use and Handling
-
- Closed-bridge/single-hinge configuration provides sturdy and strong interpupillary adjustment
- Large knurled center focus wheel allows for easy adjustments in cold or wet weather, or while wearing gloves
- ±3 right-eye dioptric correction
- 58-73mm interpupillary adjustment range
- Three-position twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight and impact-resistant magnesium alloy chassis
- Protective rubber armoring provides a slip-resistant grip
- Nitrogen-filled and O-ring sealed for water and fogproof performance in extreme weather conditions
- Ergonomic design with thumb indents provide a comfortable grip for long-duration glassing
- Tethered eyepiece rainguard and objective lens covers
UPC: 836538003783 In the Box Meopta 8x56 MeoPro HD Binocular Rain Guard for Eyepiece Lenses Stay-On Objective Lens Covers Neck Strap Lens Cloth Case Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 8x56 MeoPro HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 580230 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 56 mm | | Angle of View | 6.0° (actual) | | Field of View | 315.0' @ 1000 yd / 104.6 m @ 1000 m | | Minimum Focus Distance | 23.6' / 7.2 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 18.5 mm | | Interpupillary Adjustment | 58 to 73 mm / 2.3 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.0 x 5.6 x 2.6" / 17.8 x 14.2 x 6.6 cm | | Weight | 36.3 oz / 1029.1 g | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 4.5" |
