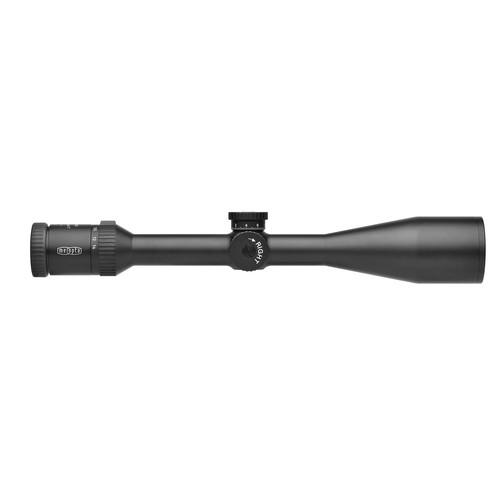

User Manual for Meopta MeoPro 4.5-14x50 Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta MeoPro 4.5-14x50 Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta MeoPro 4.5-14x50 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description The MeoPro 4.5-14x50 BDC Riflescope from Meopta is a versatile durable riflescope designed for all-around targeting in the field and at the range. The objective and eyepiece lenses are armed with the proprietary MeoBright ion-assisted multicoating that serves to reduce glare and reflections and allows a 99.8% light transmission per lens surface. The large 50mm objective lens is designed for maximizing light gathering for low-light observations. A MeoShield coating helps protect the lenses from abrasion. The MeoQuick fast-focus eyepiece is designed to bring your target into sharp focus quickly while a secondary diopter adjustment allows for further adjustments to the focus for users with different visual acuity.The BDC reticle enables shooters to compensate for bullet drop over a specified distance. The duplex crosshair features hash marks on the lower post that show the expected impact point at longer distances to help calculate holdover.The MeoTrak II elevation and windage control system provides posi-click finger adjustments with precise 1/4 MOA per click impact point corrections. Adjustments are made via exposed tactical turrets. Positive tactile and audible clicks ensure accurate zeroing and adjustments. The 1" single-piece main tube is constructed from aircraft grade ELOX hard-anodized aluminum and is shockproof to handle heavy recoil and is coated with a durable, scratch resistant, non-reflective matte black finish. The entire unit is nitrogen purged for waterproof and fogproof all-weather performance. - Optical Performance
-
- Index-matched lenses
- HD optics: high definition, extra-low dispersion, fluoride objective lens elements are designed to eliminate chromatic aberration (CA) or color fringing in challenging lighting conditions and deliver pin-point resolution, increased contrast and vivid color fidelity
- MeoBright - A proprietary ion-assisted lens multi-coating is an ion-assisted multi-coating designed to eliminate glare and reflections and deliver 99.8% light transmission per lens surface
- MeoShield coating helps protect exposed lens surfaces from abrasion
- Construction
-
- 1" main-tube; single piece
- Aircraft-grade aluminum
- "ELOX" hard anodized for scratch resistant, non reflective matte black finish
- Erector system developed to provide maximum holding force, withstand heavy caliber recoil, and eliminate backlash, resulting in repeatable accuracy and zero hold
- Nitrogen purged for water and fogproof performance
- Shockproof to withstand heavy recoil
- Use and Handling
-
- 1/4 MOA adjustments
- MeoQuick fast focus eyepiece - quick and easy reticle focusing
- MeoTrack II Elevation and Windage Control posi-click finger adjustable exposed tactical turrets
- BDC Reticle
-
- Second focal plane
- Compensate for bullet drop over a specified distance
- Duplex crosshair features hash marks on the lower post
- Helps calculate holdover
In the Box Meopta MeoPro 4.5-14x50 Riflescope (BDC Reticle) Turret Caps (Screw-On) Lens Covers Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta MeoPro 4.5-14x50 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 599000 Specs | | | Magnification | 4.5 to 14x | | Objective Lens Diameter | 50 mm | | Field of View | 4.5x: 4.9' @ 100 yd / 1.6 m @ 100 m
14x: 1.1' @ 100 yd / 0.4 m @ 100 m | | Exit Pupil Diameter | 4.5x: 10.8 mm
14x: 3.6 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | BDC Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 45 MOA | | Elevation Adjustment | 68 MOA | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14" / 35.6 cm | | Weight | 19.8 oz / 559.9 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
