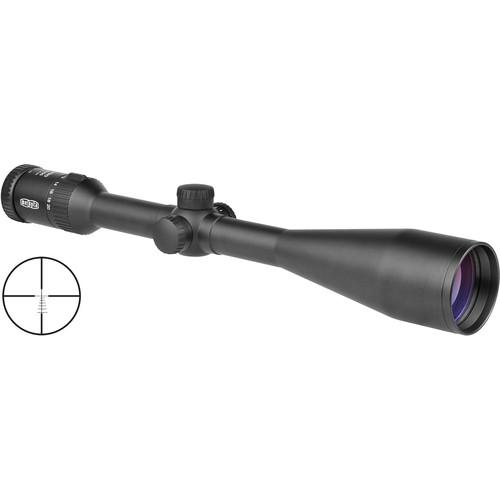

Product description Shooters who regularly stretch their barrels will appreciate the variable power of the MEOPRO 6.5-20x50mm Riflescope from Meopta, with McWhorter HV reticle. It was built with the MeoQuick fast-focus eyepiece that rapidly brings your target into focus and provides extra diopter travel to accommodate a wider range of visual acuity variations. Meopta gave the air-facing lenses their proprietary MeoBright ion-assisted lens multi-coating to help eliminate glare and reflections while delivering excellent light transmission. A side mounted parallax adjustment makes corrections simple.

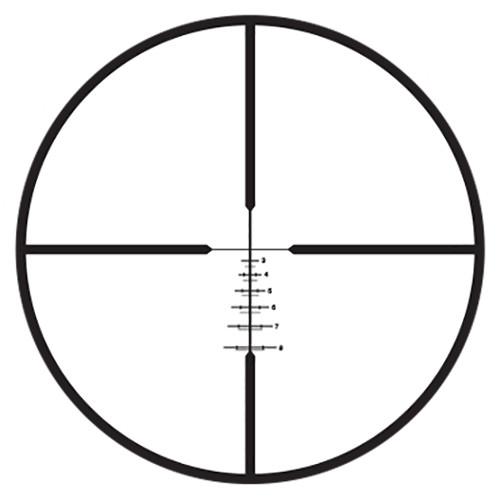

The capped windage and elevation turrets and deliver 1/4 MOA adjustment per click. The McWhorter HV reticle has a series of hash marks for ranging and bullet drop, and was specifically designed for a .264 projectile with a Ballistic Coefficient of .612 @ 3225 FPS. It is optimized for use at 16x.
The erector system was developed to withstand heavy recoil and eliminate backlash, resulting in repeatable accuracy and zero hold. A one piece aluminum alloy 1" maintube is "ELOX" hard anodized for a durable non-reflective matte black finish. The housing is waterproof and nitrogen-filled for fog resistance. To protect external lens surfaces and provide enhanced resistance to scratching or abrasion in extreme conditions, Meopta added their MeoShield Protective Coating. This riflescope carries a limited lifetime warranty. - Optical Performance
-
- Magnification: 6.5-20x
- Objective lens: 50mm diameter
- Maintube diameter: 1"
- MeoBright ion-assisted multi-coatings eliminate glare and reflections while delivering excellent light transmission
- McWhorter HV Reticle
-
- Specifically designed for a .264 projectile with a Ballistic Coefficient of .612 @ 3225 FPS
- Optimized for use at 16x
- Series of hash marks below the crosshair for ranging and bullet drop
- Positioned on the second (rear) focal plane
- Use and Handling
-

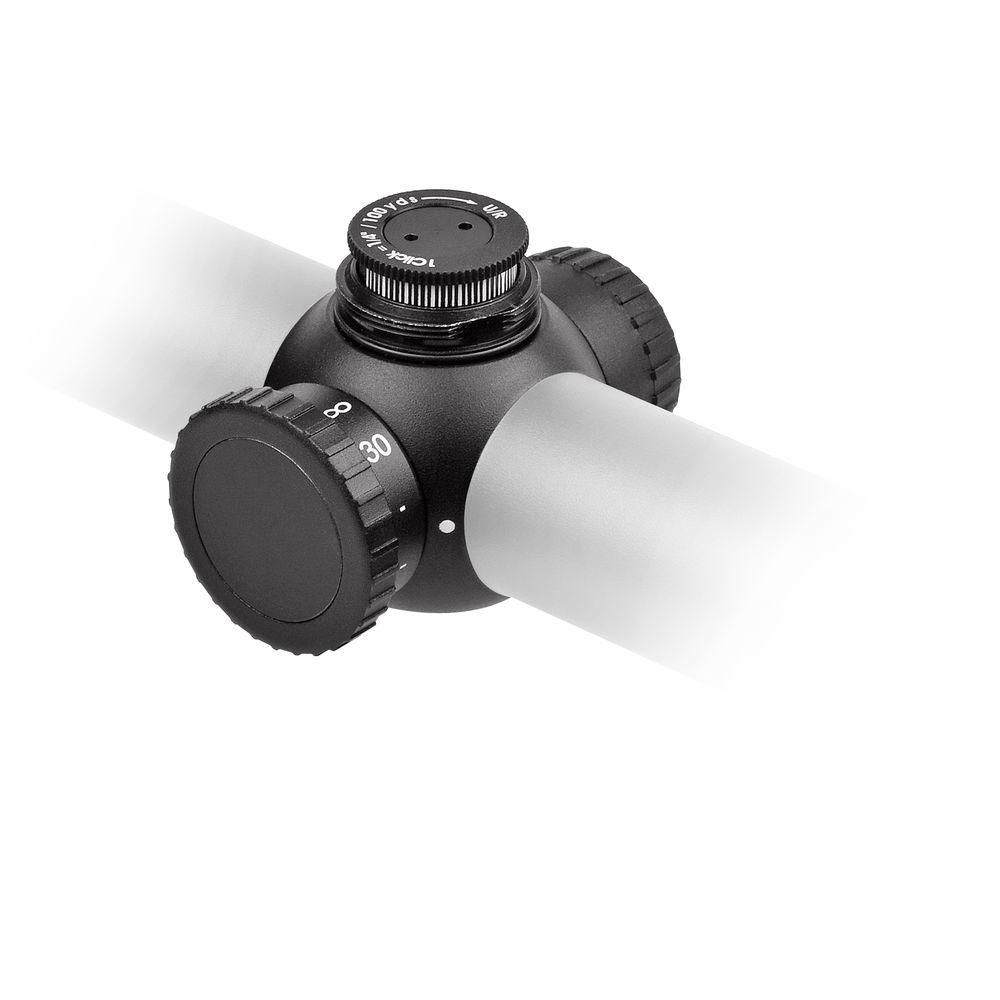

- Capped windage and elevation adjustments are numerically indexed
- 1/4 MOA per click impact point correction offers repeatability and dependability over a lifetime of use
- MeoQuick fast-focus eyepiece rapidly brings your target into focus and provides diopter travel to accommodate a wider range of visual acuity variations
- Side parallax adjustments
- Eye relief: 3.5"
- Exit pupil: 7.7 - 2.5mm
- Construction Details
-
- One-piece housing made of "ELOX" hard anodized aluminum alloy
- Nitrogen-filled for fog-proof performance
- MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions
- Erector system designed to withstand heavy caliber recoil and eliminate backlash
- Weight: 21.8 oz
UPC: 836538003912 In the Box Meopta MEOPRO 6.5-20x50mm Riflescope (McWhorter HV Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta MEOPRO 6.5-20x50mm Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 411970 Specs | | | Magnification | 6.5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 6.5x: 53.1' @ 100 yd / 17.7 m @ 100 m
20x: 17.1' @ 100 yd / 5.7 m @ 100 m | | Exit Pupil Diameter | 5x: 7.7 mm
20x: 2.5 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | McWhorter HV Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 29 MOA | | Elevation Adjustment | 45 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 15.6" / 39.5 cm | | Weight | 21.8 oz / 618 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 17.1 x 5.5 x 4.1" |
