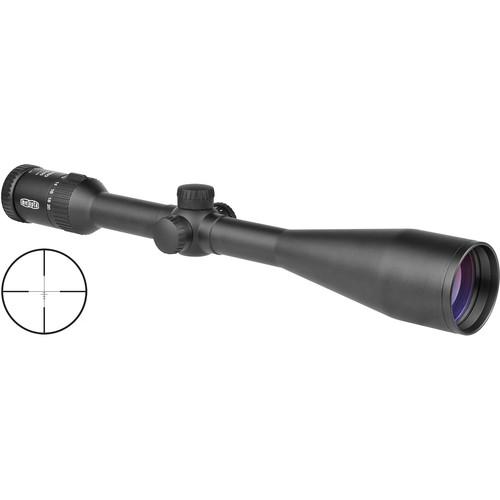

User Manual for Meopta MEOPRO 6.5-20x50mm Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta MEOPRO 6.5-20x50mm Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
 |
User manual for the Meopta MEOPRO 6.5-20x50mm Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description Shooters who regularly stretch their barrels will appreciate the variable power of the MEOPRO 6.5-20x50mm Riflescope from Meopta, with BDC reticle. It was built with the MeoQuick fast-focus eyepiece that rapidly brings your target into focus and provides extra diopter travel to accommodate a wider range of visual acuity variations. Meopta gave the air-facing lenses their proprietary MeoBright ion-assisted lens multi-coating to help eliminate glare and reflections while delivering excellent light transmission. A side mounted parallax adjustment makes corrections simple.

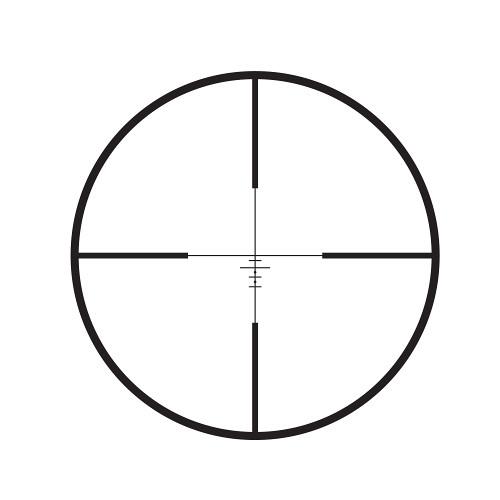

The capped windage and elevation turrets are numerically indexed and deliver 1/4 MOA adjustment per click. The BDC reticle enables shooters to compensate for the amount a bullet drops over a particular distance. Markings below the reticle's center indicate the expected impact point at a given distance, with lower markings showing the expected impact point at longer distances.
The erector system was developed to withstand heavy recoil and eliminate backlash, resulting in dependable accuracy and zero hold. A one piece aluminum alloy 1" maintube is "ELOX" hard anodized for a durable non-reflective matte black finish. The housing is waterproof and nitrogen-filled for fog resistance. To protect external lens surfaces and provide enhanced resistance to scratching or abrasion in extreme conditions, Meopta added their MeoShield Protective Coating. This riflescope carries a limited lifetime warranty. - Optical Performance
-
- Magnification: 6.5-20x
- Objective lens: 50mm diameter
- Main tube diameter: 1"
- MeoBright ion-assisted multi-coatings eliminate glare and reflections while delivering excellent light transmission
- BDC Reticle
-
- Bullet Drop Compensation reticle enables shooters to compensate for the amount a bullet drops over a particular distance
- Positioned on the second (rear) focal plane
- Use and Handling
-

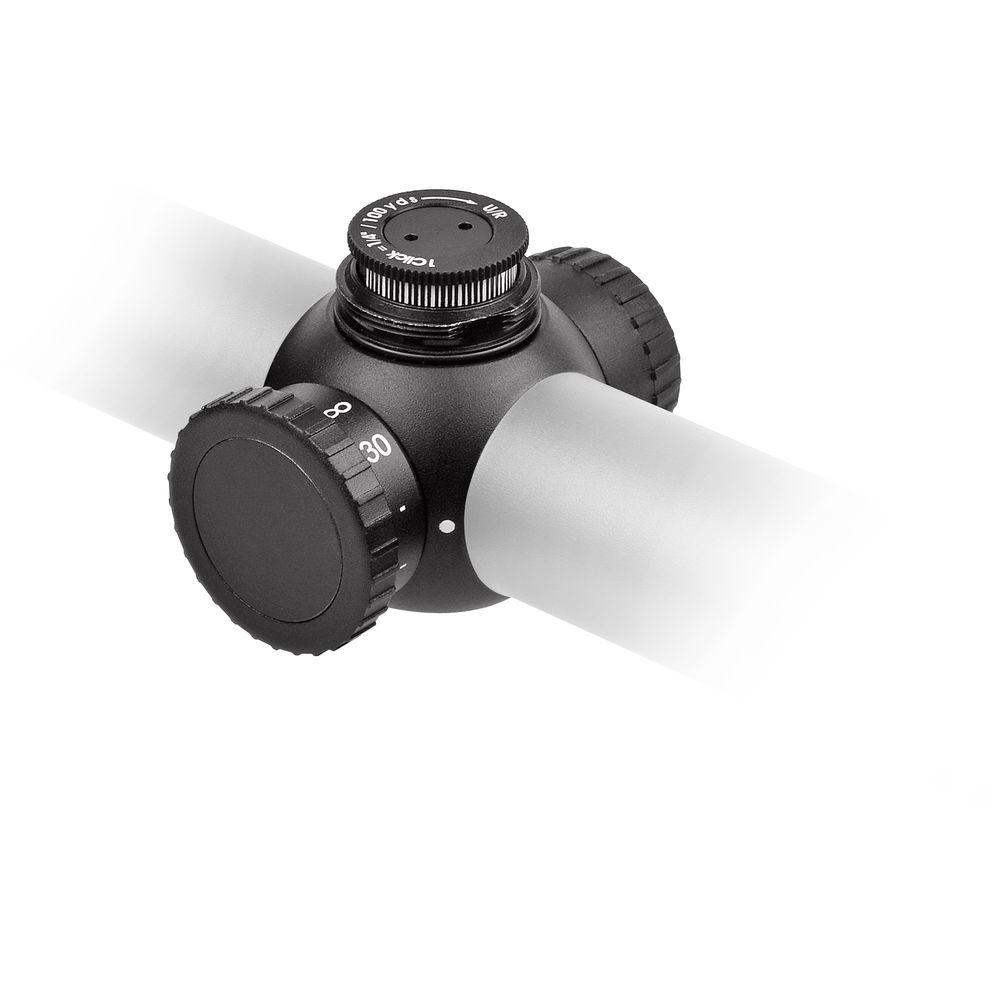

- Capped MeoTrak TRZ windage and elevation adjustments are numerically indexed
- 1/4 MOA per click impact point correction offers repeatability and dependability over a lifetime of use
- MeoQuick fast-focus eyepiece rapidly brings your target into focus and provides diopter travel to accommodate a wider range of visual acuity variations
- Side parallax adjustments
- Eye releief: 3.5"
- Exit pupil: 7.7 - 2.5mm
- Construction Details
-
- One-piece housing made of "ELOX" hard anodized aluminum alloy
- Nitrogen-filled for fog-proof performance
- MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions
- Erector system designed to withstand heavy caliber recoil and eliminate backlash
- Weight: 21.8 oz
UPC: 836538003899 In the Box Meopta MEOPRO 6.5-20x50mm Riflescope (BDC Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta MEOPRO 6.5-20x50mm Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 411950 Specs | | | Magnification | 6.5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 6.5x: 53.1' @ 100 yd / 17.7 m @ 100 m
20x: 17.1' @ 100 yd / 5.7 m @ 100 m | | Exit Pupil Diameter | 5x: 7.7 mm
20x: 2.5 mm | | Eye Relief | 3.5" / 89 mm | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 29 MOA | | Elevation Adjustment | 45 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 15.6" / 39.5 cm | | Weight | 21.8 oz / 618 g |
