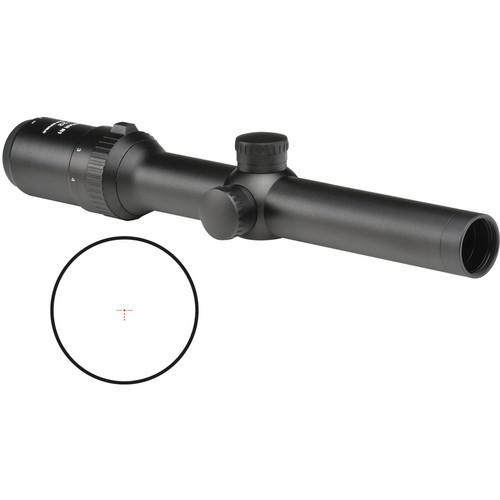

User Manual for Meopta MeoStar 1-4x22 ZD Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta MeoStar 1-4x22 ZD Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
|
User manual for the Meopta MeoStar 1-4x22 ZD Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|
Product description The MeoStar 1-4x22 ZD Riflescope from Meopta is a versatile durable hunting riflescope designed for short-range targeting in the field and at the range. The 22mm multi-coated objective lens transmits a clear bright image with high contrast, even in low light. An illuminated etched glass reticle located in the rear focal plane provides the operator with enhanced range estimation and trajectory compensation at the high end of the magnification range. MeoStar series riflescopes use a proprietary system to maintain mechanical resistance within the windage/elevation turrets, ensuring accuracy of small and large caliber rifles from one shot to the next. Meopta's Advanced Illumination Technology powers a 2 MOA dot at seven levels of intensity, with an off position between each level. This feature allows you to precisely adjust to ambient light as conditions change, while eliminating the possibility of reticle flare in very low light conditions. The wide field of view makes the MeoStar 1-4x22 ideal for maximizing situational awareness and employing a both eyes open targeting technique. The fast focus eyepiece, illuminated reticle, impact resistant weather-sealed housing, and crisp edge-to-edge image quality equip this riflescope with the features needed to perform in a range of climates and shooting conditions. - MeoBrite Optical Coatings
- Lenses are fully multi-coated with MeoBrite 5501 ion assisted lens coatings to deliver maximum brightness and clarity. MeoShield coating protects exposed lens surfaces and exceeds military specification for abrasion resistance.
- MeoTrack II Windage/Elevation Adjustment
- 1/2" MOA (at 100 yd) posi-click finger adjustable windage and elevation turrets deliver precise adjustments with superior repeatability and tracking capability.
- MeoQuick Eyepiece
- Fast and accurate focusing throughout the entire range of magnification and precise reticle placement on your target. A precision tuned ocular system is optimized to provide a wide field of view for rapid target acquisition.
- Erector System
- Rugged design provides extra hold for maintaining dead-on zero and delivering precise magnification adjustment with no change in point of impact through entire range.
- Advanced Illumination Technology
- Precisely adjust to ambient lighting conditions by choosing from seven levels of intensity adjustment with an off position between each level.
- Aluminum Construction
- One piece, ELOX anodized aircraft aluminum 30mm main tube is weather sealed, nitrogen purged, shock resistant, scratch resistant, and non-reflective.
UPC: 836538002106 In the Box Meopta MeoStar 1-4x22 ZD Riflescope Turret Caps Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta MeoStar 1-4x22 ZD Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 528210 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 22 mm | | Field of View | 1x: 108' @ 100 yd / 33 m @ 100 m
4x: 26' @ 100 yd / 8 m @ 100 m | | Exit Pupil Diameter | 1x: 13.5 mm
4x: 5.5 mm | | Eye Relief | 3.3 to 3.5" / 84 to 89 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | ZD Second Reticle | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 115 MOA | | Elevation Adjustment | 115 MOA | | Parallax Correction | No | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2354 | | Dimensions | Length: 12" / 30.5 cm | | Weight | 18.9 oz / 536 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 14.5 x 4.8 x 3.4" |
