User Manual for Meopta MeoStar R2 8x56 Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta MeoStar R2 8x56 Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
 |
User manual for the Meopta MeoStar R2 8x56 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|

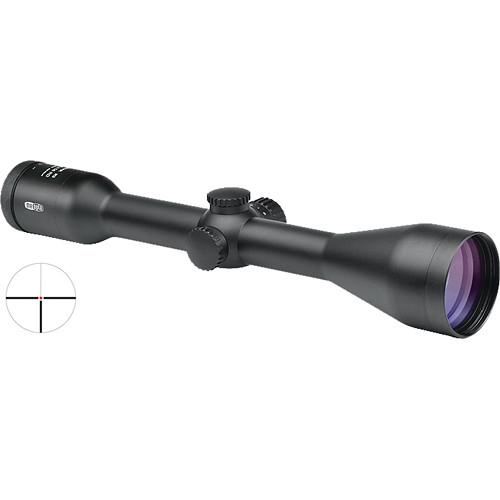

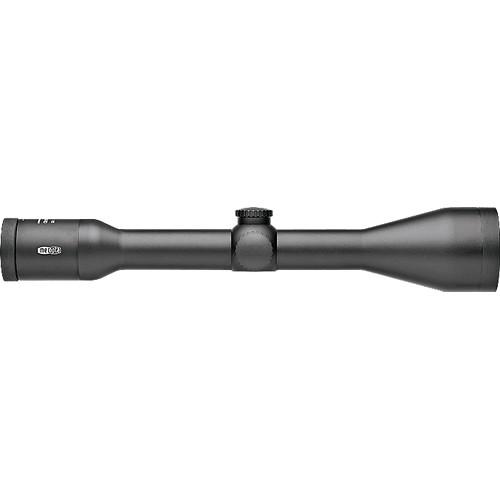

Product description Enjoy an easy-to-view 4C reticle in the height of the sun or in the depth of the night with the MeoStar R2 8x56 Riflescope from Meopta. A 30mm maintube is combined with the MeoLux ion-assisted multi-coating to provide significant light transmission per lens surface. To further enhance usefulness, Meopta coated the external lenses with their MeoDrop hydrophobic coating to repel water, grease, skin oils, and other lens surface contaminates that can impair clarity.

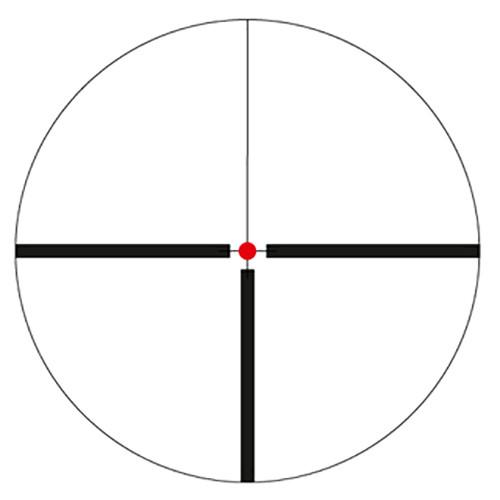

The 4C etched glass reticle features RedZone 8 Illumination, a user-selectable illumination system with 8 levels of reticle intensity. Low profile turret control provides rapid selection, with intermediate off positions between each level. The 4C design has thick side and bottom posts and a thin crosshair centering the illuminated red dot. MeoTrak II finger adjustable windage and elevation adjustments deliver 1/4 MOA adjustment per click, and the MeoClick tactile-disc turrets allow for quick and easy reticle adjustments with positive tactile and audible clicks ensure accurate zeroing and adjustability in the field.
The erector system was developed to withstand heavy recoil and eliminate backlash, resulting in repeatable accuracy and zero hold. A one piece aluminum alloy maintube is "ELOX" hard anodized for a durable non-reflective matte black finish. The housing is waterproof and nitrogen-filled for fog resistance. To protect external lens surfaces and provide enhanced resistance to scratching or abrasion in extreme conditions, Meopta added their MeoShield protective coating. This riflescope carries a limited lifetime warranty. - Optical Performance
-
- Magnification: 8x
- Objective lens: 56mm diameter
- Maintube diameter: 30mm
- MeoLux ion-assisted multi-coatings delivers significant light transmission per lens surface
- Illuminated 4C Reticle
-
- RedZone 8 Illumination user-selectable illumination system delivers 8 levels of intensity
- 4C provides fast target acquisition in lower light and against tangled backgrounds
- Etched glass reticle
- Positioned on the second (rear) focal plane
- Use and Handling
-
- MeoTrak II posi-click finger adjustable windage and elevation
- MeoClick tactile-disc turrets provide tactile and audio feedback
- 1/4 MOA per click impact point correction
- Eye relief: 3.9"
- Exit pupil: 7mm
- Construction Details
-
- One-piece housing made of "ELOX" hard anodized aluminum alloy
- Nitrogen-filled for fog-proof performance
- MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions
- Erector system designed to withstand heavy caliber recoil and eliminate backlash
- Weight: 21.8 oz
UPC: 836538003233 In the Box Meopta MeoStar R2 8x56 Riflescope (4C Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta MeoStar R2 8x56 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta R2 Specs | | | Magnification | 8x | | Objective Lens Diameter | 56 mm | | Field of View | 135.1' @ 100 yd / 45.1 m @ 100 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | 4C Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 56 MOA | | Elevation Adjustment | 56 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032, CR2354 | | Battery Runtime | 300 Hours | | Dimensions | Length: 13.9" / 35.3 cm | | Weight | 20.7 oz / 587 g |
