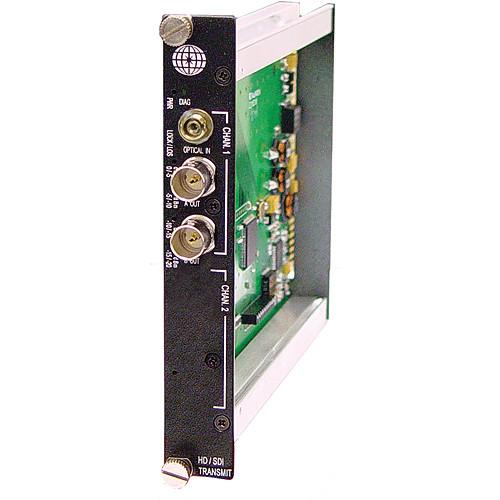

User Manual for Meridian Technologies 1-channel Single-mode Multi-rate 3G-SDI Video Receiver Click to enlarge the picture
Contents of the user manual for the Meridian Technologies 1-channel Single-mode Multi-rate 3G-SDI
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies 1-channel Single-mode Multi-rate 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies 1-channel Single-mode Multi-rate 3G-SDI Video Receiver offers multi-rate SDI & 3G-SDI reception (19 Mbps to 2.97 Gbps (3G)). The video receiver supports multiple formats, 19.4 Mbps SMPTE 310M, 143 to 540 Mbps SMPTE 259M/344M, 1.485 Gbps SMPTE 292M HDTV, DVB-ASI at 270 Mbps, 2.97 Gbps (3G) SMPTE 424M, and SMPTE 305M SDTI, providing the user with a range of recording options. This 3G-SDI video receiver is rack mountable in 1RU of rack space. With real-time, uncompressed video reception, it captures video without any loss in quality. The error-free pathological pattern performance ensures zero-error reception. A reception range of 30 km allows the video receiver greater mobility and placement options. Since the receiver supports embedded audio and metadata, external equipment to capture this data is not required. The receiver has four LED indicators for power, Rx optical power, Tx video signal present, and laser over current. The video receiver has a wide dynamic range, which eliminates the need any optical attenuators. The video receiver has an optional small Tx (which allows you to easily mount the unit on the back of any broadcast camera) and an FC optical connector. High-performance digital reception technologies not only ensure quick setup but also eliminate the need for manual adjustments. - Single-mode fiber support
- Record/store data as per your needs owing to support for multi-rate SDI, HD-SDI, and 3G-SDI reception (19 Mbps to 2.97 Gbps (3G))
- Multiple format support-19.4 Mbps SMPTE 310M, 143 To 540 Mbps SMPTE 259M/344M, 1.485 Gbps SMPTE 292M HDTV, DVB-ASI at 270 Mbps, 2.97 Gbps (3G) SMPTE 424M, and SMPTE 305M SDTI-translates into many recording options
- Easy installation in any setup, courtesy the rack mountable design (1RU)
- Real-time, uncompressed video reception ensures that videos are captured with no loss in quality
- Error free pathological pattern performance yields zero-error reception
- Excellent mobility guaranteed by the 30+ km reception range
- Support for embedded audio and metadata eliminate the need for external equipment to capture such information
- LED indicators (for power, Rx optical power, Tx video signal present, laser over current) ease monitoring and operations
- No need for optical attenuators given the unit's wide dynamic range
- Optional small Tx allows for easy mounting on the back of a broadcast camera
- Use of high-performance digital reception technologies to allow for the lowest possible setup times and eliminate the need for user adjustments
In the Box Meridian Technologies 1-channel Single-mode Multi-rate 3G-SDI Video Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies 1-channel Single-mode Multi-rate 3G-SDI Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-1HG-3FC Specs | Formats | 19.4 Mbps (SMPTE 310M)
143 To 540 Mbps SMPTE 259M/344M
1.485 Gbps SMPTE 292M HDTV
DVB-ASI at 270 Mbps
2.97Gbps (3G) SMPTE 424M
SMPTE 305M SDTI Rates | | Video | Nominal Level: 0.8 Vp-p, 1.0 Vp-p max.
Data Rate: 19Mb/s - 3Gb/s
Impedance: 75 Ohm
Gain: Unity
Input Coupling: AC
Return Loss: >15 dB
Jitter (Pathological Data Pattern): < 0.2 UI
Cable Equalization: Automatic 0-70m @ 3 Gb/s
Bit-Error Rate (0 to -20dBm): 10-12 | | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST, FC | | Power | Card: 2W | | Physical | Dimensions (WxHxD): 0.8 x 6.3 x 5" (20 x 160 x 127mm)
Weight: 16 oz (450g)
Slots: 1 | | Operating Temperature | -13 ~ 140°F (-25 ~ +60°C) | | Quality | >200,000 hours @ Ground Fix on Single channel 95°F (35°C) per MIL217F | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.764 x 6.929 x 2.992" |
