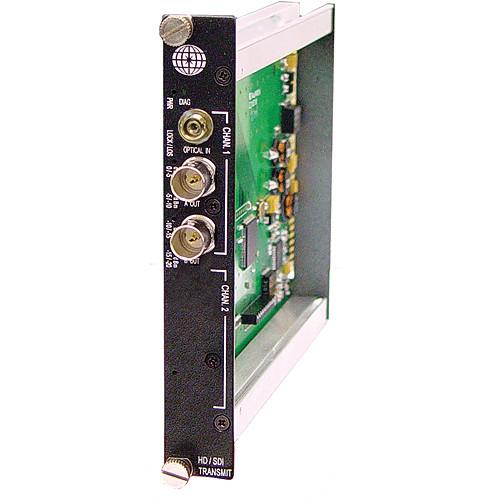

User Manual for Meridian Technologies 1-channel Single-mode Multi-rate HD-SDI Video Receiver Click to enlarge the picture
Contents of the user manual for the Meridian Technologies 1-channel Single-mode Multi-rate HD-SDI
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies 1-channel Single-mode Multi-rate HD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies 1-channel Single-mode Multi-rate HD-SDI Video Receiver offers multi-rate SDI & HD-SDI reception (19 Mbps to 2.97 Gbps (3G)). This 1-channel video receiver supports multiple formats, 19.4 Mbps SMPTE 310M, 143 to 540 Mbps SMPTE 259M/344M, 1.485 Gbps SMPTE 292M HDTV, DVB-ASI at 270 Mbps, 2.97 Gbps (3G) SMPTE 424M, and SMPTE 305M SDTI, which provide a range of recording options. Its real-time, uncompressed video reception enables video capture with no quality loss. Error-free pathological pattern performance yields zero-error reception. As it is rack mountable (occupying 1RU of rack space), the video receiver is compatible with varied setups. It supports embedded audio and metadata, eliminating the need for any external equipment to capture this data. With a reception range of 30+ km, the receiver offers greater mobility. Four LEDs indicate power, Rx optical power, Tx video signal present, and laser over current. Wide dynamic range provides clear images even over varying light conditions, eliminating the need for optical attenuators. High-performance digital reception technologies ensure quick setup with minimal adjustment. The multi-rate HD-SDI video receiver also comes with an optional small Tx (for easy mounting on the back of a broadcast camera) and an FC optical connector. - Single-mode fiber support
- Multi-rate SDI and HD-SDI reception (19 Mbps to 2.97 Gbps (3G)), allows you to record/store data as per your needs
- Real-time, uncompressed video reception implies that you will be able to capture all the video data with no loss in quality
- Support for multiple formats, 19.4 Mbps SMPTE 310M, 143 To 540 Mbps SMPTE 259M/344M, 1.485 Gbps SMPTE 292M HDTV, DVB-ASI at 270 Mbps, 2.97 Gbps (3G) SMPTE 424M, and SMPTE 305M SDTI, gives you plenty of recording options
- Error free pathological pattern performance for zero-error reception
- Rack mountable design (1 RU) ensures easy installation in almost any setup
- Support for embedded audio and metadata eliminate the need for external equipment to capture such information
- Reception range of 30+ km provides excellent mobility
- LED indicators (for power, Rx optical power, Tx video signal present, and laser over current) make monitoring the unit rather easy
- Wide dynamic range eliminates the need for optical attenuators
- No user adjustments are required, courtesy of the high-performance digital reception technologies used that ensure setup in the fastest possible time
- Optional small Tx for easy mounting on the back of a broadcast camera
In the Box Meridian Technologies 1-channel Single-mode Multi-rate HD-SDI Video Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies 1-channel Single-mode Multi-rate HD-SDI Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-1HD-3FC Specs | Formats | 19.4 Mbps (SMPTE 310M)
143 To 540 Mbps SMPTE 259M/344M
1.485 Gbps SMPTE 292M HDTV
DVB-ASI at 270 Mbps
2.97Gbps (3G) SMPTE 424M
SMPTE 305M SDTI Rates | | Video | Nominal Level: 0.8 Vp-p, 1.0 Vp-p max.
Data Rate: 19Mb/s - 1.5Gb/s
Impedance: 75 Ohm
Gain: Unity
Input Coupling: AC
Return Loss: >15 dB
Jitter (Pathological Data Pattern): < 0.2 UI
Cable Equalization: Automatic 0-200m @ 1.5 Gb/s
Bit-Error Rate (0 to -20dBm): 10-12 | | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST, FC | | Power | Card: 2W | | Physical | Dimensions (WxHxD): 0.8 x 6.3 x 5" (20 x 160 x 127mm)
Weight: 16 oz (450g)
Slots: 1 | | Operating Temperature | -13 ~ 140°F (-25 ~ +60°C) | | Quality | >170,000 hours @ Ground Fix 95°F (35°C) per MIL217F | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
