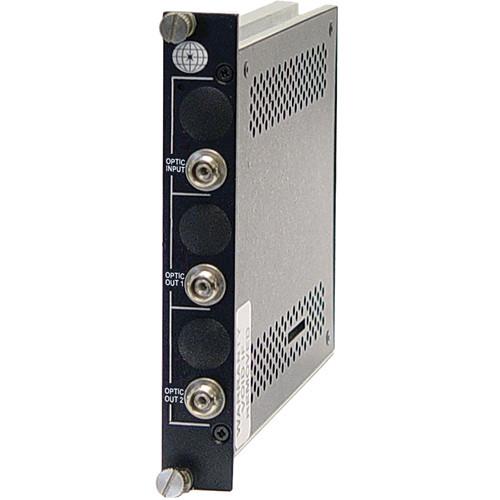

User Manual for Meridian Technologies 2-channel Optical Demultiplexer Click to enlarge the picture
Contents of the user manual for the Meridian Technologies 2-channel Optical Demultiplexer
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies 2-channel Optical Demultiplexer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies 2-channel Optical Demultiplexer (Single-mode) has a 1 slot digital module design which allows easy installation in any Meridian desk chassis or in any 19" racking frame. The Demultiplexer separates 2 individual optical wavelengths - the 1310 and 1550 nm - to provide optical multiplexing over a single fiber. As the Optical Demultiplexer is compatible with all Meridian FM and Digital series products, it can be used in a variety of setups. The unit comes with an FC or ST optical connector, and can be used as a standalone module when attached to an SR-500/S (standard configuration) or an SR-1000/S. The hot swappable cards can be inserted or removed even when the power is on, without interfering with the system's operation. The unit can be used in various markets such as the intelligent transportation system (ITS), video transport system, access control, and security and surveillance. - 1 slot digital module design ensures hassle-free install in any Meridian desk chassis or 19" racking frame
- Separates the 1310 nm and 1550 nm optical wavelengths, providing optical multiplexing over a single fiber
- Compatible with all Meridian FM and Digital series products, thus ensuring widespread usability
- FC or ST optical connector
- Can be used as a standalone module when used with an SR-500/S (standard configuration) or an SR-1000/S
In the Box Meridian Technologies 2-channel Optical Demultiplexer (Single-mode) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies 2-channel Optical Demultiplexer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SD-2-SMFC Specs | Optical | Insertion Loss: 1.5dB
Return Loss: >30dB
Wavelength: 850/1300nm | | Connectors | Optical: ST,FC
Power: None - passive | | Quality | MTBF: >170,000 hours @ Ground Fix 95°F (35°C) per MIL217F | | Physical | Dimensions (WxHxD): 0.8 x 6.3 x 5" (20 x 160 x 127mm)
Weight: 16 oz (150g)
Slots: 1 | | Operating Temperature | -29 - 165°F (-34 ~ +74°C) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
