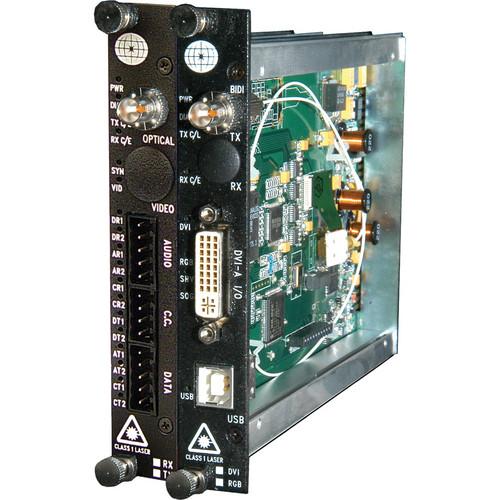

Product description The Meridian Technologies DR-1DV2A1D/1D-0 DigiView DVI Transmitter is a module designed to send DVI signals over fiber optic cable. The module digitally encodes the data and can carry up to 2 channels of audio. The unit supports a wide variety of computer resolutions up to 1600 x 1200, as well as 720p and 1080i high definition. All in real-time the video requires no adjustments, equalization or deskewing during setup. The module is compatible with SpectraSmart network management system - The unit comes equipped with RS-232C connectivity, giving it the capability of connecting to a wide variety of remote control devices. Additional devices include scanners, a computer mouse, or touch-screen display.
- Transmits DVI signal over one multimode fiber.
- Supports VGA, SVGA, XGA, SXGA, and UXGA formats and HDTV resolutions of 480p, 720p, and 1080i.
- H/V sync frequency range of 60-150Hz (vertical), 30-130kHz (horizontal).
- Uses all-digital processing for crystal clear signals and no color skewing.
- Real-time video for exceptional quality and resolution no video compression.
- Requires no adjustments, equalization or deskewing during setup.
- Data throughput in excess of 6 Gbps (uncompressed). Most systems have 1.25 Gbps throughput with significant compression.
- DDC (Data Display Channel) optional.
- Standard DVI-I video connector included.
- USB interface for remote monitor adjustments.
- Wide optical dynamic range, eliminating the need for optical attenuators.
- Multimode laser based system.
- SpectraSmart network management compatible.
In the Box Meridian Technologies DR-1DV2A1D/1D-0 DigiView DVI Transmitter with RS-232C Support 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DR-1DV2A1D 1D-0 DigiView DVI Transmitter with RS-232C Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-1DV2A1D/1D-0 Specs | | | Ports | Transmitter:
1 x DVI-I (Input)
1 x USB Type-B USB 2.0 (Input)
1 x Terminal Block Audio (Input) | | Supported Resolutions | 1600 x 1200
640 x 480 | | Transmission Method | Multimode Cable | | Video Channel | 1-Channel | | | | Operating Temperature | 14 to 122°F / 10 to 50°C | | Storage Temperature | 67 to 185°F / 55 to 85°C | | | | Status Monitoring | LED Indicator | | Dimensions | 1.6 x 5.0 x 6.3" / 4.0 x 12.7 x 16.0 cm | | Weight | 2.0 lb / 907.2 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
