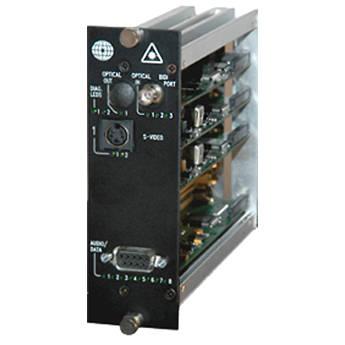

User Manual for Meridian Technologies DR-1S2A-3 Singlemode 10-Bit S-Video Receiver Card Click to enlarge the picture
Contents of the user manual for the Meridian Technologies DR-1S2A-3 Singlemode 10-Bit S-Video
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies DR-1S2A-3 Singlemode 10-Bit S-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies DR-1S2A-3 Singlemode 10-Bit S-Video Receiver Card incorporates digital encoding technology with fiber optics. The module receives (1) real-time, simplex 10-bit S-Video NTSC signal, along with (2) simplex channels of 24-bit quality audio over one optical fiber channel, for a distance up to.
Enhanced functionality includes compatibility with Meridian's PC based SpectraSmart software system. SpectraSmart supervises the operating parameters of the transmission system such as the status on video levels, sync, digital carrier detect, voltages, temperatures, and optical levels. - 10-Bit video digital encoding.
- Real-time S-Video and audio reception.
- Meets RS-250C short haul transmission specifications.
- NTSC video signal compatible.
- Real-time 2-channel 24-bit audio.
- Wide optical dynamic range eliminates the need for optical attenuators.
- Laser based systems for multimode and singlemode.
- Surface mount technology (SMT) for high reliability and repeatability.
- SpectraSmart network management compatible.
- Local LED status indicators to monitor critical system diagnostics for performance parameters
- ST, FC optical connector.
- Laser back photo detector circuitry for stable optical output over full temperature range.
- Meets EIA RS-170, RS-343A formats.
In the Box Meridian Technologies DR-1S2A-3 Singlemode 10-Bit S-Video Receiver Card 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DR-1S2A-3 Singlemode 10-Bit S-Video Receiver Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DR-1S2A-3ST Specs | Signal System | NTSC | | Inputs/Outputs | S-Video: 4-Pin Mini DIN
Analog Audio: 9-Pin DSub
Optical | | LED Indicators | Power On: Green
TX Carrier/Laser Over Current: Bi-Color
RX Carrier-Present/Error: B-Color
RX Optical Signal Present/Absent: Green
Video Present/Overload: Bi-Color
Audio Overload: Red
Audio Present: Green | | Data Rate | 500Mbps | | Operating Temperature | -40-165.2°F (-40-74°C) | | Storage Temperature | -67-185°F (-55-85°C) | | Power Requirements | Not Specified By Manufacturer | | Power Consumption | 8W | | Dimensions (WxHxD) | 0.8 x 6.3 x 5" (4.4 x 16 x 12.7cm) | | Weight | 1 lbs (0.5kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
