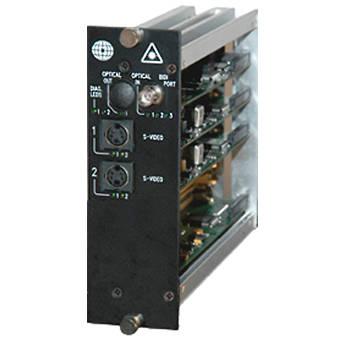

Product description The Meridian Technologies DR-2S-3FC Dual Slot Fiber Optic S-Video Multiplexer is a reliable, cost effective digital video receiver that receives S-Video signals over fiber optic cable. This card has the ability to receive (2) signals using the SM (Singlemode) fiber optic connector.
This system can also receive 10-bit S-Video, NTSC signals over Multimode fiber as well. Its wide optical dynamic range and durable casing make it ideal for many environments, including CCTV support, campus lecture networks, as well as a variety of professional video applications.
Additional features include SpectraSmart network management software, and SMT (surface mount technology). The cards are completely hot-swappable and meet all EIA standards. - 10-Bit digital video encoding.
- Receives (2) real-time video signals over (1) optical fiber.
- Meets RS-250C transmission specifications with complete NTSC compatibility.
- Wide optical dynamic range.
- Surface mount technology (SMT) for high reliability.
- SpectraSmart network management compatible.
- Local LED status indicators monitor critical system diagnostics.
- STTM, FC optical connector.
- Completely hot-swappable.
- Biased detector circuitry for stable optical output across a full temperature range.
- Can be rackmounted using optional rackmount cards.
In the Box Meridian Technologies DR-2S-3FC Dual Slot Fiber Optic S-Video Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DR-2S-3FC Dual Slot Fiber Optic S-Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DR-2S-3FC Specs | Format | NTSC | | Bandwidth | 5-6.8MHz
500 MB/s | | Return Loss | >30dB | | Inputs/Outputs | S-Video: 4-Pin Mini DIN (x2 Output)
ST, FC: SM Optical (x1 Input) | | Operating Temperature | -29.2-165.2°F (-34-74°C) | | Storage Temperature | -67-185°F (-55-85°C) | | Power Requirements | Supplied by Multiplexer | | Power Consumption | 8W | | Dimensions (LxWxH) | 6.2 x 4 x 1.7" (16 x 10 x 4.4cm) | | Weight | 16oz (450 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
