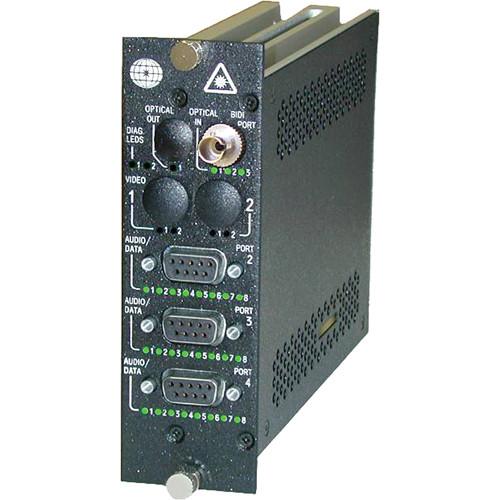

User Manual for Meridian Technologies DT-1A1C2K 2K-5ST DigiFlex Laser-Based Single-Mode Transmitter with ST Optical Connector Click to enlarge the picture
Contents of the user manual for the Meridian Technologies DT-1A1C2K 2K-5ST DigiFlex Laser-Based
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies DT-1A1C2K 2K-5ST DigiFlex Laser-Based contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies DT-1A1C2K/2K-5ST DigiFlex Laser-Based Single-Mode Transmitter with ST Optical Connector incorporates digital encoding technology. This fiber optic module transmits one unidirectional 24-bit audio, one unidirectional contact closure, and two bi-directional RS-485 data channels over a multimode fiber.It incorporates plug-in personality signal cards to easily configure a wide variety of module types. The functionality of this DT/DR-1A1C2K/2K Series Transmitter is enhanced by its compatibility with Meridian’s PC-based SpectraSmart Network Management & Diagnostic Software system. SpectraSmart supervises the operating parameters of the transmission system such as the status on video levels, sync, digital carrier detect, voltages, temperatures, optical levels, etc.The transmitter is available with rack mount cards and modules that can be installed in Meridian’s card chassis, desk chaises, and 19” racking frames (sold separately). This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. It can also be made a standalone system by using the SR-1000/s 2-slot desk / wall mount chassis (87 to 264VAC; sold separately). - Transmits one unidirectional 24-bit audio, one unidirectional contact closure, and two bidirectional RS-485 data channels
- Real time audio / contact closure
- Contact closure with 24-bit audio
- Meets RS-250C short haul transmission specifications
- Wide Optical Dynamic Range: Eliminates the need for optical attenuators
- Laser-based systems for single mode
- SMT (Surface Mount Technology) for high reliability and repeatability
- SpectraSmart Network Management compatible
- Local LED status indicators to monitor critical system diagnostics for performance parameters
- Laser back biased photo detector circuitry for stable optical output over full temperature range
- Meets EIA RS-170 and RS-343A formats
- DB 9-type connector for audio
- HD 15-pin connector for contact closure
- Markets: Access control, security and surveillance, ITS (Intelligent Transportation Systems)
In the Box Meridian Technologies DT-1A1C2K/2K-5ST DigiFlex Laser-Based Single-Mode Transmitter (1,310/1,550 nm) with ST Optical Connector Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DT-1A1C2K 2K-5ST DigiFlex Laser-Based Single-Mode Transmitter with ST Optical Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-1A1C2K/2K-5ST Specs | | | Formats | RS-485 | | Rate | DC to 1 Mb/s | | Bit Error Rate | 10-9 Measured at maximum optical budget | | | | Formats | Contact closure | | Contact | Rating: 0.3 A, 30 VAC/DC
Bounce Time: 5 ms | | Rate | CC: 10 Hz | | Bit Error Rate | 10-9 Measured at maximum optical budget | | | | I/O Impedance | 600 Ω (Balanced / unbalanced) | | Frequency Response | 10 Hz to 20 kHz | | SNR | >90 dB (Weighted) @ 1 kHz | | Input / Output Level | -8 to +8 dBm (4 Vpp maximum; +18 dBm available on request) | | Total Harmonic Distortion | <0.01% @ 1 kHz | | Resolution | 24 bit | | | | Optical | ST, FC | | Power | Using the SR-1000 Desk / Wall Mount Chassis with Power Supply (sold separately) | | Audio | DB9 female | | Contacts | HD 15-pin female | | | | Card | 8 W Due to variations in drivers and diagnostic options, power shown at maximum value | | | | Fiber type | Single-Mode (FP Laser): 9 / 125 µm | | Data Rate | Fiber: 250 Mb/s | | Optical Output | -3 dBm | | Optical Budget | 21 dB | | Wavelength | 1,310 / 1,550 nm | | Optical Connector | ST, FC | | Dynamic Range | Optical: 24 dB | | MTBF | >240,000 hours @ Ground Fix
35°C per MIL217F | | | | Operating Temperature | -29.2 to 165.2°F (-34 to +74°C) | | Storage Temperature | -67 to 185°F (-55 to +85°C) | | Relative Humidity | 0 to 95% non-condensing | | | | Number of Slots | 2 | | LED Indicators | Power On: 1x Green
TX Carrier/ Laser Over Current: 1x Bi-color
RX Carrier - Present / Error: 1x Bi-color
RX optical signal - Present / Absent: 1x Bi-color
Transmit / Receive Contact Closure: 1x Green
Audio Present: 1x Green
Audio Overload: 1x Red | | Dimensions (L x W x H) | Card: 6.3 x 4.0 x 1.7" (160.0 x 100.0 x 44.0 mm) | | Weight | Card: 16 oz (450 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
