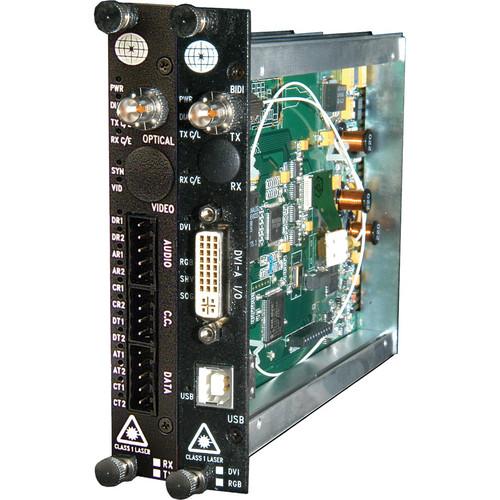

User Manual for Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter Click to enlarge the picture
Contents of the user manual for the Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter
- Product category: KVM Extenders Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies KVM Extenders
|
User manual for the Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter is a module designed to send DVI signals over fiber optic cable. The module digitally encodes the data and can carry up to 2 channels of audio. The unit supports a wide variety of computer resolutions up to 1600 x 1200, as well as 720p and 1080i high definition. All in real-time, the video requires no adjustments, equalization or deskewing during setup. The module is compatible with SpectraSmart network management system. - Digital transmission of DVI over one multimode fiber.
- It supports computer resolutions up to 1600 x 1200 and HDTV resolutions up to 1080i.
- H/V sync frequency range of 60-150Hz (vertical), 30-130kHz (horizontal).
- Uses all-digital processing for crystal clear signals and no color skewing.
- Real-time video for exceptional quality and resolution no video compression.
- Requires no adjustments, equalization or deskewing during setup.
- Data throughput in excess of 6 Gbps (uncompressed). Most systems have 1.25 Gbps throughput with significant compression.
- DDC (Data Display Channel) optional.
- Standard DVI-I video connector.
- USB interface for remote monitor adjustments.
- Wide optical dynamic range, eliminating the need for optical attenuators.
- Multimode laser based system.
- SpectraSmart network management compatible.
In the Box Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DT-1DV2A-0 DigiView DVI Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-1DV2A-0 Specs | | | Ports | Transmitter:
1 x DVI-I (Input)
1 x USB Type-B USB 2.0 (Input) | | Supported Resolutions | 1600 x 1200
640 x 480 | | Transmission Method | Multimode Cable | | Video Channel | 1-Channel | | | | Operating Temperature | 14 to 122°F / 10 to 50°C | | Storage Temperature | 67 to 185°F / 55 to 85°C | | | | Status Monitoring | LED Indicator | | Dimensions | 1.6 x 5.0 x 6.3" / 4.0 x 12.7 x 16.0 cm | | Weight | 2.0 lb / 907.2 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
