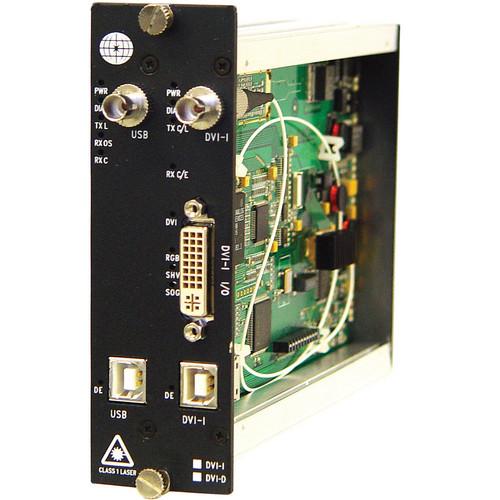

User Manual for Meridian Technologies DT-1RG1Q2A 1Q2A-0 KVM Digitally-Encoded Transmitter System Click to enlarge the picture
Contents of the user manual for the Meridian Technologies DT-1RG1Q2A 1Q2A-0 KVM Digitally-Encoded
- Product category: KVM Extenders Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies KVM Extenders
|
User manual for the Meridian Technologies DT-1RG1Q2A 1Q2A-0 KVM Digitally-Encoded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies DT-1RG1Q2A/1Q2A-0 KVM Digitally-Encoded Transmitter System is a state-of-the-art, cost-effective, high performance Video/USB/Audio/Keyboard/Mouse transmission system which transmits DVI, RGBHV, or RGsB signals over fiber optic channel. The system also transmits and keyboard, mouse, and 2-channel audio data over USB interfaces.
The USB interface connects directly to a standard USB 2.0 port on your computer and provides a 4-port USB 2.0 hub on the receiver's side. The supplied video adapter allow easy interface to standard VGA connectors on computers and monitors. The DT-1RG1Q2A/1Q2A-0 provides real-time, digitized transmission, making it the ideal solution for dynamic video signals with crystal clear video and no color pixel skewing. - Digital transmitter of DVI, RGBHV, RGsB, USB 2.0, stereo audio, keyboard and mouse over dual multimode optical fiber channel.
- Comes equipped with a USB 2.0 extender which can be configured as a 4-port hub or 3-port hub with 2-channel 16-bit audio.
- Supports VGA, SVGA, SGA, SXGA & USGA formats.
- HDTV resolutions of 480p, 720p, 1080i, and 1080p.
- Video I/O format conversion between RGBHV, DVI and RGsB.
- Uses all-digital processing for crystal-clear signals and no color skewing.
- No video compression, real-time video transmitter for exceptional quality and resolution.
- Requires no adjustments, equalization or deskewing.
- Standard DVI-I connector with adapter included for start VGA/RGB interface.
- USB 2.0 4-port hub for keyboard, mouse, external HDD and other USB peripheral devices.
- Wide optical dynamic range eliminates the need for attenuators.
- Multimode laser based system.
In the Box Meridian Technologies DT-1RG1Q2A/1Q2A-0 KVM Digitally-Encoded Transmitter System 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DT-1RG1Q2A 1Q2A-0 KVM Digitally-Encoded Transmitter System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-1RG1Q2A/1Q2A-0 Specs | | | Ports | Transmitter:
1 x DVI-I (Input)
1 x 3.5 mm Audio (Input)
1 x HD15 VGA (Input)
1 x USB Type-B USB 2.0 (Input) | | Supported Resolutions | 1600 x 1200
640 x 480 | | Transmission Method | Multimode Cable | | Video Channel | 1-Channel | | | | Operating Temperature | 14 to 122°F / 10 to 50°C | | Storage Temperature | 67 to 185°F / 55 to 85°C | | | | Status Monitoring | LED Indicator | | Dimensions | 1.6 x 5.0 x 6.3" / 4.0 x 12.7 x 16.0 cm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 3.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
