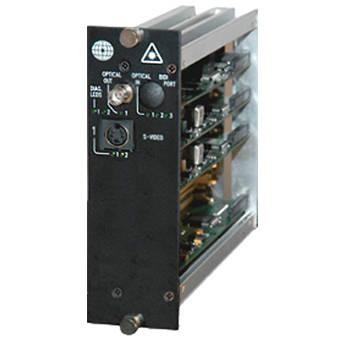

User Manual for Meridian Technologies DT-1S-1 Fiber Transmission System Click to enlarge the picture
Contents of the user manual for the Meridian Technologies DT-1S-1 Fiber Transmission System
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies DT-1S-1 Fiber Transmission System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The DT-1S-1 Fiber Transmission System (Transmitter) from Meridian Technologies supports one 10-bit S-video signal on one fiber-optic cable. This model uses multimode fiber. It is well-suited for use in security & surveillance work, campus lecture networks, and pro audio-video work, among many other applications and settings. The card is enhanced by SpectraSmart, an optional PC-based network diagnostic system. The DigiFlex product family is available as rack mount cards and modules that can be installed in any of Meridian's desk chassis or in 19" racking frames. This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. This system can be transformed in to a standalone module by using the SR-1000/S chassis. - The card supports one 10-bit S-video signal on a single fiber
- This model is a laser-based system that uses multimode fiber
- This model uses ST or FC fiber connectors
- This system supports real-time video transmission
- It offers 7MHz of bandwidth
- A wide optical dynamic range eliminates the need for optical attenuators
- This solution is designed to be reliable and repeatable
- It includes the SpectraSmart PC-based network-management tool
- Local LED indicators provide visual cues for system status
- System diagnostics are available for performance parameters
- The card is hot-swappable
- The laser features biased photo-detector circuitry for stable optical output over the full temperature range
- It conforms with EIA RS-170 and RS-343A formats
In the Box Meridian Technologies DT-1S-1 Fiber Transmission System (Transmitter) Ten-Year Warranty Against Defects in Material & Workmanship (from Original Date of Shipment) Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DT-1S-1 Fiber Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-1S-1 Specs | Video | Format: NTSC
Voltage/Impedance: 1Vp-p, 75 Ohm, 1.5Vp-p maximum
Bandwidth: 5Hz to 6.8MHz @ -3 dB
Differential Gain: <0.6%
Differential Phase: <0.3 degrees
SNR: >67 dB (weighted)
Return Loss: >30 dB
Field Tilt: < 0.5% | | Optical | Fiber Type/Size (um): Multimode (FP Laser) 9/125
Optical Output (dBm): -3
Receiver Sensitivity (dBm): -22
Optical Budget (dB): 19
Wavelength (nm): 0310
Optical Connector: ST
Optical Dynamic Range (dB): 22
Fiber Data Rate: 500Mbps | | Data | Formats: RS-485, RS-422, RS-232
Data Rate RS-422/485: DC to 1Mbps
Data Rate RS-232: DC to 125Kbps
Bit Error Rate: 10-9 | | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST
Data: DB9 female | | Indicators | (1) Green: Power On
(1) Bi-Color: TX Carrier/ Laser Over Current
(1) Bi-Color: RX Carrier - Present / Error
(1) Green: RX optical signal - Present / Absent
(1) Bi-Color: Video Present / Overload
(1) Green: Video Sync Present
(1) Green: Data Present | | Life | >120,000 hours @ Ground Fix
35C degrees per MIL217F | | Power | 8W | | Dimensions (HxWxD) | 0.8 x 6.3 x 5" (44 x 160 x 127mm)
(1) slot | | Weight | 1 lbs (0.45kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
