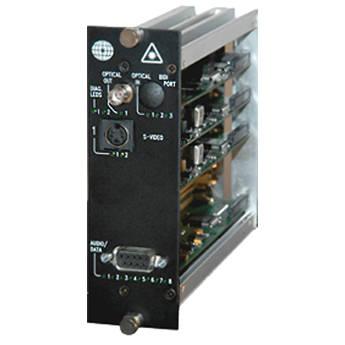

Product description The Meridian Technologies DT-1S2A-3 Singlemode 10-Bit S-Video Transmitter incorporates digital encoding technology with fiber optics. The module transmits (1) real-time, simplex 10-bit S-Video NTSC signal, along with (2) simplex channels of 24-bit quality audio over one optical fiber channel, for a distance up to.
Enhanced functionality includes compatibility with Meridian's PC based SpectraSmart software system. SpectraSmart supervises the operating parameters of the transmission system such as the status on video levels, sync, digital carrier detect, voltages, temperatures, and optical levels. - 10-Bit video digital encoding.
- Real-time S-Video and audio transmission.
- Meets RS-250C short haul transmission specifications.
- NTSC video signal compatible.
- Real-time 2-channel 24-bit audio.
- Wide optical dynamic range eliminates the need for optical attenuators.
- Laser based systems for multimode and singlemode.
- Surface mount technology (SMT) for high reliability and repeatability.
- SpectraSmart network management compatible.
- Local LED status indicators to monitor critical system diagnostics for performance parameters
- ST, FC optical connector.
- Laser back photo detector circuitry for stable optical output over full temperature range.
- Meets EIA RS-170, RS-343A formats.
In the Box Meridian Technologies DT-1S2A-3 Singlemode 10-Bit S-Video Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DT-1S2A-3 Singlemode 10-Bit S-Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-1S2A-3ST Specs | Signal System | NTSC | | Inputs/Outputs | S-Video: 4-Pin Mini DIN
Analog Audio: 9-Pin DSub
Optical | | LED Indicators | Power On: Green
TX Carrier/Laser Over Current: Bi-Color
RX Carrier-Present/Error: B-Color
RX Optical Signal Present/Absent: Green
Video Present/Overload: Bi-Color
Audio Overload: Red
Audio Present: Green | | Data Rate | 500Mbps | | Operating Temperature | -40-165.2°F (-40-74°C) | | Storage Temperature | -67-185°F (-55-85°C) | | Power Requirements | Not Specified By Manufacturer | | Power Consumption | 8W | | Dimensions (WxHxD) | 0.8 x 6.3 x 5" (4.4 x 16 x 12.7cm) | | Weight | 1 lbs (0.5kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
