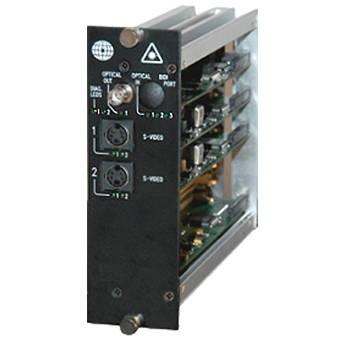

Product description The DT-2S-1 Fiber Transmission System (Transmitter) from Meridian Technologies supports two 10-bit S-video signals on one fiber-optic cable. This model uses multimode fiber. It is well-suited for use in security & surveillance work, campus lecture networks, and pro audio-video work, among many other applications and settings. The card is enhanced by SpectraSmart, an optional PC based network diagnostic system. The DigiFlex product family is available as rack mount cards and modules that can be installed in any of Meridian's desk chassis or in 19" racking frames. This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. This system can be transformed into a standalone module by using the SR-1000/S chassis. - The card supports two 10-bit S-video signals on a single fiber
- This model is a laser-based system that uses singlemode fiber
- This model uses ST fiber connectors
- This system supports real-time video transmission
- It offers 7MHz of bandwidth
- A wide optical dynamic range eliminates the need for optical attenuators
- This solution is designed to be reliable and repeatable
- It includes the SpectraSmart PC-based network-management tool
- Local LED indicators provide visual cues for system status
- System diagnostics are available for performance parameters
- The card is hot-swappable
- The laser features biased photo-detector circuitry for stable optical output over the full temperature range
- It conforms with EIA RS-170 and RS-343A formats
In the Box Meridian Technologies DT-2S-1 Fiber Transmission System (Transmitter) Ten-Year Warranty Against Defects in Material & Workmanship (from Original Date of Shipment) Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies DT-2S-1 Fiber Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies DT-2S-1 Specs | Video | Format: NTSC
Voltage/Impedance: 1Vp-p, 75 Ohm, 1.5Vp-p maximum
Bandwidth: 5Hz to 6.8MHz @ -3 dB
Differential Gain: <0.6%
Differential Phase: <0.3 degrees
SNR: >67 dB (weighted)
Return Loss: >30 dB
Field Tilt: < 0.5% | | Optical | Fiber Type/Size (um): Multimode (FP Laser) 9/125
Optical Output (dBm): -3
Receiver Sensitivity (dBm): -22
Optical Budget (dB): 19
Wavelength (nm): 1300
Optical Connector: ST
Optical Dynamic Range (dB): 22
Fiber Data Rate: 500Mbps | | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST
| | Indicators | (1) Green: Power On
(1) Bi-Color: TX Carrier/ Laser Over Current
(1) Bi-Color: RX Carrier - Present / Error
(1) Bi-Color: RX optical signal - Present / Absent
(1) Green: Sync. Present
(1) Bi-Color: Video Present / Overload | | Life | >120,000 hours @ Ground Fix
35C degrees per MIL217F | | Power | 8W | | Dimensions (HxWxD) | 0.8 x 6.5 x 5" (20 x 160 x 127mm)
(1) slot | | Weight | 1 lbs (0.45kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
