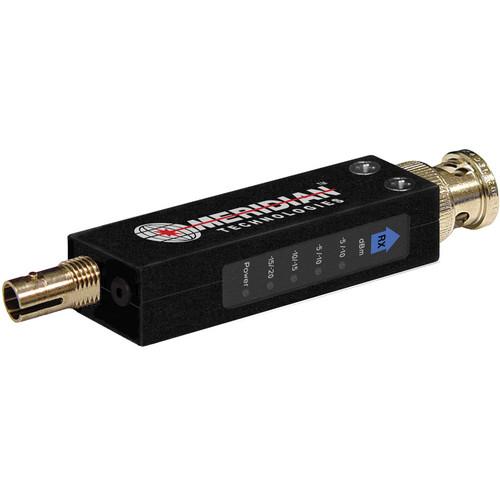

Product description The Meridian Technologies MR-HG-3FC Digitally Encoded Multi-rate 3G-SDI Receiver is a reliable, cost effective digital video converter that receives fiber optic signals and decodes them to 3G-SDI. This module has the ability to receive (1) signal using the SM (Singlemode) fiber optic connector and is compatible with HD-SDI signals as well.
Features include real-time uncompressed reception for up to more than 18 miles (30km) with support for multiple SMPTE formats. The small size can easily fit on the back of a camera. The system is ideal for a wide variety of video applications, including remote broadcast camera links, sporting events, media feeds, video production studios, and military information displays. - Reception of multi-rate 3G-SDI and HD-SDI (19 Mbps to 2.97 Gbps).
- Receives real-time, uncompressed video transmissions over fiber optical cable.
- Supports both singlemode and multimode fiber.
- Error-free pathological pattern performance.
- Supports embedded audio and metadata.
- Range in excess of 18.6 miles (30km).
- 5VDC Power Pack or USB hub.
- Wide dynamic range eliminates the need for optical attenuators.
- Optional rack mount card unit.
- Available with ST and FC optical connectors.
- Requires no user adjustments.
- CWDM lasers available for 16-channel MUX over one fiber.
- LED Indicators for:
-
- Power
- Rx Optical Power
- Tx Video Signal Present
- Laser Over Current
- Supports The Following Formats:
-
- 19.4 Mbps (SMPTE 310M)
- 143 To 540 Mbps SMPTE 259M/344M
- 1.5Gbps SMPTE 292M HDTV
- DVB/ASI at 270 Mbps
- 2.97 Gbps (3G) SMPTE 424M
- SMPTE 305M SDTI Rates
In the Box Meridian Technologies MR-HG-3FC Digitally Encoded Multi-rate 3G-SDI Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies MR-HG-3FC Digitally Encoded Multi-rate 3G-SDI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies MR-HG-3FC Specs | Format | NTSC | | Bandwidth | 19Mbps-3Gbps | | Return Loss | >15dB | | Inputs/Outputs | 3G-SDI: BNC (x1 Output)
ST, FC: SM Optical (x1 Input) | | Operating Temperature | -13-329.4°F (-25-60°C) | | Storage Temperature | -67-185°F (-55-85°C) | | Power Requirements | 5VDC | | Power Consumption | 500mW | | Dimensions (LxWxH) | 3 x 0.8 x 6" (7.6 x 1.9 x 1.5cm) | | Weight | 1.5oz (42 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
