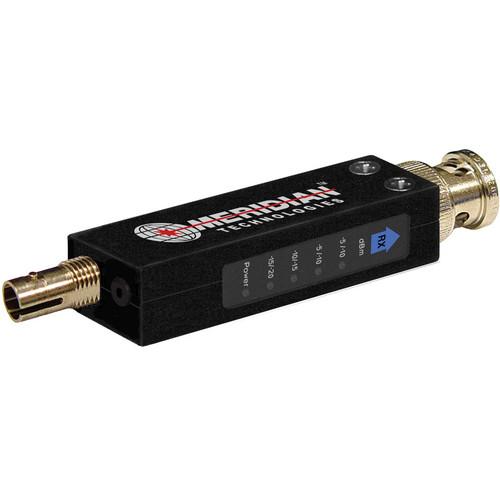

User Manual for Meridian Technologies MT-HG-1 3G HD-SDI Multimode Fiber Channel 3G-SDI Video Transmitter Click to enlarge the picture
Contents of the user manual for the Meridian Technologies MT-HG-1 3G HD-SDI Multimode
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies MT-HG-1 3G HD-SDI Multimode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies MT-HG-1 3G/HD-SDI Multimode Fiber Channel 3G-SDI Video Transmitter is a digital video transmitter designed to work with a wide range of industry standard SMPTE video protocols. The unit transmits real-time video from SDI (Serial Digital Interface) and pushes it to fiber optic cable.
By using high-performance technologies, no user adjustments are required, ensuring fast deployment and setup with broadcast quality results. The device can be used for remote broadcast camera links, sporting events, media feeds, video production studios, and military information display applications. - Compatible with multi-rate SDI, HD-SDI, 3G-SDI.
- Real-time, uncompressed video transmission.
- Supports multimode fiber.
- Error free pathological pattern performance.
- Small Tx easily mounts on back of cameras.
- Supports embedded audio and metadata.
- Distances in excess of 30km.
- 5VDC power pack or USB hub.
- Wide dynamic range eliminates the need for optical attenuators.
- Optional rackmount card unit.
- Available with ST and FC optical connectors.
- Requires no user adjustments.
- CWDM lasers available for 16-channel MUSX over one fiber.
- Supports the following formats
- 19.4 Mbps (SMPTE 310M)
- 143 To 540 Mbps SMPTE 259M/344M
- 1.5 Gbps SMPTE 292M HDTV
- DVB/ASI at 270 Mbps
- 2.97 Gbps (3G) SMPTE 424M
- SMPTE 305M SDTI Rates
- LED Indicators for
- Power
- Rx Optical Power
- Tx Video Signal Present
- Laser Over Current
In the Box Meridian Technologies MT-HG-1 3G/HD-SDI Multimode Fiber Channel 3G-SDI Video Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies MT-HG-1 3G HD-SDI Multimode Fiber Channel 3G-SDI Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies MT-HG-1 Specs | Supported Formats | SMPTE 310M
SMPTE 259M/344M
SMPTE 292M
SMPTE 424M
SMPTE 305M | | Mode | Multimode (1300nm) | | LED Indicators | Power
Optical
Tx Video Signal Present
Laser Over Current | | Inputs/Outputs | BNC
ST,FC Fiber Optical | | Operating Temperature | -13-140°F (-25-60°C) | | Storage Temperature | -67-185°F (-55-85°C) | | Power Requirements | 5VDC | | Power Consumption | 500mW | | Dimensions (WxHxD) | 0.8 x 0.6 x 3" (1.9 x 1.5 x 7.6cm) | | Weight | 1.5 oz (42 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 2.0 x 2.0 x 2.0" |
