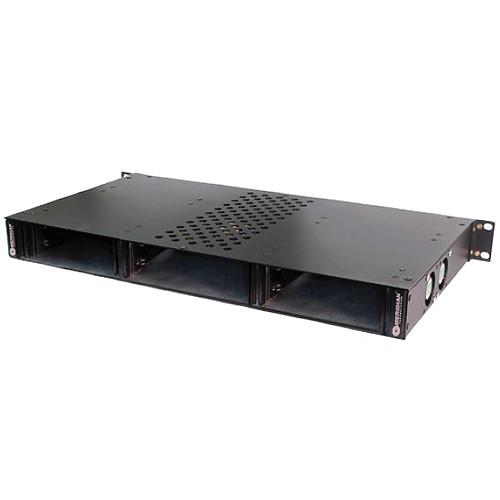

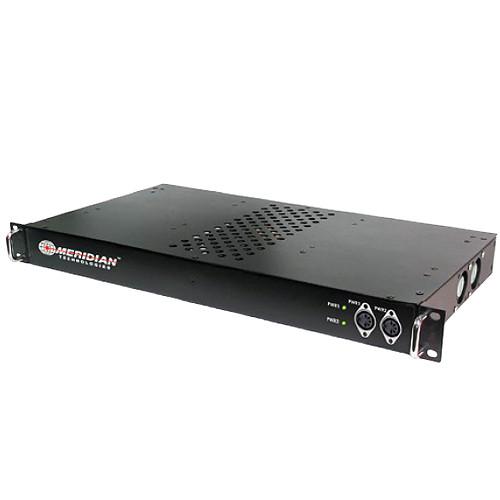

Product description The Meridian Technologies SR-1600/R 1 RU Rack Mount Chassis is a universal 1U high subrack that accepts all fiber optic transmission cards from Meridian Technologies. It is a standard EIA chassis frame that houses DigiSlim, DigiCool, and DigiFlex Fiber Optic Transmission Rack-Mount Cards (sold separately).Up to 6 single-slot or 3 dual-slot cards can be accommodated in the chassis. The signal cards are all hot-swappable. Therefore, the cards can be inserted or removed without removing power to the chassis.The unit is made of precision-extruded aluminum components and utilizes external 110/120VAC power supplies. Cards utilize a rear insertion procedure. Reversible rack mounting ears are provided for either front or rear access to cards. The chassis features built-in low-noise fans for enhanced cooling and reliability.The SR-1600/R Chassis with redundant power supplies operates in a power-sharing mode so that both supplies are continuously operating and evenly share the load. If one supply were to lose power, the redundant supply is able to pick up the load without any interruption of service. Because a reliable power supply is a crucial part of business survival, this type of structure is suitable for any operation where power failure cannot be tolerated. Meridian's utilization of N+1 power is an efficient and cost-effective way to achieve the high level of reliability required in today's business environment. - Accepts 6 single-slot cards or 3 dual-slot cards
- External (110/220VAC) power supplies
- Front panel power supply status indicator lights
- Built-in quiet, side-mounted fans for enhanced thermal management
- Standard EIA 19" 1U (1.75") chassis configuration
- Applications: Security and surveillance, campus educational networks, military communications, industrial process controls, video teleconferencing, intelligent transportation system, nuclear power plants, hospitals, schools, universities, airports, subways, highways, tunnels, bridges, audio video & broadcast
In the Box Meridian Technologies SR-1600/R 19" 1 RU Universal Subrack Chassis with 6 Card Slots & Redundant Power Supplies 2 x Standard Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SR-1600 R 19" 1 RU Universal Subrack Chassis with 6 Card Slots & Redundant Power Supplies in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-1600 Specs | Power | Dual: Approximately 87 to 264 VAC
Maximum: 60 W | | Number of Power Supplies | 2 | | Number of Modules | Slots
Single: 6
Dual: 3 | | Voltage | Single or Dual: 110/220 VAC, 50/60 Hz | | Connector | Standard IEC female, panel mount | | MTBF | >260,000 hours @ Ground Fixed 95°F (35°C) per MIL217F | | Indicators | LEDs
Front panel mounted 2 green indicator lights
1x Green: Power 1 On
1x Green: Power 2 On | | Operating Temperature | -40 to 165.2°F (-40 to + 74°C) | | Storage Temperature | -58 to 185°F (-50 to +85°C) | | Relative Humidity | 0 to 95% non-condensing | | Dimensions (LxHxD) | 19.00 x 1.75 x 12.67" (483 x 45 x 322 mm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 20.0 x 7.0 x 6.0" |
