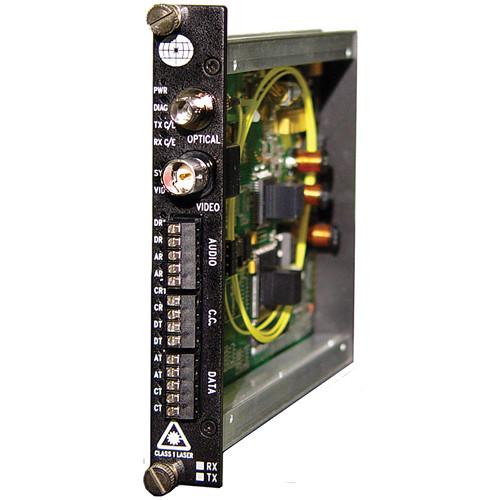

User Manual for Meridian Technologies SR-1W2A-1 Fiber Transmission System Click to enlarge the picture
Contents of the user manual for the Meridian Technologies SR-1W2A-1 Fiber Transmission System
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies SR-1W2A-1 Fiber Transmission System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The SR-1W2A-1 Fiber Transmission System (Reciever) from Meridian Technologies incorporates an all-digital encoding technology that transmits one real-time, simplex 10-bit video channel and two 24-bit audio channels in one direction over one optical fiber. This model uses multimode fiber. It is well suited for use in intelligent transportation systems, security & surveillance work, access control, among many other applications and settings.NTSC, PAL and SECAM video formats are seamlessly supported. It uses 3-pin terminal blocks for audio channel interfaces. The SC series is also compatible with Meridian's SpectraSmart Network management and diagnostic PC-based system. The DigiSlim product family is available as rack mount cards and modules that can be installed in any of Meridian's desk chassis or in 19" racking frames. This system can be configured in either star (module to rack) or trunking (rack to rack) configurations. These systems can be transformed in to a standalone module by using SR-500/S (standard configuration) or SR-1000/S frames. - This model is a laser-based system that uses multimode fiber
- This model uses ST fiber connectors
- It features 10-bit native digital encoding
- This system supports real-time video and audio transmission
- It offers 7MHz of bandwidth
- The card supports NTSC, PAL, and SECAM standards
- A wide optical dynamic range eliminates the need for optical attenuators
- This solution is designed to be reliable and repeatable
- Local LED indicators provide visual cues for system status
- System diagnostics are available for performance parameters
- The card is hot-swappable
- The laser features biased photo-detector circuitry for stable optical output over the full temperature range
- The video connector is a 75-Ohm BNC with gold-center pin
- It conforms with EIA RS-170 and RS-343A formats
- Screw terminals are available for audio
In the Box Meridian Technologies SR-1W2A-1 Fiber Transmission System (Receiver) Ten-Year Warranty Against Defects in Material & Workmanship (from Original Date of Shipment) Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SR-1W2A-1 Fiber Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-1W2A-1 Specs | Video | Format: NTSC, PAL, SECAM
Voltage/Impedance: 1Vp-p, 75 Ohm, 1.5Vp-p maximum
Bandwidth: 5Hz to 6.8MHz @ -3 dB
Differential Gain: <0.6%
Differential Phase: <0.3 degrees
SNR: >67 dB (weighted)
Return Loss: >30 dB
Field Tilt: < 0.5% | | Audio | I/O Impedance: 600 Ohm (Balanced), 47 kOhm (Unbalanced)
Frequency Response: 10Hz to 20KHz
SNR: >90dB (Weighted) @ 1KHz
In/Out Level: -8 to +8dBm (4Vp-p max.)
Total Harmonic Distortion: <0.01% @ 1KHz
Resolution: <0.01% | | Optical | Fiber Type/Size (um): Multimode (FP Laser) 9/125
Optical Output (dBm): -5
Receiver Sensitivity (dBm): -26
Optical Budget (dB): 21
Wavelength (nm): 1300/850
Optical Connector: ST
Optical Dynamic Range (dB): 24
Fiber Data Rate: 250Mbps | | Contact Closure | Rate: 10Hz (Per Channel)
Contact Rating: 0.3A, 30VAC/DC
Contact Bounce Time: 5ms | | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST
Audio/Contact Closures: 14-pin Screw Terminals | | Indicators | (1) Green: Power On
(1) Bi-Color: TX Carrier/ Laser Over Current
(1) Bi-Color: RX Carrier - Present / Error
(1) Bi-Color: Video Present / Overload
(1) Green: Sync. Present
(1) Bi-Color: Audio Present / Overmodulation
(1) Green: Contact Closure Present | | Life | >170,000 hours @ Ground Fix
35C degrees per MIL217F | | Power | 6W | | Dimensions (HxWxD) | 0.8 x 6.5 x 5" (20 x 160 x 127mm)
(1) slot | | Weight | 1 lbs (0.45kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
