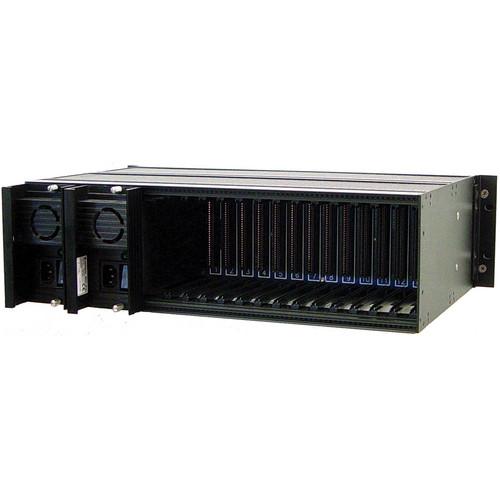

User Manual for Meridian Technologies SR-2001 AR1 19" Universal Subrack Frame Click to enlarge the picture
Contents of the user manual for the Meridian Technologies SR-2001 AR1 19" Universal
- Product category: DA & Extender/Repeater Accessories Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies DA & Extender/Repeater Accessories
|
User manual for the Meridian Technologies SR-2001 AR1 19" Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies SR-2001/AR1 is a 19" Universal Subrack Frame designed to house up to 14 fiber optic transmission card units. The body is constructed out of high-grade aluminum and features (2) redundant power supplies configured to avoid power malfunction or failure. The system is both front and rear loading and can fit in any standard 19" EIA racking system. Additionally, the unit comes equipped with reversible mounting ears and can be configured to hold up to 18 cards. - Accommodates 14 Cards with (2) power supplies, providing added protection against power malfunction and failure. The unit can also be configured to house 18 cards when using just one power supply.
- The SR-2001/AR1 can be used in both 110VAC and 220VAC regions of the world, drawing 100W of power.
- Comes equipped with reversible mounting ears and has both front and rear loading capability.
- The frame can be mounted in any standard EIA 19" racking system.
In the Box Meridian Technologies SR-2001/AR1 19" Universal Subrack Frame 2 x 110/220VAC Switching Power Supply 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SR-2001 AR1 19" Universal Subrack Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-2001/AR1 Specs | Application | Security and Surveillance
Campus Educational Networks
Military Communications
Industrial Process Controls
RGB to the Desk
Video Teleconferencing
Intelligent Transportation System
Nuclear Power Plants
Hospitals, Schools, Universities
Airports, Subways, Highways, Tunnels, Bridges
Oil Refineries, Rigs and Platforms
SCADA | | Operating Temperature | -40-165.2°F (-40-74°C) | | Storage Temperature | -58-185°F (-50-85°C) | | Power Requirements | 87-264VAC | | Power Consumption | 100W | | Dimensions (WxHxD) | 19 x 5.2 x 12.7" (48.3 x 13.3 x 32.2cm) | | Weight | 9 lbs (4kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 8.0" |
