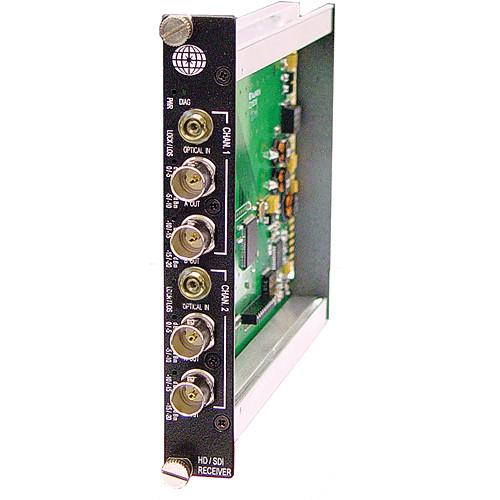

Product description The Meridian Technologies SR-2HG-3FC 2-Channel SM/FC Fiber to 3G-SDI DigiView Receiver is designed to be used in conjunction with a desk and shelf-mount chassis, as well as in any standard 19" racking system. The unit functions as a conduit to extend the range of HD-SDI and SD-SDI video signals through the use of fiber optic cables. The card can receive (2) SM/FC fiber optic signals and decode them to either 3G-SDI or HD-SDI for direct output.
Features include real-time uncompressed reception for up to more than 15 miles (25km) with support for multiple SMPTE formats. The small size can easily fit on the back of a camera. The system is ideal for a wide variety of video applications, including remote broadcast camera links, sporting events, media feeds, video production studios, and military information displays. - Transmission of multi-rate 3G-SDI and HD-SDI (19 Mbps to 2.97 Gbps) uncompressed video transmissions.
- Supports both singlemode and multimode fiber.
- Error-free pathological pattern performance.
- Supports embedded audio and metadata.
- Range in excess of 15.5 miles (25km).
- 5VDC Power Pack or USB hub.
- Wide dynamic range eliminates the need for optical attenuators.
- Optional rack mount card unit.
- Available with ST and FC optical connectors.
- Requires no user adjustments.
- CWDM lasers available for 16-channel MUX over one fiber.
- LED Indicators for:
-
- Power
- Rx Optical Power
- Tx Video Signal Present
- Laser Over Current
- Supports The Following Formats:
-
- 19.4 Mbps (SMPTE 310M)
- 143 To 540 Mbps SMPTE 259M/344M
- 1.5 Gbps SMPTE 292M HDTV
- DVB/ASI at 270 Mbps
- SMPTE 305M SDTI Rates
- 2.97 Gbps (3G) SMPTE 424M
In the Box Meridian Technologies SR-2HG-3FC 2-Channel SM/FC 3G-SDI DigiView Receiver 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SR-2HG-3FC 2-Channel SM FC 3G-SDI DigiView Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-2HG-3FC Specs | Format | NTSC | | Bandwidth | 19Mbps-2.97Gbps | | Return Loss | >15dB | | Inputs/Outputs | HD-SDI: BNC (x2 Output)
ST, FC: SM Optical (x2 Input) | | Operating Temperature | -13-140°F (-25-60°C) | | Storage Temperature | -67-185°F (-55-85°C) | | Power Requirements | Supplied by Multiplexer | | Power Consumption | 3W | | Dimensions (LxWxH) | 6.3 x 5 x 0.8" (16 x 12.7 x 0.8") | | Weight | 1 lbs (0.5kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
