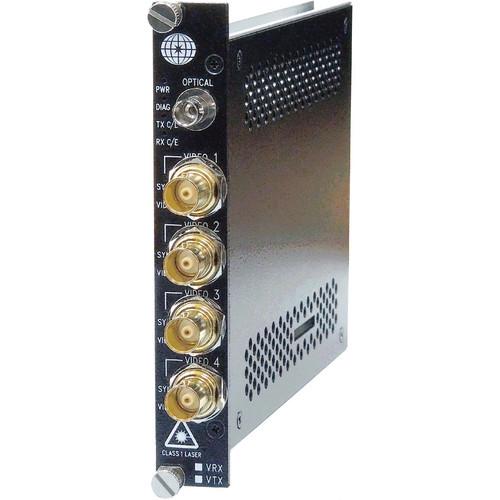

User Manual for Meridian Technologies SR-4HD-51 57ST 4-Channel Multi-Rate SDI HD-SDI Video Receiver Click to enlarge the picture
Contents of the user manual for the Meridian Technologies SR-4HD-51 57ST 4-Channel Multi-Rate
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies SR-4HD-51 57ST 4-Channel Multi-Rate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies SR-4HD-51/57ST 4-Channel Multi-Rate SDI/HD-SDI Video Receiver from the ST/SR-4HD-CWDM DigiView transmitter and receiver system series, receives 4 channels of real-time SDI/HD-SDI video signals over 1 single-mode fiber via an ST optical connector. Using CWDM (Coarse Wavelength Division Multiplexing) technology, the content details of each video channel are preserved by real-time reception of each video channel in a compact card format. The SR-4HD-51/57ST digital video receiver and the ST-4HD-CWDM transmitter (sold separately) when used together, provide broadcast-quality transmission of the industry-standard range of digital video data rates. No user adjustments are required, ensuring fast deployment and setup with broadcast-quality results. The entire electrical and optical subsystems are housed in a standard Meridian 1-slot card design for mounting in any venue, particularly in areas with space constraints. - Receives multi-rate SDI/HD-SDI video signals over 1 single-mode fiber
- Real-time and uncompressed video reception
- Supports the Following Formats:
SMPTE 310M (19.4 Mbps), SMPTE 259M/344M (143 to 540 Mbps), SMPTE 292M HDTV (1.485 Gbps), DVB-ASI (270 Mbps), and SMPTE 305M (SDTI rates) - Error-free pathological pattern performance
- Supports embedded audio and metadata
- Receives transmission at distances >18.64 mi (30 km)
- Wide Dynamic Range eliminates the need for optical attenuators
- Requires no user adjustments
- Applications include remote broadcast camera links, sporting events and concerts, media feeds, video production, studio to studio and headend feeds, military information displays, and video transport systems
In the Box Meridian Technologies SR-4HD-51/57ST 4-Channel Multi-Rate SDI/HD-SDI Video Receiver 10-Year Limited Warranty on Receiver 5-Year Warranty on Optical Connector Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies SR-4HD-51 57ST 4-Channel Multi-Rate SDI HD-SDI Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies SR-4HD-51-57ST Specs | Formats | SMPTE 310M (19.4 Mbps)
SMPTE 259M/344M (143 To 540 Mbps)
SMPTE 292M HDTV (1.485 Gbps)
DVB-ASI (270 Mbps)
SMPTE 305M (SDTI rates) | | Nominal Level | 0.8 Vpp
Maximum: 1 Vpp | | Data Rate | 19 Mbps to 1.5 Gbps per channel | | Impedance | 75 Ω | | Gain | Unity | | Coupling | Input: AC | | Return Loss | >15 dB | | Jitter | Pattological Data Pattern: <0.2 UI | | Cable Equalization | Automatic: 0 to 656.17' (0 to 200 m) @ 1.5 Gbps | | Bit Error Rate | 10-12 (0 to -20 dBm) | | Connectors | Video: 75 Ω BNC (gold center pin)
Optical: ST | | Wavelength | Channel 1: 1510 nm
Channel 2: 1530 nm
Channel 3: 1550 nm
Channel 4: 1570 nm | | Output Power | 3 dBm per channel | | LED Indicators | Green
1: Power on
4: Level 0 / -10 dBm
4: Level -10 / -20 dBm | | MTBF | >170,000 hours @ ground fix 95°F (35°C) per MIL217F | | Number of Slots | 1 | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -67 to 185°F (-55 to 85°C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions (L x W x D) | Card: 6.3 x 5 x 0.8" (160 x 127 x 20 mm) | | Weight | Card: 16 oz (450 g) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 7.0 x 3.0 x 2.0" |
