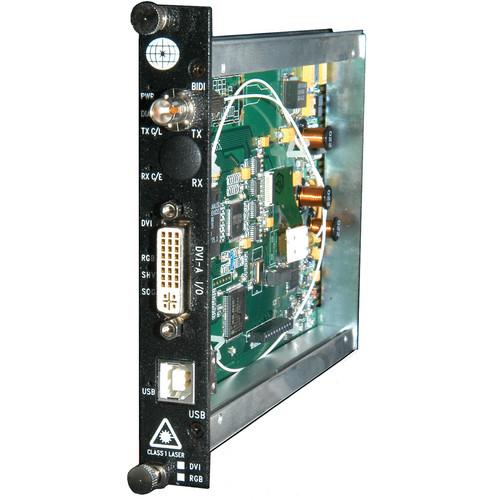

User Manual for Meridian Technologies ST-1RG-0 Digitally Encoded DVI RGB Fiber System Transmitter Click to enlarge the picture
Contents of the user manual for the Meridian Technologies ST-1RG-0 Digitally Encoded DVI
- Product category: KVM Extenders Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies KVM Extenders
|
User manual for the Meridian Technologies ST-1RG-0 Digitally Encoded DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The Meridian Technologies ST-1RG-0 is a Digitally Encoded DVI/RGB Fiber System Transmitter. The card is designed to transmit DVI/RGB video signals, including 2-channel 24-bit audio, over fiber optic cable. Through the use of fiber optics, video signals can traverse large distances. The ST-1RG-0 facilitates this through the use of Meridian's line of fiber optics transmission systems.
Because it transmits signals in real-time, no video information is lost and is a perfect solution for dynamic video signals with crystal clear video and no color pixel skewing. Applications include courtrooms, medical and MRI displays, air traffic control, military information displays, stock exchanges, live event video displays, and video walls. - Digital transmission of DVI, RGBHV, RGsB over one multimode fiber.
- Supports VGA, SVGA, XGA, SXGA, and UXGA formats.
- HDTV resolutions of 480p, 720p, and 1080i (RGB/DVI).
- Horizontal and vertical sync frequency range of 30-130kHz and 60-150Hz.
- Uses all-digital processing for crystal-clear signals and no color skewing.
- Real-time video transmission for exceptional quality and resolution with no video compression
- Requires no adjustments, equalization or de-skewing during setup.
- Data throughput in excess of 6 Gbps uncompressed, where as most systems have 1.25Gbps throughput with significant compression.
- Data display channel is optional.
- Standard DVI-I video connector with dongle included for RGB interface.
- USB interface for remote monitor adjustments.
- Wide optical dynamic range eliminates the need for optical attenuators.
- Multimode laser based system.
- SpectraSmart network management compatible.
In the Box Meridian Technologies ST-1RG-0 Digitally Encoded DVI/RGB Fiber System Transmitter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies ST-1RG-0 Digitally Encoded DVI RGB Fiber System Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies ST-1RG-0 Specs | | | Ports | Transmitter:
1 x DVI-I (Input)
1 x HD15 RGB (Input)
1 x USB Type-B USB 2.0 (Input)
1 x Terminal Block Audio (Input) | | Supported Resolutions | 1600 x 1200
640 x 480 | | Maximum Transmission Distance | 3280.8' / 1 km | | Transmission Method | Multimode Cable | | Video Channel | 1-Channel | | Audio Channels Supported | 2-Channel Stereo (24-Bit) | | | | Operating Temperature | 14 to 122°F / 10 to 50°C | | Storage Temperature | 67 to 185°F / 55 to 85°C | | | | Status Monitoring | LED Indicator | | Dimensions | 1.6 x 5.0 x 6.3" / 4.0 x 12.7 x 16.0 cm | | Weight | 2.0 lb / 907.2 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
