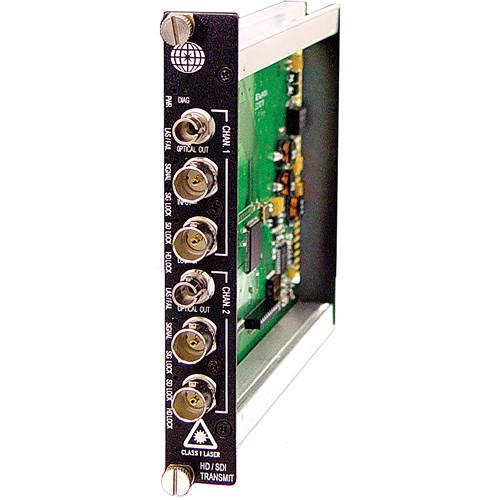

User Manual for Meridian Technologies ST-2HD-1 Fiber Transmission System Click to enlarge the picture
Contents of the user manual for the Meridian Technologies ST-2HD-1 Fiber Transmission System
- Product category: Video Extenders & Repeaters Meridian Technologies
- Brand: Meridian Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meridian Technologies Video Extenders & Repeaters
|
User manual for the Meridian Technologies ST-2HD-1 Fiber Transmission System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meridian Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meridian Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meridian Technologies product will considerably shorten its lifespan!
|
Product description The ST-2HD-1 Fiber Transmission System (Transmitter) from Meridian Technologies supports two channels of SMPTE 310M, 359M/3444M, 292M, 424M, and 305M compliant digital video one fiber. This model uses multimode fiber. It is well-suited for use in remote broadcast camera links, sporting events, media feed, video production, and information displays, among many other possible applications and settings.It supports the real-time transmission of video without compression. Reclocking supports retiming, reshaping, and regenerate functions. No user adjustments are required to use this device. The DigiView product family is available as rackmount cards and modules that can be installed in any Meridian's desk chassis or stand chassis, as well as in 3U, 19" racking frames. - The card is designed to support two channels of multi-rate SDI, HD-SDI and 3G-SDI signals
- This model uses multimode fiber
- It includes ST and FC fiber connectors
- It features a built-in reclocker
- This device supports real-time video transmission
- Supports the following formats :
- 19.4Mbps (SMPTE 310M)
- 143 To 540Mbps SMPTE 259M/344M
- 1.485Gbps SMPTE 292M HDTV
- DVB-ASI at 270Mbps
- 2.97Gbps (3G) SMPTE 424M
- SMPTE 305M SDTI rates
- This device offers error-free pathological pattern performance
- It is a rackmount card unit
- It supports embedded audio and metadata
- Transmission distances up to 18.64 (30km) are possible with this device
- LED indicators for are available for power, laser, reception, and transmission status
- A wide dynamic range eliminates the need for optical attenuators
- No user adjustments are required
- CWDM lasers are available for 16 channel MUX over one fiber
In the Box Meridian Technologies ST-2HD-1 Fiber Transmission System (Transmitter) Ten-Year Warranty Against Defects in Material & Workmanship (from Original Date of Shipment) Table of Contents
|
Upload User Manual
Have you got an user manual for the Meridian Technologies ST-2HD-1 Fiber Transmission System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeridian Technologies ST-2HD-1 Specs | Video | Formats:
19.4Mbps (SMPTE 310M)
143 To 540Mbps SMPTE 259M/344M
1.485Gbps SMPTE 292M HDTV
DVB-ASI at 270 Mbps
2.97Gbps (3G) SMPTE 424M
SMPTE 305M SDTI Rates
Nominal Level: 0.8Vp-p, 1.0Vp-p max.
Data Rate: 19Mbps to 1.5Gbps
Impedance: 75 Ohm
Gain: Unity
Input Coupling: AC
Return Loss: >15 dB
Jitter (Pathological Data Pattern): < 0.2 UI
Cable Equalization: Automatic 0 to 200m @ 1.5 Gbps
Bit-Error Rate (0 to -20dBm): 10 to 12 | | Optical | Fiber Type/Size (um): Multimode (FP Laser) 9/125
Optical Output (dBm): -3
Receiver Sensitivity (dBm): -22
Optical Budget (dB): 19
Wavelength (nm): 1300
Optical Connector: ST
Optical Dynamic Range (dB): 20
| | Connectors | Video: 75 Ohm BNC (Gold Center Pin)
Optical: ST
| | Indicators | (1) Green: Power On ( TX & RX )
(2) Red: Laser Over Current ( TX )
(8) Green: Signal Power Level ( RX )
(2) Green: Signal Present ( TX )
(2) Green: Signal Lock (TX)
(2) Green: SDI Present (TX)
(2) Green: HD-SDI Present (TX)
| | Life | >170,000 hours @ Ground Fix on Single Channel
35C degrees per MIL217F | | Power | 3W | | Dimensions (HxWxD) | 0.8 x 6.3 x 5" (20 x 160 x 127mm)
(1) slot | | Weight | 1 lbs (0.45kg) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 3.1" |
